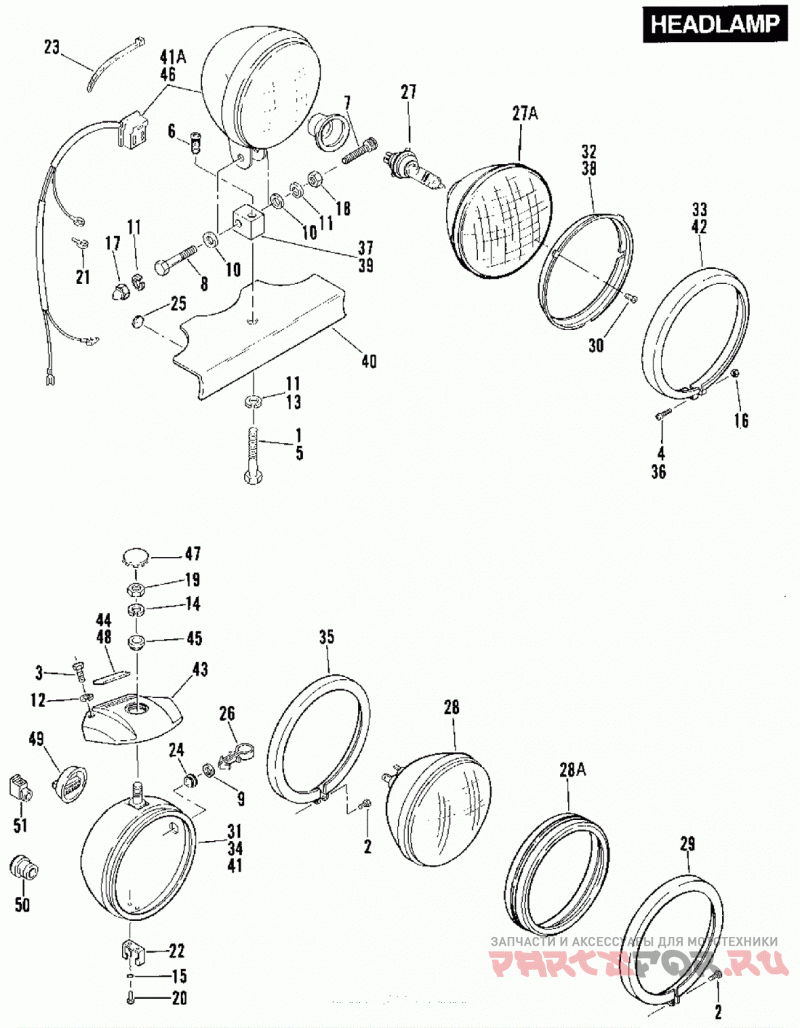

Фара

Harley Davidson FXRS-SP EGLN FXR Sport (1992)

Harley Davidson
#oem кодцена
2
1203
SCREW, No. 8-32 X 7/8 Pozidrivfillister hd. (Grade 2 steel)
3
2871W
BOLT, 5/16-18 X 1-1/4 hex. hd. (Grade 5 steel)
3
4017
BOLT, 5/16-18 X 1 hex. hd.(Grade 5 steel)
9
90869-85A
WASHER (not illustrated)
12
7041
LOCKWASHER, 5/16
14
7068
LOCKWASHER,1/2
15
7220
LOCKWASHER, No. 10 external tooth
19
7880
NUT, 1/2-13 X 7/16 X 3/4 hex.(Grade 2 steel)
22
9952
Зажим
26
56073-83
RETAINER, cable
27
68329-03
BULB, halogen HB2/H-4
27A
67698-81D
HEADLAMP halogen, w/ 11, 12, 14 & 19
67757-92
LENS only
28A
67719-63
MOUNTING RING
29
67725-63
MOLDING, outer
42
67790-82
TRIM RING (chrome)
67805-92
Держатель
45
67815-59A
Шайба
47
67865-89
PLUG, headlamp bracket
48
67834-83
TRIM, headlamp bracket
49
67839-74
BOOT, headlamp connector
51
72501-74
BUSHING, straight
52
72502-74
BUSHING, angle
