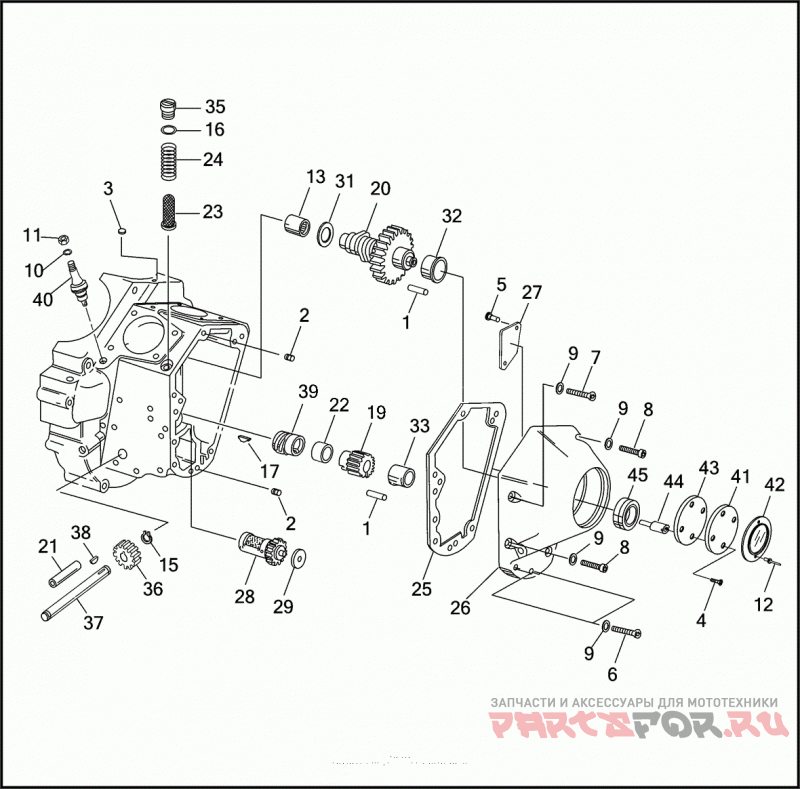

CRANKCASE - GEAR SIDE

Harley Davidson FXRP 1EDL SUPER GLIDE POLICE (WINDSHIELD) (1992)

Harley Davidson
#oem кодцена
1
275
Палец
2
358
Палец
3
653
PLUG CRANKCASE
4
1601
SCREW NO. 8-32 X 1/2 POZIDRIV FLAT COUNTERSINK HD. (GRADE 2)
5
2441
SCREW NO. 10-24 X 1/2 TORX PAN HD.
6
4718A
SCREW 1/4-20 X 1-1/2 KNURLED HD., W/LOCKPATCH
7
3480A
SCREW 1/4-20 X 1-3/4 KNURLED HD. (GRADE 8)
8
4813A
SCREW 1/4-20 X 1-3/8 KNURLED HD., W/LOCKPATCH
9
6099
WASHER 1/4 X 7/16 X 1/16
10
7069
LOCKWASHER NO. 10
11
7634
NUT NO. 10-32 X 1/8 X 5/16 (BRASS)
12
8699
RIVET IGNITION COVER
13
9058A
NEEDLE BEARING CRANKCASE CAM COVER
14
10046
CLAMP IGNITION WIRE (NOT ILLUSTRATED)
15
11002
RETAINING RING OIL PUMP DRIVE SHAFT
16
11105
Уплотнительное кольцо
17
11219
T-KEY
18
24022-90
NUT GEAR SHAFT (NOT ILLUSTRATED)
19
24040-90
PINION GEAR 1.4850-53 PD. (ORANGE)
19
24041-90
PINION GEAR 1.4846-49 PD. (WHITE)
19
24042-90
PINION GEAR 1.4842-45 PD. (YELLOW)
19
24043-90
PINION GEAR 1.4838-41 PD. (RED)
19
24044-90
PINION GEAR 1.4834-37 PD. (BLUE)
19
24045-90
PINION GEAR 1.4830-33 PD. (GREEN)
19
24046-90
PINION GEAR 1.4826-29 PD. (BLACK)
20
24583-92
SET OF CAM & PINION GEARS MATCHED
21
24641-36
BUSHING OIL PUMP SHAFT
22
24704-90
SPACER PINION GEAR SHAFT
23
24981-70
OIL SCREEN CRANKCASE
25
25225-70C
GASKET GEAR COVER
26
25258-80B
GEAR COVER W/ 5, 27, & 45
27
25275-82
COVER BREATHER VALVE
28
25310-82A
BREATHER VALVE GEAR
29
25320-82
THRUST WASHER BREATHER VALVE, 0.130 INCH THICK
29
25321-82
THRUST WASHER BREATHER VALVE, 0.135 INCH THICK
29
25322-82
THRUST WASHER BREATHER VALVE, 0.140 INCH THICK
29
25323-82
THRUST WASHER BREATHER VALVE, 0.145 INCH THICK
29
25325-82
THRUST WASHER BREATHER VALVE, 0.150 INCH THICK
29
25326-82
THRUST WASHER BREATHER VALVE, 0.155 INCH THICK
29
25327-82
THRUST WASHER BREATHER VALVE, 0.160 INCH THICK
29
25328-82
THRUST WASHER BREATHER VALVE, 0.165 INCH THICK
30
25550-57A
LOCKWASHER CAM GEAR (NOT ILLUSTRATED)
31
25555-84
THRUST WASHER CAM GEAR, 0.045 INCH THICK
31
25550-36
THRUST WASHER CAM GEAR, 0.050 INCH THICK
31
25551-36
THRUST WASHER CAM GEAR, 0.055 INCH THICK
31
25552-36
THRUST WASHER CAM GEAR, 0.060 INCH THICK
31
25553-36
THRUST WASHER CAM GEAR, 0.065 INCH THICK
31
25554-36
THRUST WASHER CAM GEAR, 0.070 INCH THICK
31
25555-36
THRUST WASHER CAM GEAR, 0.075 INCH THICK
31
25556-79
THRUST WASHER CAM GEAR, 0.080 INCH THICK
31
25557-79
THRUST WASHER CAM GEAR, 0.085 INCH THICK
31
25558-79
THRUST WASHER CAM GEAR, 0.090 INCH THICK
31
25559-79
THRUST WASHER CAM GEAR, 0.095 INCH THICK
32
25581-70
BUSHING GEAR COVER
33
25582-73
BUSHING GEAR COVER PINION SHAFT
35
26263-80
PLUG OIL SCREEN
36
26345-73
DRIVE GEAR OIL PUMP, 24T
37
26346-70
DRIVE SHAFT OIL PUMP
38
26348-15
KEY DRIVE SHAFT
39
26354-90
DRIVE GEAR OIL PUMP
40
26561-84
Датчик давления масла
41
32504-80A
COVER INNER
42
32524-83
TIMER COVER
43
32591-80
GASKET IGNITION COVER
44
32606-82
Винт
45
83162-51
OIL SEAL BEARING
