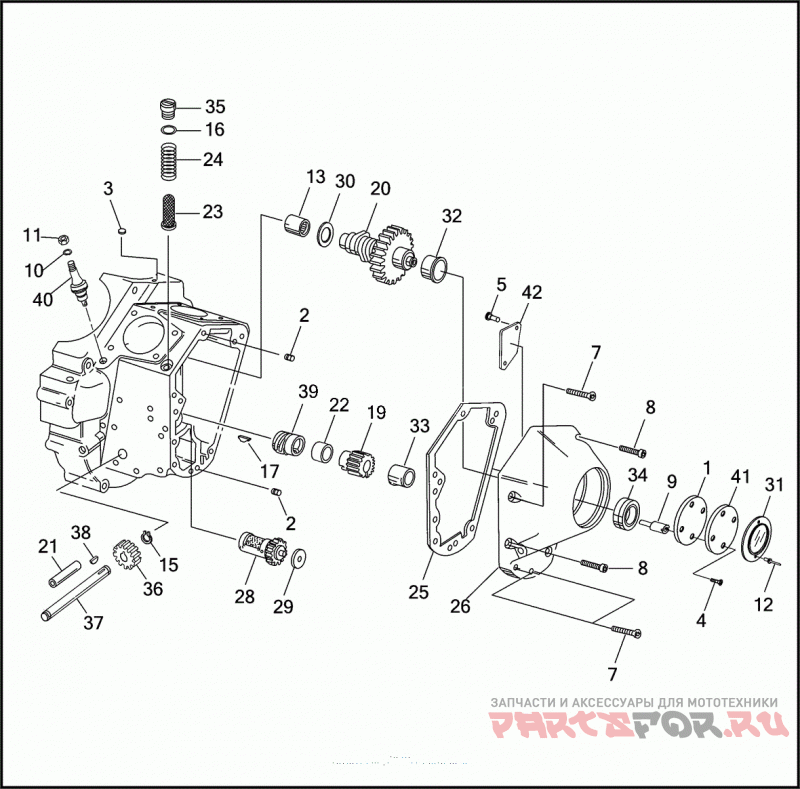

CRANKCASE - GEAR SIDE

Harley Davidson FXDC 1GCL SUPER GLIDE CUSTOM (1992)

Harley Davidson
#oem кодцена
1
32591-80
Деталь GASKET IGNITION COVER
2
358
Палец
3
653
Деталь PLUG CRANKCASE
4
1601
Деталь SCREW NO. 8-32 X 1/2 POZIDRIV FLAT COUNTERSINK HD. (GRADE 2)
5
2441
Деталь SCREW NO. 10-24 X 1/2 TORX PAN HD.
6
3480A
Деталь SCREW 1/4-20 X 1-3/4 KNURLED HD. (GRADE 8)
7
4718A
Деталь SCREW 1/4-20 X 1-1/2 KNURLED HD., W/LOCKPATCH
8
4813A
Деталь SCREW 1/4-20 X 1-3/8 KNURLED HD., W/LOCKPATCH
9
32606-82
Винт
10
7069
Деталь LOCKWASHER NO. 10
11
7634
Деталь NUT NO. 10-32 X 1/8 X 5/16 (BRASS)
12
8699
Деталь RIVET IGNITION COVER
13
9058A
Деталь NEEDLE BEARING CRANKCASE CAM COVER
14
10046
Деталь CLAMP IGNITION WIRE (NOT ILLUSTRATED)
15
11002
Деталь RETAINING RING OIL PUMP DRIVE SHAFT
16
11105
Уплотнительное кольцо
17
11219
Деталь T-KEY
18
24022-90
Деталь NUT GEAR SHAFT (NOT ILLUSTRATED)
19
24040-90
Деталь PINION GEAR 1.4850-53 PD. (ORANGE)
19
24041-90
Деталь PINION GEAR 1.4846-49 PD. (WHITE)
19
24042-90
Деталь PINION GEAR 1.4842-45 PD. (YELLOW)
19
24043-90
Деталь PINION GEAR 1.4838-41 PD. (RED)
19
24044-90
Деталь PINION GEAR 1.4834-37 PD. (BLUE)
19
24045-90
Деталь PINION GEAR 1.4830-33 PD. (GREEN)
19
24046-90
Деталь PINION GEAR 1.4826-29 PD. (BLACK)
20
24581-90
Деталь SET OF CAM & PINION GEARS MATCHED (CALIFORNIA)
20
24583-92
Деталь SET OF CAM & PINION GEARS MATCHED
21
24641-36
Деталь BUSHING OIL PUMP SHAFT
22
24704-90
Деталь SPACER PINION GEAR SHAFT
23
24981-70
Деталь OIL SCREEN CRANKCASE
25
25225-70C
Деталь GASKET GEAR COVER
26
25268-84A
Деталь GEAR COVER W/ 5, 34, & 43 (CHROME)
27
25329-91
Деталь AIR/OIL SEPARATOR (NOT ILLUSTRATED)
28
25310-82A
Деталь BREATHER VALVE GEAR
29
25320-82
Деталь THRUST WASHER BREATHER VALVE, 0.130 INCH THICK
29
25321-82
Деталь THRUST WASHER BREATHER VALVE, 0.135 INCH THICK
29
25322-82
Деталь THRUST WASHER BREATHER VALVE, 0.140 INCH THICK
29
25323-82
Деталь THRUST WASHER BREATHER VALVE, 0.145 INCH THICK
29
25325-82
Деталь THRUST WASHER BREATHER VALVE, 0.150 INCH THICK
29
25326-82
Деталь THRUST WASHER BREATHER VALVE, 0.155 INCH THICK
29
25327-82
Деталь THRUST WASHER BREATHER VALVE, 0.160 INCH THICK
29
25328-82
Деталь THRUST WASHER BREATHER VALVE, 0.165 INCH THICK
30
25550-57A
Деталь THRUST WASHER CAM GEAR
31
32524-83
Деталь TIMER COVER
32
25581-70
Деталь BUSHING GEAR COVER
33
25582-73
Деталь BUSHING GEAR COVER PINION SHAFT
34
83162-51
Деталь OIL SEAL BEARING
35
26263-80
Деталь PLUG OIL SCREEN
36
26345-73
Деталь DRIVE GEAR OIL PUMP, 24T
37
26346-70
Деталь DRIVE SHAFT OIL PUMP
38
26348-15
Деталь KEY DRIVE SHAFT
39
26354-90
Деталь DRIVE GEAR OIL PUMP
40
26561-84
Датчик давления масла
41
32504-80A
Деталь COVER INNER
42
25275-82
Деталь COVER BREATHER VALVE
