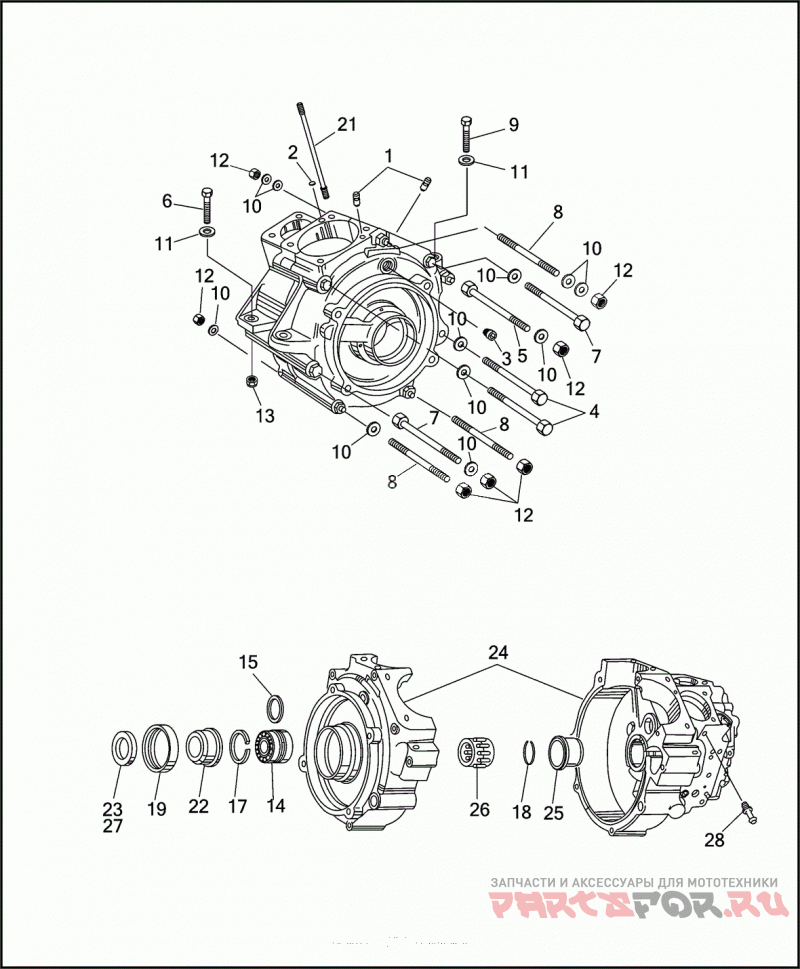

Картер двигателя

Harley Davidson FXDC 1GCL SUPER GLIDE CUSTOM (1992)

Harley Davidson
#oem кодцена
1
358
Палец
2
653
Деталь EXPANSION PLUG
3
720
Деталь PLUG TIMING HOLE
4
3427
Деталь BOLT 5/16-18 X 3-1/2 HEX HD. (GRADE 5)
6
3503
Деталь BOLT 5/16-24 X 2 HEX HD. (GRADE 8)
7
3504
Деталь BOLT 5/16-24 X 5-3/8 HEX HD. (GRADE 5)
8
3506
Деталь STUD 5/16-24 X 5-3/4 HEX HD. (GRADE 5)
9
3528
Деталь BOLT 3/8-16 X 3-1/4 HEX HD. (GRADE 8)
10
6016
Деталь WASHER 11/32 X 11/16 X 1/16
11
6019
Деталь WASHER 3/8 X 29/32 X 1/16
12
7753
Деталь NUT 5/16-24 X 1/4 X 1/2 (GRADE 2)
13
7782
Деталь LOCKNUT 3/8-24 X 3/8 X 9/16 (GRADE 8)
14
9028
Деталь BEARING ASSEMBLY SPROCKET SHAFT
15
9110
Деталь SHIM BEARING ASSEMBLY, 0.0905-.0895 INCH
15
9120
Деталь SHIM BEARING ASSEMBLY, 0.0925-.0915 INCH
15
9121
Деталь SHIM BEARING ASSEMBLY, 0.0945-.0935 INCH
15
9122
Деталь SHIM BEARING ASSEMBLY, 0.0965-.0955 INCH
15
9123
Деталь SHIM BEARING ASSEMBLY, 0.0985-.0975 INCH
15
9124
Деталь SHIM BEARING ASSEMBLY, 0.1005-.0995 INCH
15
9125
Деталь SHIM BEARING ASSEMBLY, 0.1025-.1015 INCH
15
9126
Деталь SHIM BEARING ASSEMBLY, 0.1045-.1035 INCH
15
9127
Деталь SHIM BEARING ASSEMBLY, 0.1065-.1055 INCH
15
9128
Деталь SHIM BEARING ASSEMBLY, 0.1085-.1075 INCH
15
9129
Деталь SHIM BEARING ASSEMBLY, 0.1105-.1095 INCH
15
9130
Деталь SHIM BEARING ASSEMBLY, 0.1125-.1115 INCH
15
9131
Деталь SHIM BEARING ASSEMBLY, 0.1145-.1135 INCH
15
9132
Деталь SHIM BEARING ASSEMBLY, 0.1165-.1155 INCH
15
9133
Деталь SHIM BEARING ASSEMBLY, 0.1185-.1175 INCH
15
9134
Деталь SHIM BEARING ASSEMBLY, 0.1205-.1195 INCH
16
10080
Деталь CLAMP (NOT ILLUSTRATED)
17
9028
Деталь RETAINING RING BEARING, LEFT
18
11177A
Деталь RETAINING RING BEARING, RIGHT
19
12026B
Сальник
20
16304-87
Деталь FITTING CRANKCASE (NOT ILLUSTRATED)
21
16837-85C
Деталь STUD CYLINDER BASE
22
24002-70
Деталь SPACER SPROCKET SHAFT
23
24032-70
Деталь SPACER SPROCKET SHAFT, 0.060 INCH THICK
23
24033-70
Деталь SPACER SPROCKET SHAFT, 0.090 INCH THICK
23
24034-70
Деталь SPACER SPROCKET SHAFT, 0.120 INCH THICK
23
24035-70
Деталь SPACER SPROCKET SHAFT, 0.150 INCH THICK
23
24036-70
Деталь SPACER SPROCKET SHAFT, 0.180 INCH THICK
24
24572-92
Деталь SET OF CRANKCASES
25
24599-58B
Деталь BUSHING RIGHT CRANKCASE, STANDARD
25
24600-58B
Деталь BUSHING RIGHT CRANKCASE, 0.002 INCH O.S. O.D.
25
24601-58B
Деталь BUSHING RIGHT CRANKCASE, 0.005 INCH O.S. O.D.
26
24626-87A
Деталь BEARING SET GEAR SIDE (WHITE/GRAY)
26
24628-87A
Деталь BEARING SET GEAR SIDE (GREEN)
26
24641-87A
Деталь BEARING SET GEAR SIDE (RED)
26
24643-87A
Деталь BEARING SET GEAR SIDE (BLUE)
27
35850-84
Деталь SPACER SPROCKET SHAFT, 0.010 INCH THICK
27
35851-84
Деталь SPACER SPROCKET SHAFT, 0.020 INCH THICK
27
35852-84
Деталь SPACER SPROCKET SHAFT, 0.030 INCH THICK (USE 35850-84 & 35851-84)
28
63533-41A
Деталь FITTING OIL HOSE
