Глушитель

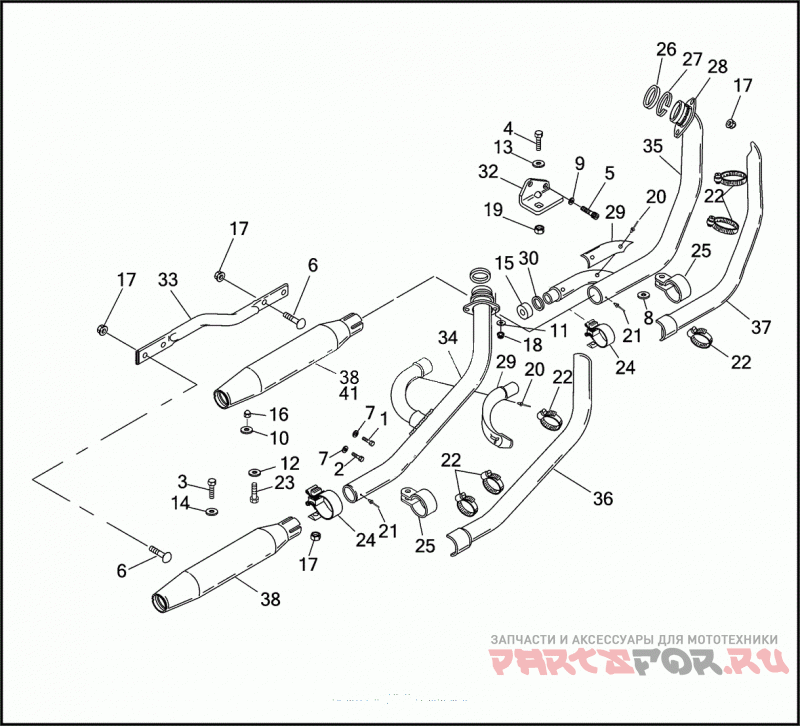

Harley Davidson FXDC 1GCL SUPER GLIDE CUSTOM (1992)

Harley Davidson
#oem кодцена
1
3210A
SCREW 5/16-18 X 1-1/4 KNURLED HD.
2
3485A
SCREW 5/16-18 X 1-3/4 KNURLED HD. (GRADE 8)
3
4036
BOLT 5/16-24 X 1-1/2 HEX HD. (GRADE 5)
4
4337W
SCREW 3/8-24 X 1-1/4 HEX HD. (GRADE 5)
5
4718A
SCREW 1/4-20 X 1-1/2 KNURLED HD., W/LOCKPATCH
6
5445W
BOLT 5/16 X 1-1/4 CARRIAGE (GRADE 5)
7
6016
WASHER 11/32 X 11/16 X 1/16
8
6019
WASHER 3/8 X 29/32 X 1/16
9
6099
WASHER 1/4 X 7/16 X 1/16
10
6235
WASHER 1/4 X 23/32 X 1/16
12
6333
WASHER 5/16 X 7/8 X 5/64
13
6701
WASHER 3/8 X 13/16 X 1/16
14
6702
WASHER 5/16 X 11/16 X 1/16
15
65830-03
GASKET INTERCONNECT
16
7507
ACORN NUT 5/16-18 X 11/16 X 1/2 (GRADE 2) (CHROME)
17
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
17
7593
NUT 5/16-24 FLANGE
19
7782
LOCKNUT 3/8-24 X 3/8 X 9/16 (GRADE 8)
20
8204
заклёпка
21
8672
заклёпка
22
9955
Зажим
22
10119
CLAMP (NOT ILLUSTRATED)
23
65192-90
BOLT SHOULDER
24
65276-62
CLAMP MUFFLER
25
65302-82A
CLAMP EXHAUST PIPE
26
65324-83B
GASKET EXHAUST PORT
27
65325-83A
RETAINING RING EXHAUST GASKET
28
65328-83A
FLANGE EXHAUST MANIFOLD
29
65213-92
SHIELD KIT CROSSOVER, W/ 10119
30
65827-90
RING GASKET RETAINING
31
65828-90
BRACKET REAR EXHAUST (NOT ILLUSTRATED)
32
65670-90A
EXHAUST BRACKET FRONT
33
65660-92
SUPPORT MUFFLER GRAY
35
65669-92
EXHAUST PIPE FRONT
36
65701-90
SHIELD REAR EXHAUST
37
65746-90A
SHIELD FRONT EXHAUST
38
65747-90
Глушитель
39
65824-90
CLAMP BLOCK (NOT ILLUSTRATED)
40
65825-90
CLAMP PLATE (NOT ILLUSTRATED)
41
65374-90C
MUFFLER (HDI)
41
65868-91
MUFFLER CATALYTIC (SWISS)
42
65716-91
TAPE CATALYTIC MUFFLER (SWISS) (NOT ILLUSTRATED)
