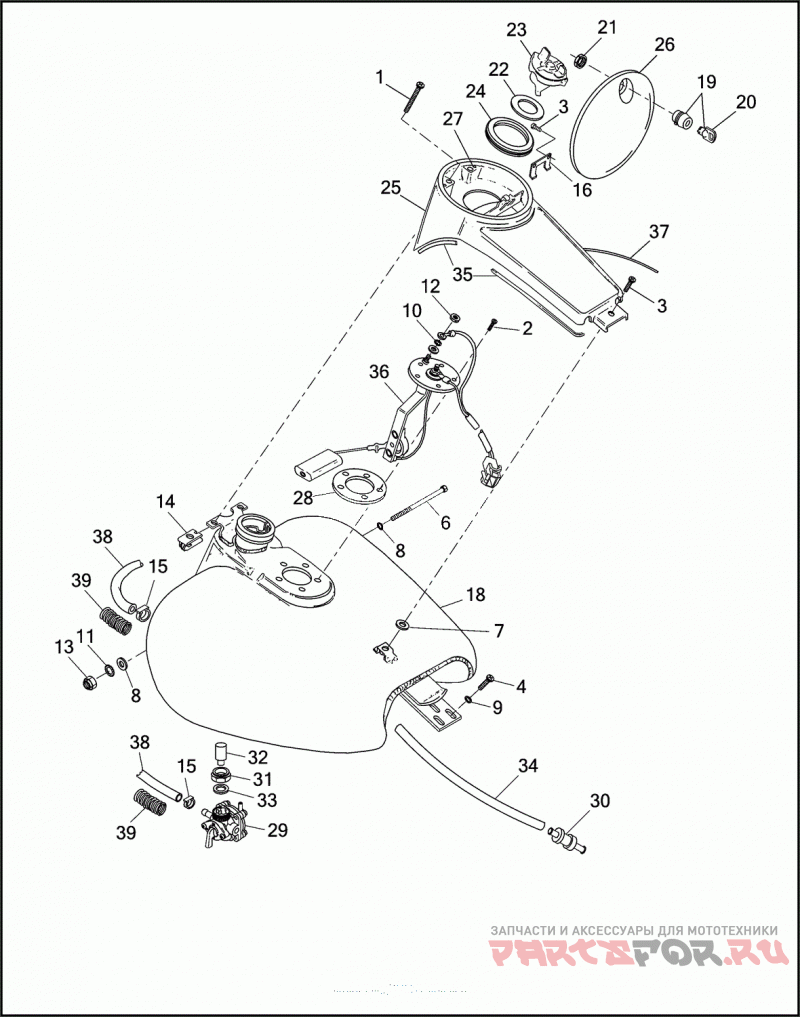

Топливный бак

Harley Davidson FLTCU 1DML TOUR GLIDE ULTRA CLASSIC (1992)

Harley Davidson
#oem кодцена
1
939
SCREW 1/4-20 X 1 SELF-TAPPING, W/WASHER (GRADE 2)
2
1309C
SCREW SEALING
3
3529
SCREW NO. 10-32 X 1/4 HEX SLOTTED WASHER HD., SELF-TAPPING
4
3652
SCREW 1/4-20 X 3/8 BUTTON HD. (GRADE 8)
5
4033
SCREW 1/4-20 X 1-5/8 SOCKET BUTTON HD.
6
4061
BOLT 5/16-18 X 5 HEX HD. (GRADE 5)
7
6109
WASHER 5/16 X 11/16 X 1/8
8
6702
WASHER 5/16 X 11/16 X 1/16
9
6703
WASHER 1/4 X 5/8 X 1/16
10
7069
LOCKWASHER NO. 10
11
7232
LOCKWASHER 5/16 INTERNAL TOOTH
12
7638
NUT NO. 10-32 X 1/8 X 3/8 (GRADE 2)
13
7739
LOCKNUT 5/16-18 X 11/32 X 1/2
14
7743A
CLIP NUT
15
10014
Зажим
16
10105
Зажим
17
10106
CLIP TUBE (NOT ILLUSTRATED)
18
61227-92A
FUEL TANK (PRIME)
19
61029-92A
LOCK DOOR, W/ KEYS
21
84850-92
NUT 3/4-24 X 5/32
22
61109-85D
GASKET FILLER CAP
23
61274-92
FILLER CAP VACUUM VENT
24
61112-82A
чехол
25
61282-03
Консоль
26
61278-92
DOOR CONSOLE
27
61313-88
BUMPER COVER
28
61322-80C
GASKET FUEL SENDING UNIT
30
62150-85
VAPOR VALVE
31
62161-02
NUT FUEL VALVE
32
62170-81B
FILTER FUEL VALVE
33
62172-02
GASKET FUEL VALVE
34
63591-92
TUBE TANK TO VALVE
35
71294-89C
MOLDING RUBBER
36
75040-88A
SENDING UNIT FUEL GAUGE
37
27138-90
HOSE 3/16 INCH I.D. X 11/32 INCH O.D. (RUBBER) (10 FT. LONG)
38
62356-92
HOSE PRE-FORMED
39
62555-95
INSULATOR 1/2 INCH I.D. (NYLON) (8 FT. LONG)
40
61131-92
CONNECTOR VENT LINE (NOT ILLUSTRATED)
41
27097-92
HOSE VENT (NOT ILLUSTRATED)
