SADDLEBAGS - FLSTC для мотоциклов Harley Davidson FLSTC 1BJL HERITAGE SOFTAIL CLASSIC (1992) (1992)

Москва и регионы России

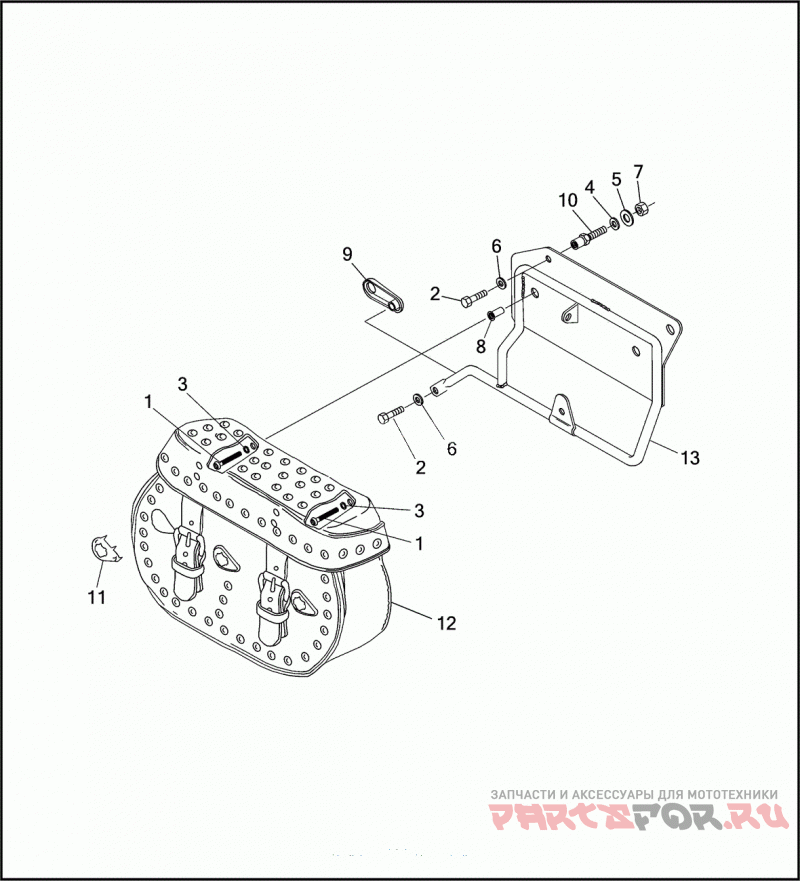

SADDLEBAGS - FLSTC

Harley Davidson FLSTC 1BJL HERITAGE SOFTAIL CLASSIC (1992)

SADDLEBAGS - FLSTC

#

oem код

название

цена

1

SCREW 1/4-20 X 1-1/4 PAN HD. (GRADE 2)

SCREW 1/4-20 X 1-1/4 PAN HD. (GRADE 2)

2

SCREW 5/16-18 X 5/8 HEX HD. (GRADE 5)

SCREW 5/16-18 X 5/8 HEX HD. (GRADE 5)

3

WASHER 1/4 X 23/32 X 1/16

WASHER 1/4 X 23/32 X 1/16

4

WASHER 3/8 X 5/8 X 3/64

WASHER 3/8 X 5/8 X 3/64

5

WASHER 3/8 X 13/16 X 1/16

WASHER 3/8 X 13/16 X 1/16

6

LOCKWASHER 5/16

LOCKWASHER 5/16

7

LOCKNUT 3/8-16 X 7/16 X 9/16

LOCKNUT 3/8-16 X 7/16 X 9/16

8

WELL NUT

WELL NUT

9

SUPPORT LOWER, FRONT

SUPPORT LOWER, FRONT

10

SUPPORT UPPER

SUPPORT UPPER

12

SADDLEBAG LEFT

SADDLEBAG LEFT

12

SADDLEBAG RIGHT

SADDLEBAG RIGHT

13

SUPPORT RIGHT

SUPPORT RIGHT

13

SUPPORT LEFT

SUPPORT LEFT

14

SADDLEBAG ASSEMBLY COMPLETE (NOT ILLUSTRATED)

SADDLEBAG ASSEMBLY COMPLETE (NOT ILLUSTRATED)
