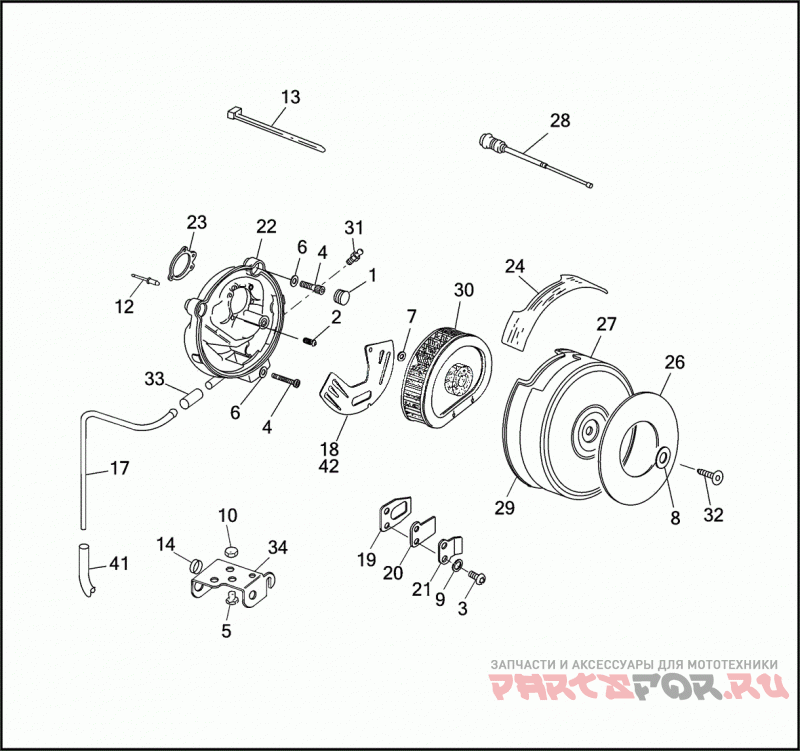

AIR CLEANER & ENRICHMENT CABLE

Harley Davidson FLSTC 1BJL HERITAGE SOFTAIL CLASSIC (1992)

Harley Davidson
#oem кодцена
2
864A
SCREW 1/4-20 X 3/4 HEX SOCKET BUTTON HD.
2
1795A
SCREW 1/4-20 X 3 SOCKET HD. (GRADE 8)
2
2711
SCREW NO. 4-40 X 3/8 PAN HD., SELF-TAPPING
3
2737
SCREW NO. 4-40 X 1/4 POZIDRIV PAN HD. (GRADE 2)
5
3577
Болт
5
4713W
BOLT 3/8-16 X 3/4 HEX HD. (GRADE 5)
7
6048W
WASHER 1/8 X 1/4 X 1/32
8
6109
WASHER 5/16 X 11/16 X 1/8
8
6253W
WASHER 1/4 X 3/4 X 3/64
10
7601
LOCKNUT 3/8-16 FLANGE
11
8535
RIVET (CALIFORNIA) (NOT ILLUSTRATED)
12
8625
POP RIVET (CALIFORNIA)
13
10006
CABLE STRAP
14
11460
Уплотнитель резиновый
15
9894
CLIP GROUND (NOT ILLUSTRATED)
16
10080
CLAMP (NOT ILLUSTRATED)
17
24922-86
VENT TUBE (CHROME)
18
28823-89
BAFFLE PLATE ASSEMBLY (CALIFORNIA)
18
29068-89
BAFFLE PLATE
22
29089-92
BACKPLATE ASSEMBLY (CALIFORNIA)
22
29090-92
BACKPLATE ASSEMBLY
23
29059-88A
Прокладка
24
29126-90B
SAFETY LABEL
25
29145-86
HOSE AIR CLEANER TO CRANKCASE (NOT ILLUSTRATED)
26
29161-86
TRIM in.HERITAGE SOFTAILin.
27
29165-89
COVER AIR CLEANER
28
29236-90
CABLE ENRICHMENT
29
29252-89
SEAL STRIP
29
29258-91
MOLDING
30
29259-91A
FILTER ELEMENT
31
29264-86
FITTING REAR (CALIFORNIA)
32
29269-83A
SCREW 15/16-18 X 5/8 HEX BUTTON HD., W/LOCKPATCH
33
63509-86A
чехол
34
69126-92
BRACKET ENRICHMENT CABLE
35
28841-89
SOLENOID (CALIFORNIA) (NOT ILLUSTRATED)
36
28842-89
LINK (CALIFORNIA) (NOT ILLUSTRATED)
37
32442-92
WIRING HARNESS BUTTERFLY (CALIFORNIA) (NOT ILLUSTRATED)
38
61095-92
FITTING (CALIFORNIA) (NOT ILLUSTRATED)
39
70291-89
HOUSING FOUR PIN (CALIFORNIA) (NOT ILLUSTRATED)
41
63500-68
HOSE 3/8 INCH I.D. (RUBBER) (25 FT. LONG)
42
29070-89B
BAFFLE PLATE
