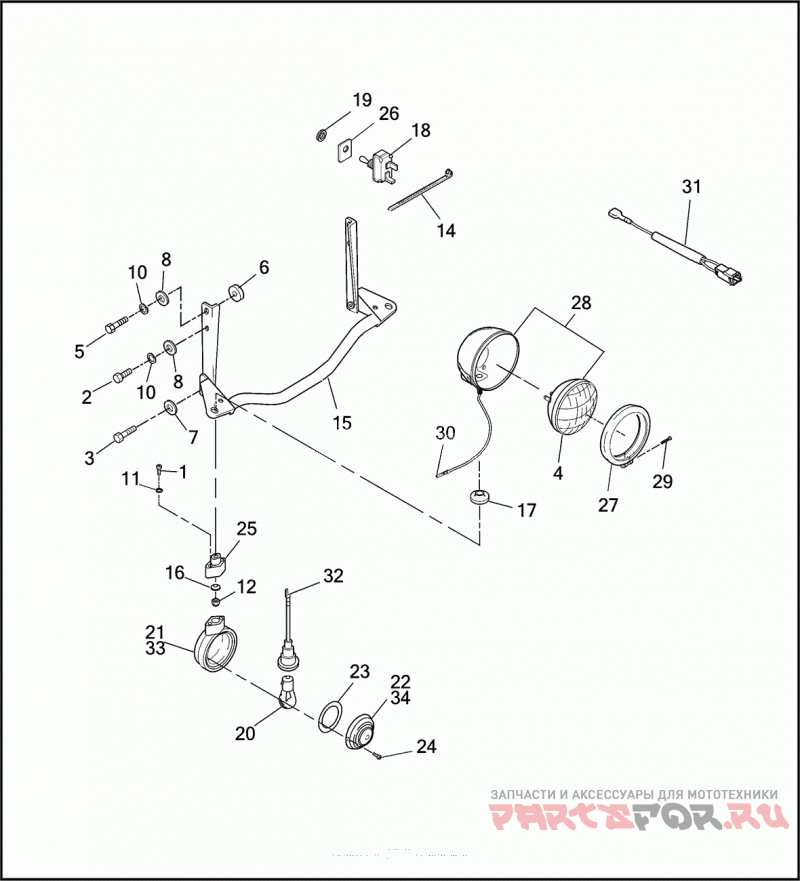

AUXILIARY/FOG LAMPS & FRONT TURN SIGNALS - FLSTC

Harley Davidson FLSTC 1BJL HERITAGE SOFTAIL CLASSIC (1992)

Harley Davidson
#oem кодцена
1
2647B
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING
2
3960W
BOLT 5/16-24 X 1 HEX HD. (GRADE 5)
3
4014W
BOLT 5/16-24 X 1-1/4 HEX HD. (GRADE 5)
4
68674-69A
SEALED UNIT AUXILIARY LAMPS
5
4036
BOLT 5/16-24 X 1-1/2 HEX HD. (GRADE 5)
6
5885
Проставка
7
6109
WASHER 5/16 X 11/16 X 1/8
8
6645
WASHER 11/32 X 1-1/32 X 1/8
9
68690-69
CLIP WIRE (NOT ILLUSTRATED)
10
7041
LOCKWASHER 5/16
11
7069
LOCKWASHER NO. 10
12
7778
LOCKNUT 3/8-16 X 7/16 X 9/16
13
9900
CONNECTOR AUXILIARY LAMP WIRE (NOT ILLUSTRATED)
14
10006
CABLE STRAP
15
57852-02A
BRACKET AUXILIARY LAMPS
16
68720-62
CLAMP BLOCK AUXILIARY LAMPS
17
68721-62
SWIVEL BLOCK AUXILIARY LAMPS
18
67858-89
TOGGLE SWITCH AUXILIARY LAMPS
19
67846-70
NUT TOGGLE SWITCH
20
68168-89A
BULB TURN SIGNAL
21
68661-87
TURN SIGNAL LEFT
21
68668-87
TURN SIGNAL RIGHT
22
68440-86
LENS TURN SIGNAL (AMBER)
23
68451-86
Уплотнительное кольцо
24
68452-86
SCREW W/ O-RING
25
68519-68A
MOUNTING BRACKET
26
68619-83
LABEL AUXILIARY LAMP SWITCH
27
68725-62A
MOLDING AUXILIARY LAMPS
28
68671-69D
AUXILIARY LAMP
29
68672-38
SCREW AUXILIARY LAMP MOLDING
30
72039-71A
PIN SINGLE SOCKET
31
67615-89A
WIRING HARNESS AUXILIARY LAMPS
32
73191-96
SOCKET CONTACT 16-20 GAUGE
33
68401-90
TURN SIGNAL (HDI)
34
68505-90
LENS TURN SIGNAL (AMBER)
