FUEL TANK - FLHTP для мотоциклов Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1992) (1992)

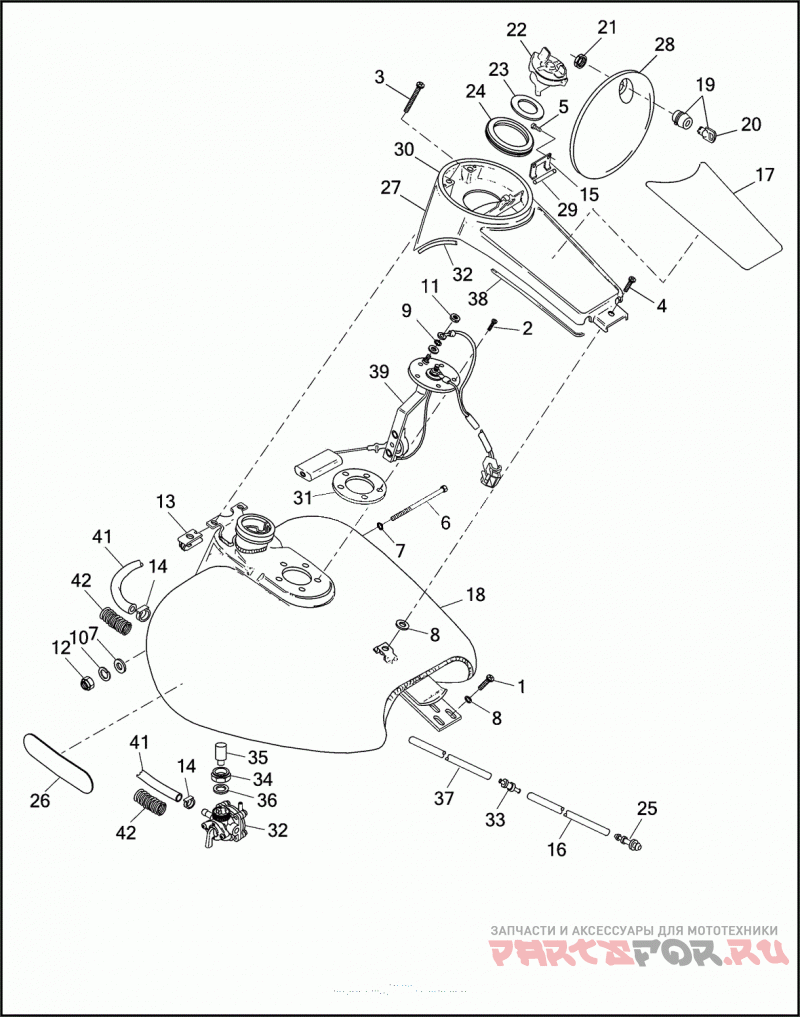

FUEL TANK - FLHTP

Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1992)

oem код

название

цена

904

SCREW 1/4-20 X 7/8 HEX HD., W/WASHER

1309C

Винт

2599

SCREW 1/4-20 X 1-3/4 POZIDRIV PAN HD. (GRADE 2)

2773

SCREW 1/4-20 X 1/2 POZIDRIV PAN HD. (GRADE 2)

3529

SCREW NO. 10-32 X 1/4 HEX SLOTTED WASHER HD., SELF-TAPPING

4061

BOLT 5/16-18 X 5 HEX HD. (GRADE 5)

6702

WASHER 5/16 X 11/16 X 1/16

6703

WASHER 1/4 X 5/8 X 1/16

7069

LOCKWASHER NO. 10

7232

LOCKWASHER 5/16 INTERNAL TOOTH

7638

NUT NO. 10-32 X 1/8 X 3/8 (GRADE 2)

7739

LOCKNUT 5/16-18 X 11/32 X 1/2

CLIP NUT

Зажим

Зажим

HOSE VENT

INSERT CONSOLE PANEL

FUEL TANK (PRIME)

LOCK DOOR, W/ KEYS

NUT 3/4-24 X 5/32

Крышка заливной горловины

GASKET FILLER CAP

чехол

CONNECTOR VENT LINE

DECAL in.HARLEY-DAVIDSONin.

Консоль

DOOR CONSOLE

PIN DOOR HINGE

BUMPER COVER

GASKET SENDING UNIT

VAPOR VALVE

NUT VALVE

FILTER FUEL VALVE

GASKET VALVE

TUBE TANK TO VALVE

MOLDING RUBBER

SENDING UNIT

HOSE 3/16 INCH I.D. X 11/32 INCH O.D. (RUBBER) (10 FT. LONG) (NOT ILLUSTRATED)

63501-68B

HOSE 1/4 INCH I.D. X 5/8 INCH O.D. (RUBBER) (25 FT. LONG)

62555-95

INSULATOR 1/2 INCH I.D. (NYLON) (8 FT. LONG)
