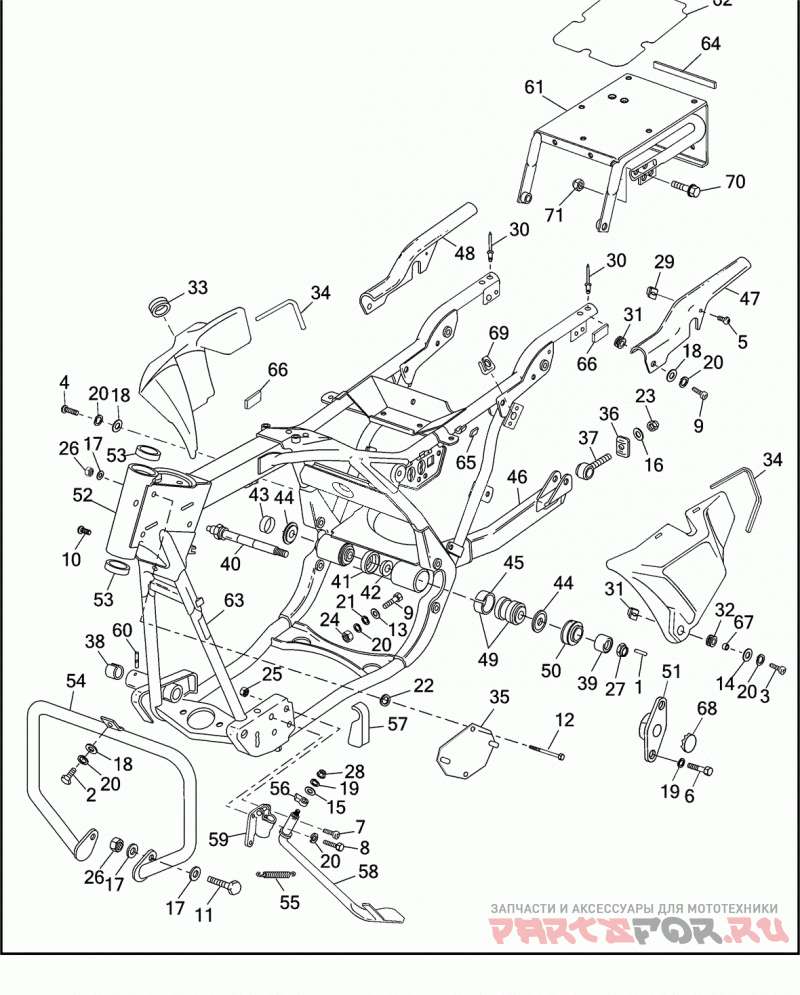

FRAME, REAR FORK & JIFFY STAND - FLHTP

Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1992)

Harley Davidson
#oem кодцена
1
604
Палец
2
856A
SCREW 5/16-24 X 1 SOCKET HD. (GRADE 8)
3
2708A
SCREW 5/16-18 X 1 SOCKET HD.
4
2582
SCREW 5/16-18 X 3/4 POZIDRIV PAN HD. (GRADE 2)
5
2661W
SCREW NO. 10-24 X 1/2 PHILLIPS ROUND HD., SELF-TAPPING
6
3782
BOLT 7/16-14 X 1-1/4 HEX HD. (GRADE 5)
7
3960W
BOLT 5/16-24 X 1 HEX HD. (GRADE 5)
8
3974HW
BOLT 5/16-24 X 3/4 HEX HD. (GRADE 5)
9
3546
BOLT 5/16-18 X 5/8 HEX FLANGE HD., W/LOCKPATCH
10
4091
SCREW NO. 10-24 X 1/2 HEX HD., W/WASHER, SELF-TAPPING (ZINC)
11
4337W
SCREW 3/8-24 X 1-1/4 HEX HD. (GRADE 5)
12
4435W
BOLT 3/8-24 X 3-1/2 HEX HD. (GRADE 5)
13
6016
WASHER 11/32 X 11/16 X 1/16
14
6333
WASHER 5/16 X 7/8 X 5/64
15
6334
WASHER 7/16 X 29/32 X 1/16
16
6645
WASHER 11/32 X 1-1/32 X 1/8
17
6701
WASHER 3/8 X 13/16 X 1/16
18
6702
WASHER 5/16 X 11/16 X 1/16
19
7039
LOCKWASHER 7/16
20
7041
LOCKWASHER 5/16
21
7100
LOCKWASHER 5/16 INTERNAL/EXTERNAL TOOTH
22
7101
LOCKWASHER 3/8 INTERNAL/EXTERNAL TOOTH
23
7725
LOCKNUT 5/16-24 X 11/32 X 1/2
24
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
25
7753
NUT 5/16-24 X 1/4 X 1/2 (GRADE 2)
26
7775
LOCKNUT 3/8-24 X 7/16 X 9/16
27
7824
LOCKNUT 1/2-20 X 1/4 (GRADE 2)
28
7837W
NUT 7/16-20 X 3/8 X 11/16 (GRADE 2)
29
8155
CLIP NUT
30
8307
заклёпка
31
9959
CLIP NUT
32
11412
GROMMET SIDE COVER
33
11436
Уплотнитель резиновый
34
29274-93
MOLDING SIDE COVER
35
32451-83
BRACKET IGNITION MODULE
36
41112-79
END COVER REAR FORK
37
41573-84
ADJUSTER REAR AXLE
38
47247-83
BUSHING FOOT BRAKE HUB
39
47491-89
Шайба
40
47492-89A
PIVOT SHAFT KIT W/ 27 & 39
41
47510-80
RETAINING RING PLASTIC
42
47511-80
Проставка
43
47512-82
SPACER PIVOT SHAFT, RIGHT
44
47513-80
WASHER NYLON
45
47538-79
TOLERANCE RING BUSHING
46
47544-85B
REAR FORK
47
47551-79B
COVER LEFT
48
47552-79B
COVER RIGHT
49
47556-81
BUSHING ASSEMBLY W/ 45
50
47564-86B
Резиновое Крепление
51
47825-81
END CAP LEFT
51
47826-81
END CAP RIGHT
52
47900-92
FRAME W/ SIDECAR MOUNT
53
48315-60
BEARING CUP
54
49184-88A
ENGINE GUARD
55
50005-85A
SPRING JIFFY STAND
56
50015-74A
LEG STOP
57
50059-85A
BUMPER JIFFY STAND (NOT ILLUSTRATED)
58
50075-91A
LEG JIFFY STAND
59
50078-81B
BRACKET JIFFY STAND LEG
60
83459-09
FITTING lubrication
61
53411-92A
LUGGAGE CARRIER
62
53521-91
COVER LUGGAGE RACK
63
53487-87
PAD PROTECTION
64
59988-72A
Отражатель Красный
65
66029-80
RUBBER MOUNT SIDE COVER
66
66600-84
Подушка изолирующая
67
67009-72
Проставка
68
67865-89
PLUG CHROME
69
70908-82
CLIP NUT
70
4327
SCREW 5/16-18 X 2 HEX HD.
71
7594
LOCKNUT 5/16-18 X 1/2 NYLOCK
