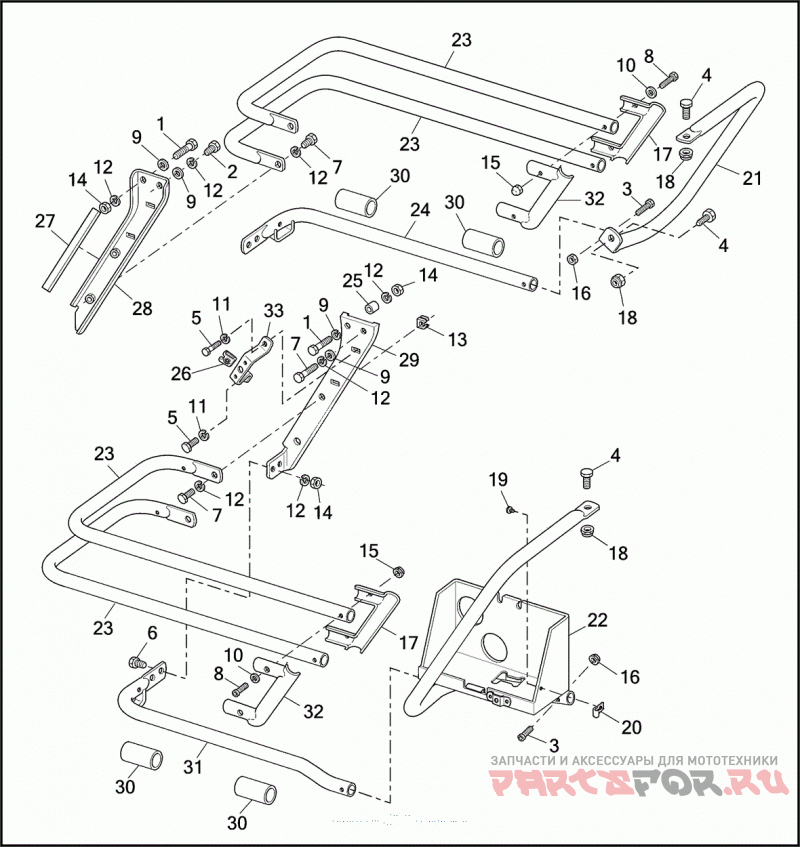

SADDLEBAG GUARDS

Harley Davidson FLHTC 1DJL ELECTRA GLIDE CLASSIC (1992)

Harley Davidson
#oem кодцена
1
2818
BOLT 5/16-18 X 1-1/2 HEX HD. (GRADE 5)
2
2882W
SCREW 5/16-18 X 5/8 HEX HD. (GRADE 5)
3
2841W
SCREW 1/4-28 X 1-7/32 PHILLIPS HD.
4
2889
BOLT 3/8-24 X 3/4 HEX HD. (GRADE 5)
5
3765
BOLT 1/4-28 X 5/8 HEX HD. (GRADE 5)
6
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
7
4391
BOLT 5/16-24 X 5/8 HEX HD. (GRADE 5)
8
2513
SCREW 1/4-20 X 1-1/4 SOCKET HD. (BLACK)
9
6702
WASHER 5/16 X 11/16 X 1/16
10
6703
WASHER 1/4 X 5/8 X 1/16
11
7036
WASHER 1/4 X 31/64 X 1/16
12
7041
LOCKWASHER 5/16
13
7490
CLIP NUT
14
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
15
7737W
ACORN NUT 1/4-20 X 15/32 X 7/16 (GRADE 2)
16
7683
LOCKNUT 1/4-28 X 5/16 X 7/16
17
90940-79
CLAMP SADDLEBAG GUARD, LEFT
18
7776W
LOCKNUT 3/8-24 X 9/32 X 9/16
19
8672
заклёпка
21
49201-80
GUARD LEFT
22
49188-79A
GUARD RIGHT, W/ BATTERY SUPPORT
23
49193-79
GUARD SADDLEBAG
24
49194-85
SUPPORT SADDLEBAG, LEFT
25
59060-92
Проставка
26
70908-82
RECEPTACLE
27
90594-85A
Подушка
28
90718-79C
SUPPORT BRACKET LEFT
29
90720-79C
SUPPORT BRACKET RIGHT
30
90764-83
PAD SADDLEBAG MOUNTING
31
90781-85
SUPPORT SADDLEBAG, RIGHT
32
90941-79
CLAMP SADDLEBAG GUARD, RIGHT
33
90801-83
BRACKET SADDLEBAG MOUNTING
