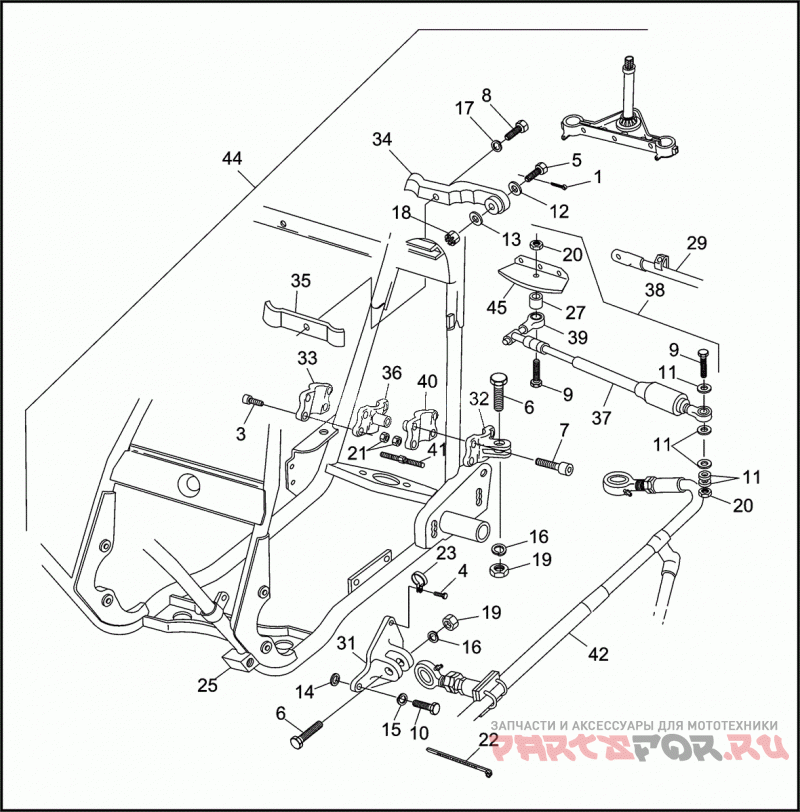

SIDECAR CONNECTION KIT - TLE

Harley Davidson TLE SG91 STANDARD SIDECAR (1991)

Harley Davidson
#oem кодцена
1
559
COTTER PIN | SG91/SG92
2
604
ROLLER PIN (not illustrated) | SG91/SG92
3
855B
SCREW 3/8-16 X 2 knurled hd. | SG91
4
3764
BOLT 7/16-14 X 2 hex hd. (Grade 5) | SG91/SG92
4
3973
BOLT 1/2-20 X 1-1/4 hex hd. (Grade 5) | SG91
7
4029A
SCREW 3/8-16 X 2-1/4 socket hd. (black) | SG91
8
4081
BOLT 1/2-20 X 1-3/4 hex hd. (Grade 5) | SG91
9
4411
BOLT 3/8-24 X 1-3/4 hex hd. (Grade 5) | SG91/SG92
10
4729
BOLT 7/16-20 X 1-1/4 hex hd. (Grade 5) | SG91
11
6701
WASHER 3/8 X 13/16 X 1/16 | SG91/SG92
12
6718
WASHER 1/2 X 1-1/16 X 3/32 | SG91/SG92
13
6723
WASHER 17/32 X 1-1/2 X 9/64 | SG91/SG92
14
6960
WASHER 1/2 X 3/4 X .004 | SG91/SG92
14
6961
WASHER 1/2 X 3/4 X .007 | SG91/SG92
14
6962
WASHER 1/2 X 3/4 X .015 | SG91/SG92
14
6963
WASHER 1/2 X 3/4 X .031 | SG91/SG92
15
7039
LOCKWASHER 7/16 | SG91/SG92
16
7043
LOCKWASHER 3/4 | SG91/SG92
17
7068
LOCKWASHER 1/2 | SG91/SG92
18
7734W
NUT 1/2-20 X 9/16 X 3/4 slotted (Grade 5) | SG91
19
7652
NUT 3/4-16 X 1-1/8 (chrome) | SG91
20
7775
LOCKNUT 3/8-24 X 7/16 X 9/16 | SG91/SG92
21
7778
LOCKNUT 3/8-16 X 7/16 X 9/16 | SG91/SG92
22
10006
CABLE STRAP | SG91/SG92
24
42311-58
PLUG brake line (w/ sidecar removed) (not illustrated) | SG91/SG92
26
50594-87
MOUNT passenger footboard (not illustrated) | SG91/SG92
27
59938-72
SPACER mounting | SG91/SG92
28
87032-85
FITTING union (not illustrated) | SG91/SG92
29
87056-83B
BRACE sidecar frame | SG91/SG92
30
87113-83
TEE brake line (not illustrated) | SG91/SG92
31
87114-83
BRACKET ASSEMBLY rear, w/ 604 | SG91/SG92
32
87122-83A
MOUNTING BRACKET lower front, right | SG91/SG92
33
87123-83
MOUNTING BRACKET lower front, left | SG91/SG92
34
87131-83C
UPPER CONNECTION front | SG91/SG92
35
87132-83C
UPPER CONNECTION rear | SG91
36
87137-83
STABILIZER BRACKET left | SG91
37
87141-83
STEERING DAMPER | SG91/SG92
38
87142-83
DAMPER MOUNTING KIT w/ 9, 11, 20, 27, & 39 | SG91/SG92
39
87144-83
ROD END BALL JOINT | SG91/SG92
40
87148-83
STABILIZER BRACKET right | SG91
41
87156-83
STABILIZER front | SG91/SG92
42
87160-83
FRAME ASSEMBLY | SG91/SG92
43
87776-83
BRAKE LINE sidecar (not illustrated) | SG91
44
87166-83C
CONNECTION KIT sidecar | SG91
45
87143-83
BRACKET damper | SG91/SG92
