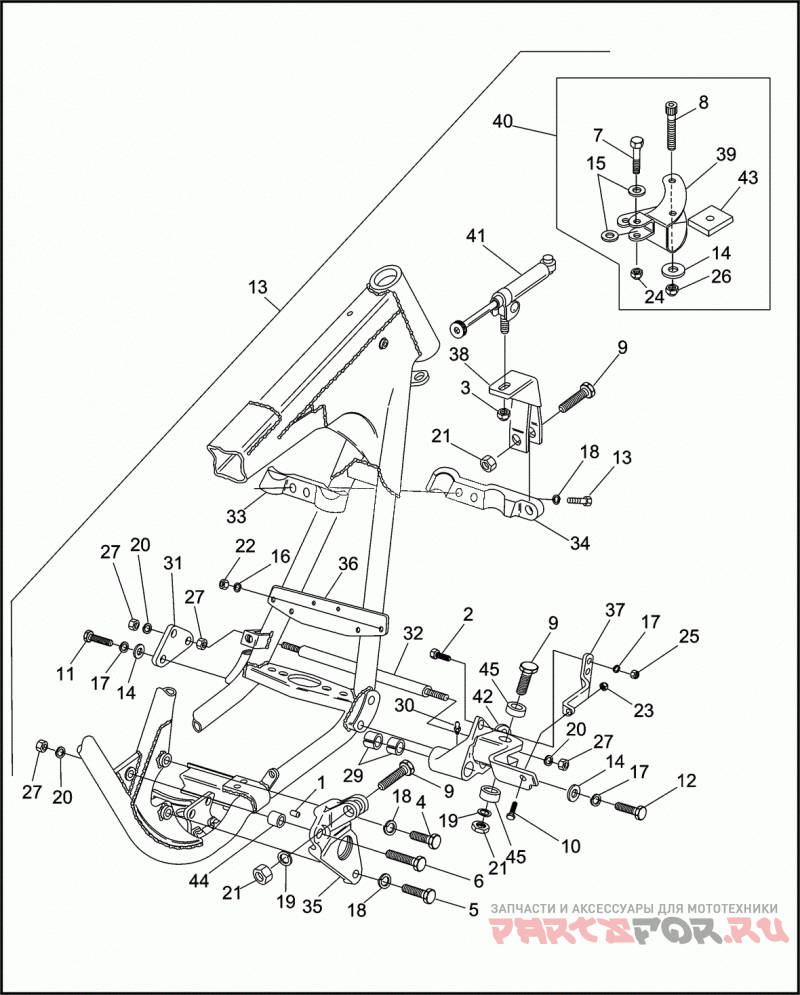

SIDECAR CONNECTION KIT - RLE

Harley Davidson RLE SH91 RLE SIDECAR (1991)

Harley Davidson
#oem кодцена
1
604
ROLL PIN | SH91/SH92
2
2879W
BOLT 3/8-16 X 1 hex hd. (Grade 5) | SH91/SH92
3
3403
LOCKNUT M8-1.25 X 12mm flange (zinc) | SH91/SH92
4
3764
BOLT 7/16-14 X 2 hex hd. (Grade 5) | SH91
5
3769
BOLT 7/16-14 X 1-1/2 hex hd. (Grade 5) | SH91/SH92
6
3958
BOLT 1/2-20 X 2-1/4 hex hd. (Grade 5) | SH91/SH92
7
4041W
SCREW 5/16-24 X 1-5/8 hex hd. | SH91/SH92
8
4030
SCREW 3/8-16 X 2-7/16 socket pan hd. | SH91/SH92
9
4045
SCREW 3/4-10 X 2-3/4 hex hd. (Grade 8) | SH91/SH92
10
4701
BOLT 5/16-24 X 1-1/2 hex hd. (Grade 5) | SH91
11
4716W
SCREW 3/8-16 X 1-1/4 hex hd. (Grade 5) | SH91/SH92
12
4721
BOLT 3/8-16 X 1-1/2 hex hd. (Grade 5) | SH91/SH92
13
87008-88
SIDECAR CONNECTION KIT | SH91/SH92
14
6701
WASHER 3/8 X 13/16 X 1/16 | SH91/SH92
15
6702
WASHER 5/16 X 11/16 X 1/16 | SH91/SH92
16
7036
WASHER 1/4 X 31/64 X 1/16 | SH91/SH92
17
7038
LOCKWASHER 3/8 | SH91/SH92
18
7039
LOCKWASHER 7/16 | SH91/SH92
19
7043
LOCKWASHER 3/4 | SH91/SH92
20
7068
LOCKWASHER 1/2 | SH91/SH92
21
7598
NUT 3/4-10 | SH91/SH92
22
7688
NUT 1/4-20 X 7/32 X 7/16 (Grade 2) | SH91/SH92
23
7725
LOCKNUT 5/16-24 X 11/32 X 1/2 | SH91/SH92
24
7727
LOCKNUT 5/16-24 X 1/4 X 1/2 | SH91/SH92
25
7778
LOCKNUT 3/8-16 X 7/16 X 9/16 | SH91/SH92
26
7783
NUT 3/8-16 X 5/16 X 9/16 (Grade 2) | SH91/SH92
27
7845
NUT 1/2-20 X 7/16 X 3/4 (Grade 2) | SH91/SH92
28
45452-87
FORK BRACE (chrome) (not illustrated) | SH91/SH92
29
47247-83
BUSHING | SH91/SH92
30
83459-09
FITTING lubrication | SH91/SH92
31
87007-85
ADJUSTER PLATE left front | SH91/SH92
32
87010-85
STABILIZER front | SH91/SH92
33
87011-85
UPPER CONNECTION rear | SH91/SH92
34
87013-85
UPPER CONNECTION front | SH91/SH92
35
87015-85
BRACKET ASSEMBLY rear, w/ 604 | SH91/SH92
36
87018-85
BRACKET brake reservoir | SH91/SH92
37
87019-85
BRACKET brake stop | SH91/SH92
38
87023-88
DAMPER MOUNTING KIT | SH91/SH92
39
87022-88
MOUNTING BRACKET | SH91/SH92
40
87023-88
DAMPER MOUNTING KIT | SH91/SH92
41
87024-85
STEERING DAMPER | SH91/SH92
42
87025-85A
BRACKET lower front, rear, w/ 29 & 30 | SH91/SH92
43
87048-88
SPACER | SH91/SH92
44
90480-85
SPACER rear mount | SH91/SH92
