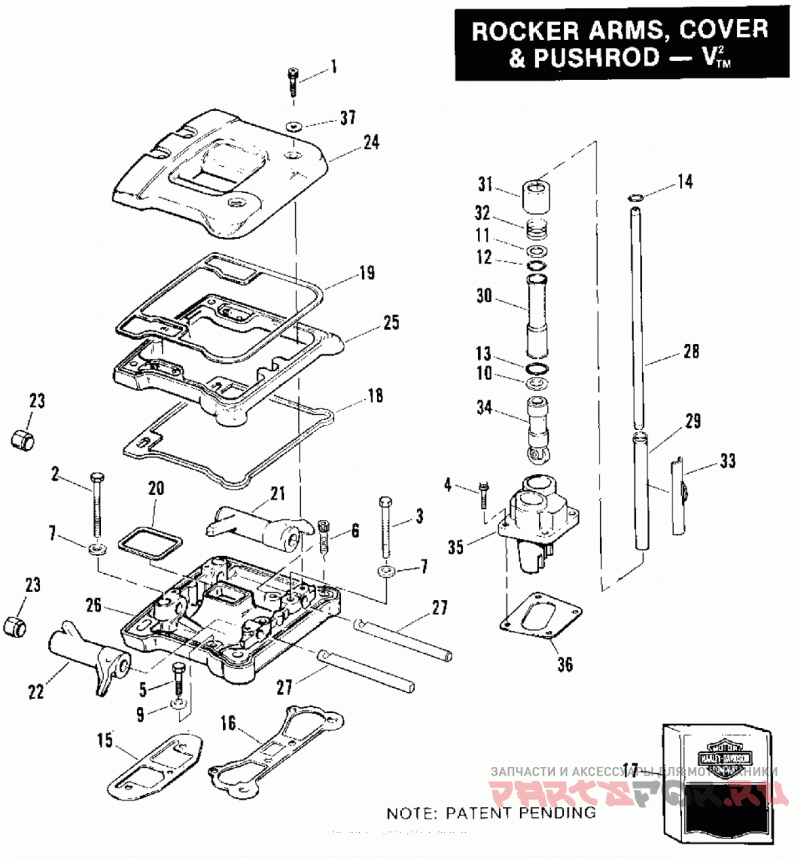

SCREW, 1/4-20 X 7/8 knurled socket hd. w/washer (Grade 8 steel)

BOLT, 5/16-18 X 2-3/4 hex. hd.(Grade 8 steel)

BOLT, 5/16-18 X 2-1/2 hex. hd.(Grade 8 steel)

SCREW, 1/4-20 X 7/8 12 pt. hd.(Grade 5 steel)

SCREW 1/4-20 X 1-1/4 SEMS hex hd. (Grade 8)

SCREW, 1/4-20 X 1-1/2 knurled socket hd. w/ washer (w/lockpatch)

WASHER, 11/32 X 11/16 X 1/16

WASHER, 9/32 X 5/8 X 1/16

WASHER, 57/64 X 1-3/64 X 1/32

WASHER, 11/16 X 29/32 X 1/32

O-RING, push rod cover

O-RING, push rod cover

Уплотнительное кольцо

GASKET rocker cover/cylinder head, valve & pushrod sides (replaces 16778-84A & 16779-84B) | For 1991 this part is included in Gasket Kit # 17038-90 For 1992 this part is included in Gasket Kit # 1704

GASKET rocker cover/cylinder head, valve & pushrod sides (replaces 16778-84A & 16779-84B) | For 1991 this part is included in Gasket Kit # 17038-90 For 1992 this part is included in Gasket Kit # 1704

GASKET KIT, rocker boxes with #15, 16, 18, 19, 20 & 37

GASKET rocker cover, lower

GASKET rocker cover, upper

GASKET rocker cover, inner | For 1991 this part is included in Gasket Kit # 17038-90 For 1992 this part is included in Gasket Kit # 17042-92

ROCKER ARM, front intake, rear exhaust, Includes bushings

ROCKER ARM, rear intake, front exhaust, Includes bushings

BEARING rocker arm

ROCKER COVER, outer (chrome)

SPACER, rocker covers (chrome)

ROCKER COVER, inner (chrome)

Вал

PUSHROD rear exhaust, 11.210 inches long

PUSHROD rear intake, 11.045 inches long

PUSHROD front exhaust, 11.325 inches long

PUSHROD front intake, 11.090 inches long

COVER, push rod - upper

COVER, push rod - lower

CAP, cover spring

SPRING, push rod cover

RETAINER, spring cap

TAPPET w/ roller

TAPPET GUIDE, rear (black wrinkle)

TAPPET GUIDE, front (black wrinkle)

GASKET, tappet guide - rear

GASKET, tappet guide - front

WASHER | For 1991 this part is included in Gasket Kit # 17038-90 For 1992 this part is included in Gasket Kit # 17042-92
