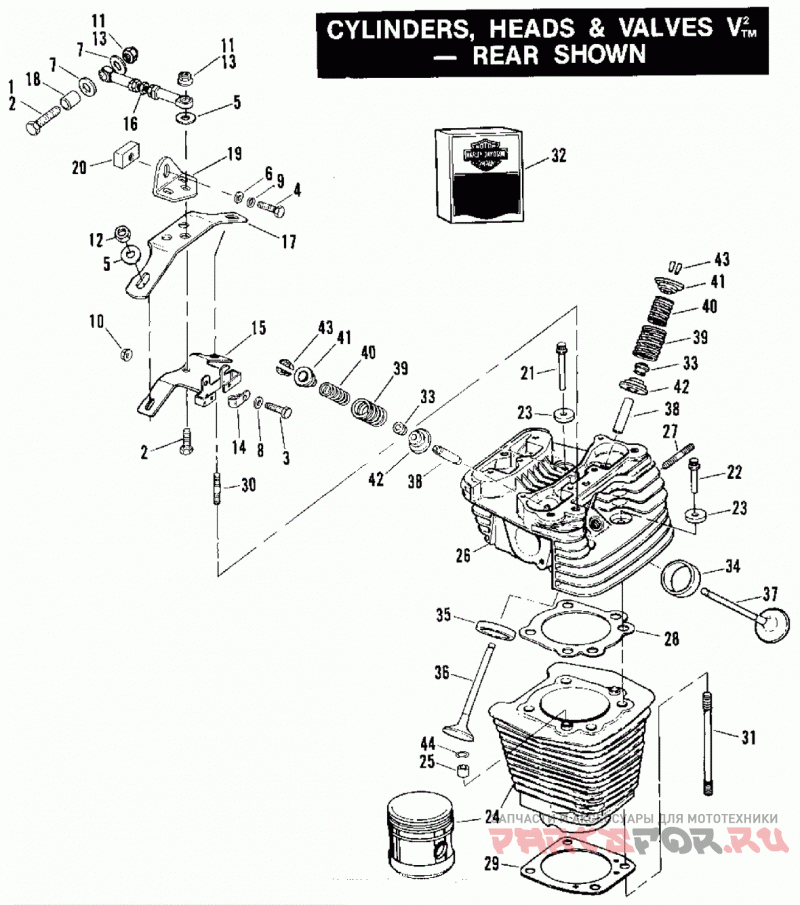

CYLINDER, HEAD AND VALVES

Harley Davidson FXRS-SP EGLM FXR Sport (1991)

Harley Davidson
#oem кодцена
1
4721
BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel)
3
2882W
BOLT, 5/16-18 X 5/8 hex. hd. (Grade 5 steel)
5
6019
WASHER, 3/8 X 29/32 X 1/16
7
6701
WASHER, 3/8 X 13/16 X 1/16
8
6702
WASHER, 5/16 X 11/16 X 1/16
10
7531
FLANGE LOCKNUT, 5/16-18 X 9/32 X 1/2 hex.
11
7601
FLANGE LOCKNUT, 3/8-16
12
7775
LOCKNUT, 3/8-24 X 7/16 X 9/16 hex.
13
7778
LOCKNUT, 3/8-16 X 7/16 X 9/16 hex.
14
10003
Зажим
16124-91
ENGINE ASM., complete (1340 cc)(C & BW)
16131-91
ENGINE ASM., complete (1340 cc)(C & BW) (Cal. only)
15
16338-99
BRACKET, engine mounting
16
16219-79C
STABILIZER LINK top
21
16478-85A
SCREW, internal thread
22
16480-85A
SCREW, internal thread
24
16512-86A
CYLINDER W/PISTON (black wrinkle)
25
16573-83A
INSERT cylinder head stud
26
16692-85C
HEAD, front cylinder w/guides & seats (blk wrkl)
26
16696-85B
HEAD, rear cylinder w/guides & seats (blk wrkl)
27
16715-83
STUD, exhaust port
28
16770-84F
GASKET cylinder head
29
16774-86D
GASKET, cylinder base
31
16837-85C
STUD, cylinder base
32
17033-83A
GASKET KIT, top) overhaul
32
17035-83B
GASKET KIT, engine overhaul
33
18001-83B
SEAL, valve
34
18011-86
INSERT, exhaust valve seat
34
18124-83
INSERT, exhaust valve seat - 0.005 O.S.
35
18020-83
INSERT, intake valve seat
35
18134-83
INSERT, intake valve seat - 0.005 O.S.
36
18074-83B
Клапан впускной
36
18076-83
INTAKE VALVE, 0.03 short
37
18082-83A
Клапан выпускной
37
18087-83
EXHAUST VALVE, 0.030 short
38
18101-83D
VALVE GUIDE intake & exhaust
38
18130-83D
VALVE GUIDE, intake & exhaust - 0.001 O.S.
38
18131-83D
VALVE GUIDE, intake & exhaust - 0.003 O.S.
38
18133-83B
VALVE GUIDE, intake & exhaust - 0.002 O.S.
39
18201-83
VALVE SPRING, outer
40
18202-83
VALVE SPRING, inner
41
18219-83A
COLLAR, valve spring - upper
42
18222-83
COLLAR,, valve spring - lower
43
18229-83A
RETAINER valve collar
44
26432-76A
O-RING, cylinder stud insert
