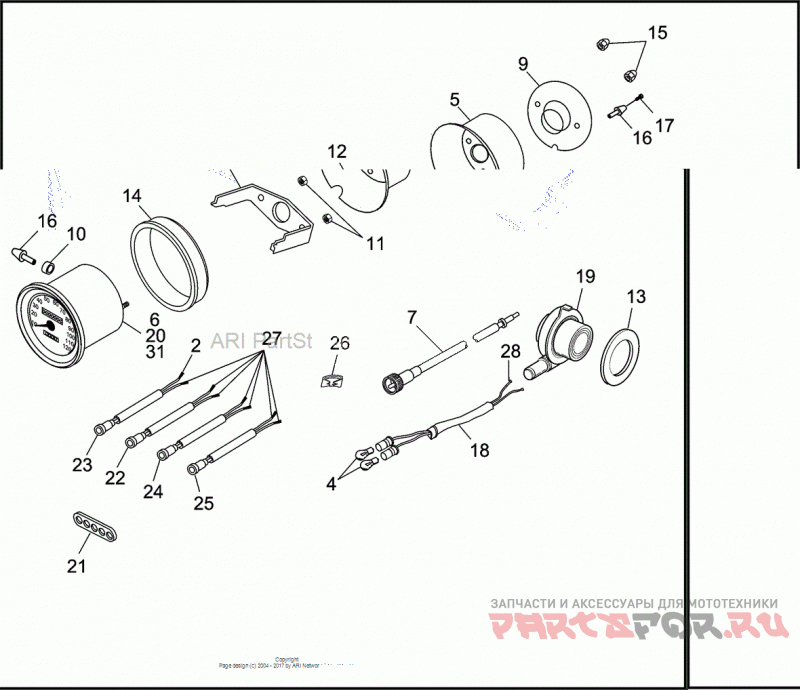

INSTRUMENTS - FXR & FXLR

Harley Davidson FXR EA91 SUPER GLIDE (1991)

Harley Davidson
#oem кодцена
2
9857
TERMINAL ring type, #10 hole | EA91/EA92
3
45092-66A
GUIDE cable (not illustrated) | EA91/EA92/EL91/EL92
4
53439-79
BULB | EA91/EA92/EL91/EL92
6
67020-85A
SPEEDOMETER mph | EA91/EA92
7
67078-85B
CABLE ASSEMBLY speedometer | EA91/EA92/EL91/EL92
10
67086-85
GROMMET | EA91/EA92
11
67094-85
NUT | EA91/EA92
12
67095-85
BRACKET mounting | EA91/EA92
13
67098-87
SEAL drive unit | EA91/EA92/EL91/EL92
14
92061-83
GASKET speedometer mounting | EA91/EA92
16
67122-85
RESET KNOB odometer | EA91/EA92
18
67202-91
BULB & SOCKET w/ terminals | EA91/EA92
19
67127-84A
DRIVE UNIT speedometer | EA91/EA92
20
67020-85A
SPEEDOMETER mph, w/ wiring | EA91/EA92
22
68024-92A
INDICATOR LAMP neutral (green) | EA91/EA92/EL91/EL92
23
68023-92A
INDICATOR LAMP high beam (blue) | EA91/EA92/EL91/EL92
24
68740-91A
INDICATOR LAMP turn signals (amber) | EA91
25
68022-92A
INDICATOR LAMP oil pressure (red) | EA91
26
68608-83
SPEED NUT | EA91/EA92
27
72038-71A
SOCKET single pin | EA91/EA92
28
72039-71A
PIN single socket | EA91/EA92
29
72043-71A
CONNECTOR single pin (not illustrated) | EA91/EA92
30
92070-86
PLATE mounting (not illustrated) | EA91/EA92
31
67021-85B
SPEEDOMETER kph (HDI) | EA91/EA92
