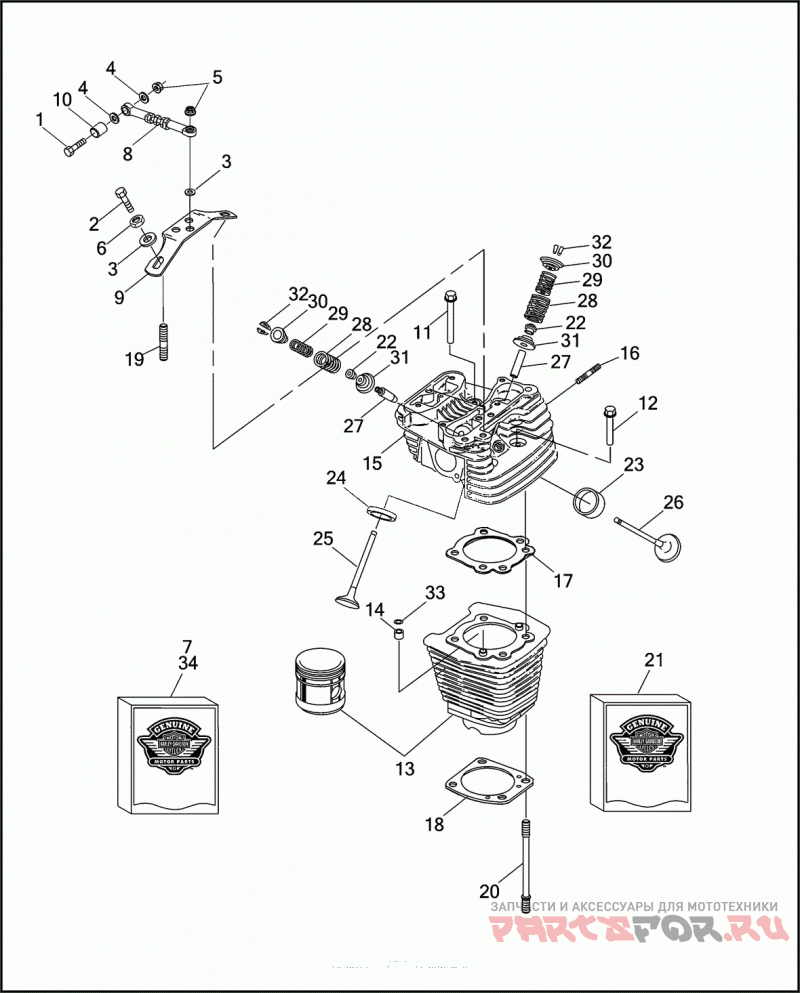

CYLINDERS, HEADS & VALVES V2 ™ - REAR SHOWN

Harley Davidson FXDB 1GBL DYNA STURGIS (1991)

Harley Davidson
#oem кодцена
1
855B
SCREW 3/8-16 X 2 KNURLED HD.
3
6019
WASHER 3/8 X 29/32 X 1/16
4
6701
WASHER 3/8 X 13/16 X 1/16
5
7601
LOCKNUT 3/8-16 FLANGE
6
7775
LOCKNUT 3/8-24 X 7/16 X 9/16
7
16163-91
ENGINE ASSEMBLY COMPLETE (1340 CC) (BLACK) (CALIFORNIA)
8
16219-79C
STABILIZER LINK TOP
9
16238-90
BRACKET ENGINE MOUNTING (BLACK)
10
16241-90
Проставка
11
16478-85A
SCREW INTERNAL THREAD
12
16480-85A
SCREW INTERNAL THREAD
13
16512-86A
CYLINDER W/ PISTON (BLACK WRINKLE)
14
16573-83A
INSERT CYLINDER STUD
15
16692-85C
HEAD FRONT CYLINDER, W/ GUIDES & SEATS (BLACK WRINKLE)
15
16696-85B
HEAD REAR CYLINDER, W/ GUIDES & SEATS (BLACK WRINKLE)
16
16715-83
STUD EXHAUST PORT
17
16770-84F
GASKET CYLINDER HEAD
18
16774-86D
GASKET CYLINDER BASE (PAPER)
20
16837-85C
STUD CYLINDER BASE
21
17033-83A
GASKET KIT TOP END
21
17035-83B
GASKET KIT ENGINE OVERHAUL
22
18001-83B
SEAL VALVE
23
18011-86
INSERT EXHAUST VALVE SEAT
23
18124-83
INSERT EXHAUST VALVE SEAT, 0.005 O.S.
24
18020-83
INSERT INTAKE VALVE SEAT
24
18134-83
INSERT INTAKE VALVE SEAT, 0.005 O.S.
25
18074-83B
Клапан впускной
25
18076-83
INTAKE VALVE 0.03 SHORT
26
18082-83A
Клапан выпускной
26
18087-83
EXHAUST VALVE 0.030 SHORT
27
18101-83D
VALVE GUIDE INTAKE & EXHAUST
27
18130-83D
VALVE GUIDE INTAKE & EXHAUST, 0.001 O.S.
27
18131-83D
VALVE GUIDE INTAKE & EXHAUST, 0.003 O.S.
27
18133-83B
VALVE GUIDE INTAKE & EXHAUST, 0.002 O.S.
30
18219-83A
COLLAR VALVE SPRING, UPPER
32
18229-83A
RETAINER VALVE COLLAR
33
26432-76A
O-RING CYLINDER STUD INSERT
