Переднее колесо для мотоциклов Harley Davidson FXDB 1GBL DYNA STURGIS (1991) (1991)

Москва и регионы России

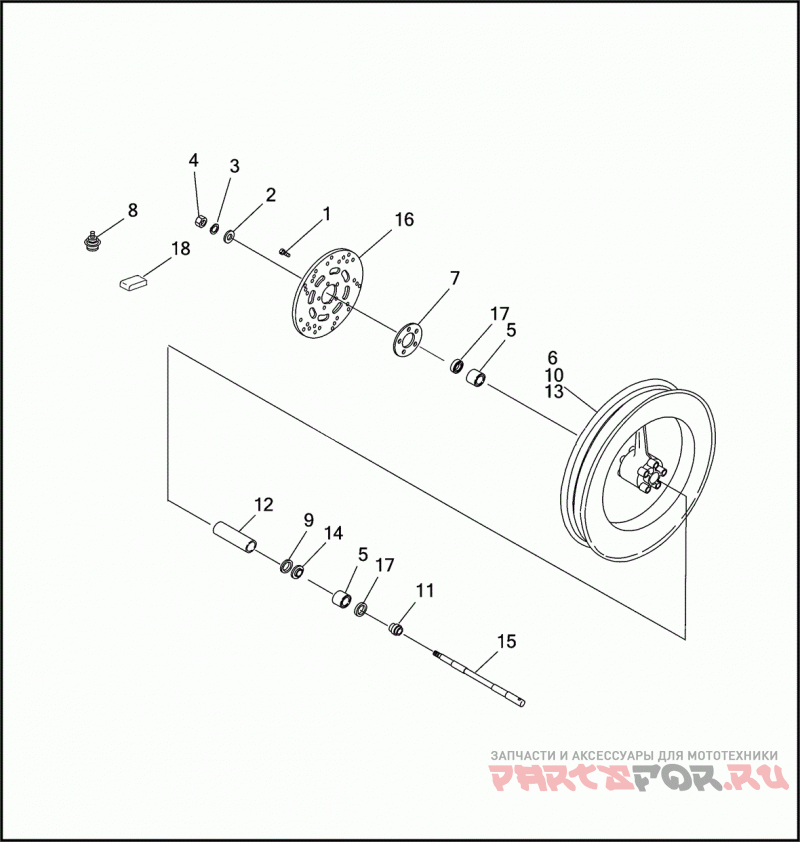

Переднее колесо

Harley Davidson FXDB 1GBL DYNA STURGIS (1991)

Переднее колесо

#

oem код

название

цена

1

SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)

SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)

2

WASHER 1/2 X 1-1/8 X 3/32

WASHER 1/2 X 1-1/8 X 3/32

3

LOCKWASHER 1/2

LOCKWASHER 1/2

4

NUT 1/2-20 X 7/16 X 3/4 (GRADE 2)

NUT 1/2-20 X 7/16 X 3/4 (GRADE 2)

5

Роликовый подшипник

Роликовый подшипник

7

HUB PLATE (SILVER)

HUB PLATE (SILVER)

8

VALVE STEM

VALVE STEM

10

WHEEL ASSEMBLY 19 INCHES, 9 SPOKE (RED STRIPE)

WHEEL ASSEMBLY 19 INCHES, 9 SPOKE (RED STRIPE)

11

SPACER BEARING

SPACER BEARING

12

Гильца

Гильца

12

SLEEVE BETWEEN BEARINGS, 2.564 (VIOLET)

SLEEVE BETWEEN BEARINGS, 2.564 (VIOLET)

12

SLEEVE BETWEEN BEARINGS, 2.550 (PINK)

SLEEVE BETWEEN BEARINGS, 2.550 (PINK)

12

SLEEVE BETWEEN BEARINGS, 2.536 (GOLD)

SLEEVE BETWEEN BEARINGS, 2.536 (GOLD)

13

WHEEL ASSEMBLY 19 INCHES CAST

WHEEL ASSEMBLY 19 INCHES CAST

15

Мост

Мост

16

BRAKE DISC

BRAKE DISC

17

Сальник

Сальник

18

WEIGHT 5 GRAMS FOR CAST WHEEL (BLACK)

WEIGHT 5 GRAMS FOR CAST WHEEL (BLACK)
