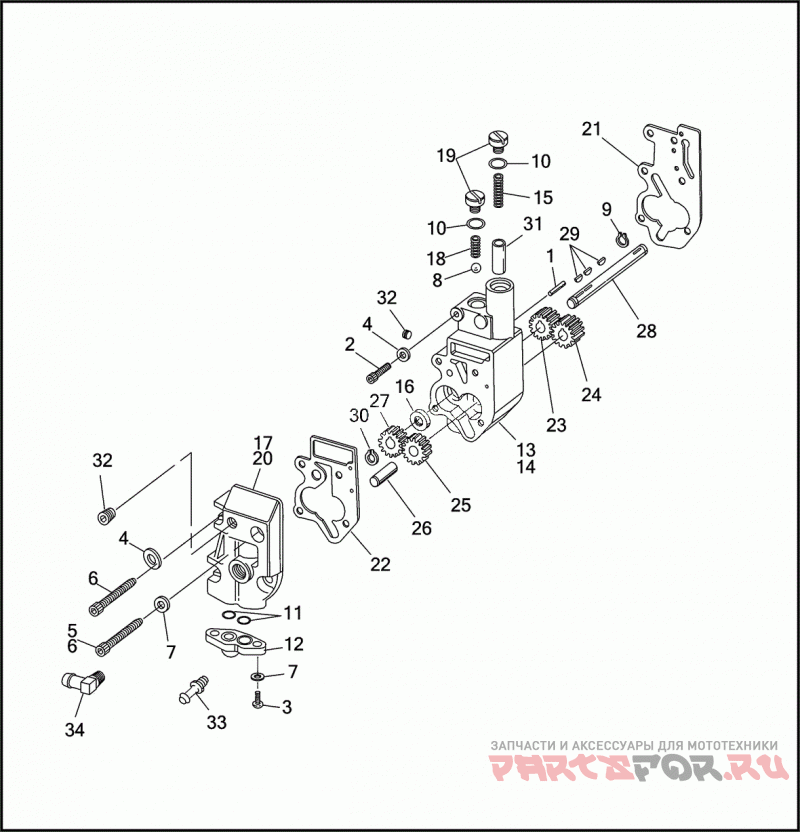

Масляный насос

Harley Davidson FXDB 1GBL DYNA STURGIS (1991)

Harley Davidson
#oem кодцена
1
239
PIN VALVE STOP
2
891
SCREW 1/4-20 X 1-3/4 SOCKET HD. (GRADE 8)
4
6239
WASHER 1/4 X 1/2 X 3/32
5
4718A
SCREW 1/4-20 X 1-1/2 KNURLED HD., W/LOCKPATCH
6
4742A
SCREW 1/4-20 X 2-1/4 KNURLED HD., W/LOCKPATCH
7
6099
WASHER 1/4 X 7/16 X 1/16
8
8873
BALL CHECK VALVE, 3/8 INCH DIAMETER
9
11002
RETAINING RING OIL PUMP
10
11105
O-RING CHECK VALVE COVER SCREW
13
26054-90
OIL PUMP (BLACK WRINKLE)
14
26226-82A
BODY OIL PUMP (BLACK WRINKLE)
15
26207-83
SPRING RELIEF VALVE
16
26227-58
Сальник
17
26268-90
COVER OIL PUMP (BLACK WRINKLE)
18
26262-80
SPRING CHECK VALVE
19
26263-80
COVER SCREW CHECK & RELIEF VALVES
20
26268-90
COVER OIL PUMP (BLACK WRINKLE)
21
26273-80B
GASKET BODY (PAPER)
22
26276-80A
GASKET COVER (PAPER)
23
26315-68A
DRIVE GEAR
24
26317-68A
IDLER GEAR
25
26326-62A
DRIVE IDLER GEAR
26
26327-68
Вал
27
26328-74
DRIVE GEAR
28
26346-70
DRIVE SHAFT
29
26348-15
KEY DRIVE SHAFT
30
26348-36
RETAINING RING DRIVE SHAFT
31
26400-82B
VALVE OIL PUMP
32
45830-48
Заглушка
33
63533-41A
FITTING OIL LINE HOSE
34
63554-90
FITTING 90 DEGREE ELBOW
