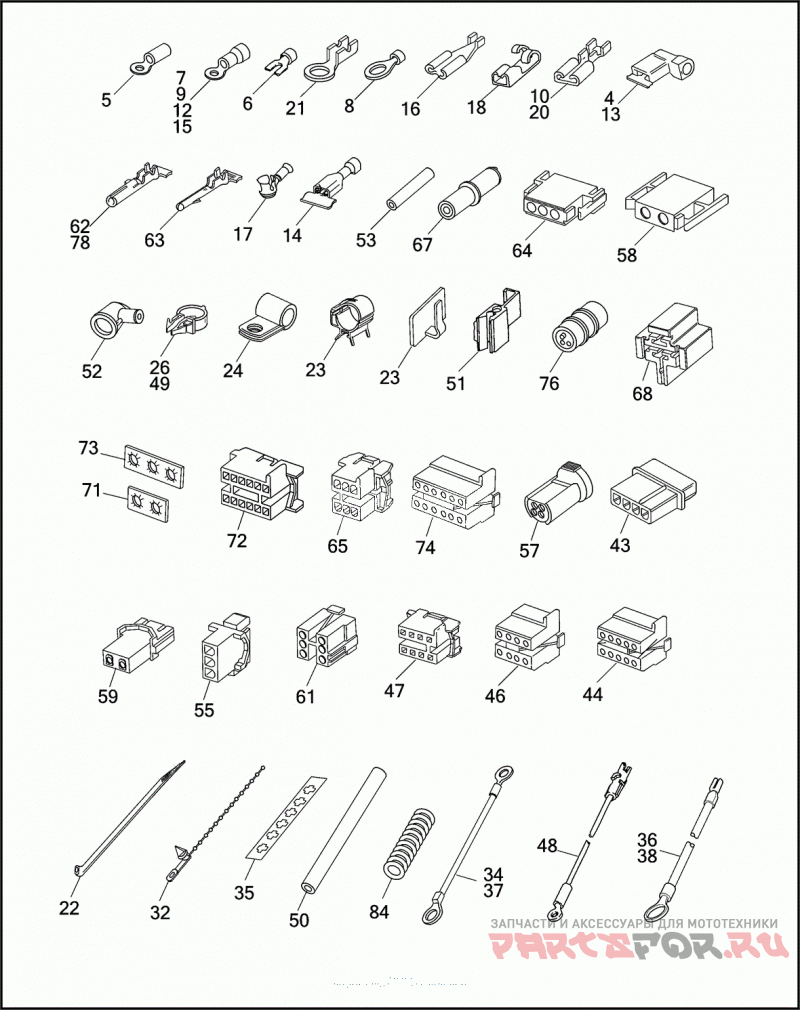

WIRES & TERMINALS

Harley Davidson FLHTP 1DAL ELECTRA GLIDE STANDARD POLICE (WINDSHIELD) (1991)

Harley Davidson
#oem кодцена
1
7036
WASHER 1/4 X 31/64 X 1/16
1
7069
LOCKWASHER NO. 10
2
7638
NUT NO. 10-32 X 1/8 X 3/8 (GRADE 2)
3
8685
RIVET (NOT ILLUSTRATED)
5
9857
WIRE TERMINAL RING TYPE
5
9858
WIRE TERMINAL RING TYPE
5
9860
WIRE TERMINAL RING TYPE
6
9861
WIRE TERMINAL SLOTTED TONGUE
7
9862
WIRE TERMINAL RING TYPE
7
9863
WIRE TERMINAL RING TYPE
7
9809
TRIM RING,PRE-INSULT
8
9865
WIRE TERMINAL RING TYPE
8
9866
WIRE TERMINAL RING TYPE
10
9875
WIRE TERMINAL FEMALE SPADE TYPE
12
9892
WIRE TERMINAL RING TYPE
13
9898
WIRE TERMINAL FEMALE SPADE TYPE, INSULATED
14
9900
WIRE TERMINAL CONNECTOR
15
9903
WIRE TERMINAL RING TYPE (N/A)
16
9904
WIRE TERMINAL FEMALE SPADE TYPE
17
9905
WIRE TERMINAL CAP TYPE
18
9925
WIRE TERMINAL FEMALE FLAG TYPE
19
9930
WIRE TERMINAL FEMALE SPADE TYPE (NOT ILLUSTRATED)
21
9945
WIRE TERMINAL RING TYPE (U-CLAMP)
22
10006
CABLE STRAP
22
10007
CABLE STRAP
22
10039
CABLE STRAP STARTER CABLE
22
10065
CABLE STRAP
22
10073
CABLE STRAP
24
10077
CLAMP WIRING HARNESS
24
38712-68
CLAMP WIRING HARNESS
25
70285-89
WIRING HARNESS FRONT SECTION (REFER TO SERVICE MANUAL) (NOT ILLUSTRATED)
26
56073-83
WIRE RETAINER
28
69498-87
COUPLING RING (NOT ILLUSTRATED)
29
69506-83
CLAMP CABLE (NOT ILLUSTRATED)
30
69510-83
CONNECTOR PLUG (NOT ILLUSTRATED)
32
70005-70
CABLE STRAP
34
70025-89
CABLE BATTERY NEGATIVE
34
70033-89A
CABLE BATTERY POSITIVE
38
70142-86
WIRE HANDLEBAR GROUND
41
70186-82
GROUND STRAP TRANS. COVER (NOT ILLUSTRATED)
44
70262-79
WIRE SOLENOID TO CIRCUIT BREAKER (N/A)
45
70283-89
WIRING HARNESS IGNITION SWITCH (NOT ILLUSTRATED)
46
70287-81A
CONNECTOR EIGHT PIN
47
70288-81
CONNECTOR EIGHT SOCKET
48
70328-84
WIRING FUEL SENDING UNIT
49
70345-84
RETAINER WIRING HARNESS
51
70576-68
WIRE CONNECTOR
52
70579-65
BOOT INSULATING
53
70581-73
Штуцер
55
70963-84
WIRE ASSEMBLY CIRCUIT BREAKER TO STARTER SOLENOID (N/A)
55
70981-89A
MAIN WIRING HARNESS (REFER TO SERVICE MANUAL)
56
72028-83
SOCKET SIREN (NOT ILLUSTRATED)
57
72029-84
PLUG FOUR WIRE
58
72034-71
HOUSING DOUBLE SOCKET
59
72035-71
HOUSING DOUBLE PIN
61
72037-71
CONNECTOR 6 SOCKET
62
72038-71A
SOCKET SINGLE PIN
63
72039-71A
PIN SINGLE SOCKET
64
72040-71
CONNECTOR THREE SOCKET
65
72041-71
CONNECTOR SIX SOCKET
66
72043-71A
CONNECTOR SINGLE PIN (NOT ILLUSTRATED)
67
72044-71A
CONNECTOR SINGLE SOCKET
70
72050-87
CONNECTOR PLUG SIREN (NOT ILLUSTRATED)
71
72275-74
CONNECTOR TAB TWO TERMINAL
72
72276-74
CONNECTOR TWELVE PIN
73
72277-74
CONNECTOR TAB THREE TERMINAL
74
72278-74A
CONNECTOR TWELVE SOCKET
75
72360-84
TERMINAL BLOCK N/A (NOT ILLUSTRATED)
76
74521-77A
CONNECTOR PIN & SOCKET
77
74536-77A
PIN REGULATOR CONNECTOR (NOT ILLUSTRATED)
78
74539-77A
SOCKET REGULATOR CONNECTOR
79
74539-83A
PIN SINGLE SOCKET (SIREN) (NOT ILLUSTRATED)
80
90771-79
PLUG WIRING HARNESS (NOT ILLUSTRATED)
81
70293-87A
CONNECTOR TEN SOCKET (NOT ILLUSTRATED)
84
62555-95
INSULATOR 1/2 INCH I.D. (NYLON) (8 FT. LONG)
