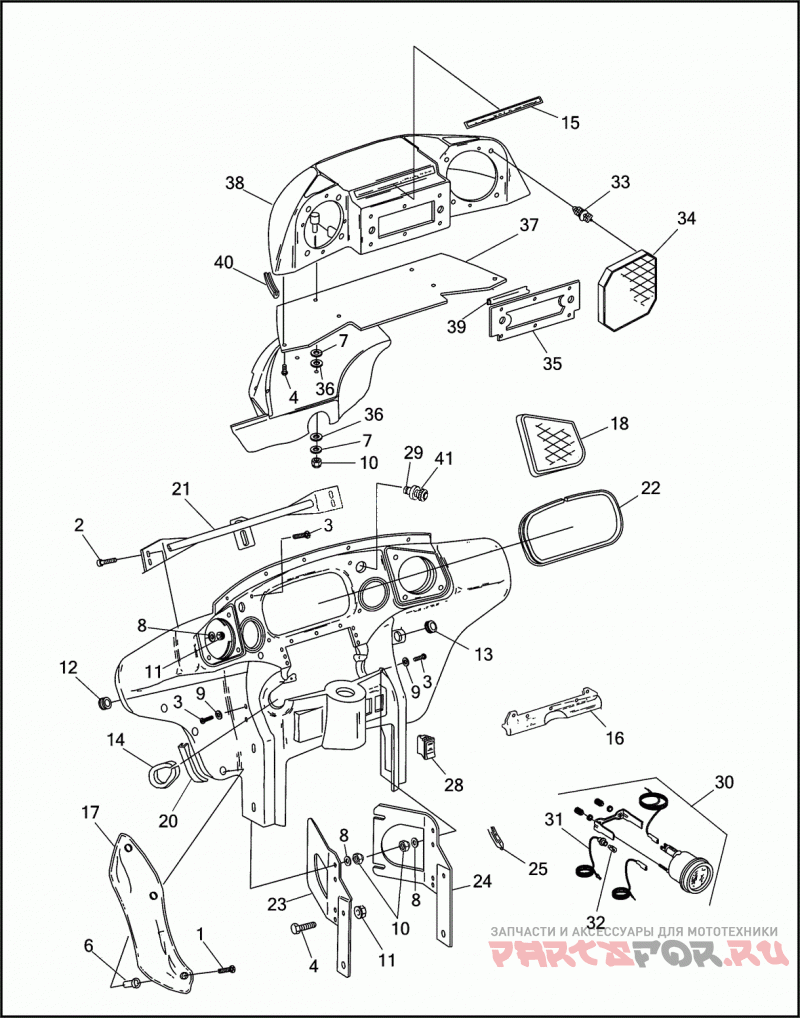

INNER FAIRING, RADIO CADDY & GAUGES

Harley Davidson FLHTCU 1DPL ULTRA CLASSIC (1991)

Harley Davidson
#oem кодцена
1
922
SCREW NO. 6-32 X 3/4 PHILLIPS HD. (BLACK)
2
924
SCREW 1/4-20 X 33/64 SOCKET PAN HD.
3
2513
SCREW 1/4-20 X 1-1/4 SOCKET HD. (BLACK)
4
3574
SCREW 1/4-20 X 3/4 FLANGE
5
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
6
5210
WELL NUT
8
6703
WASHER 1/4 X 5/8 X 1/16
9
6411
WASHER 1/4 X 17/32 X 1/16
10
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
11
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
12
11445
GROMMET CLUTCH CABLE
13
11422
GROMMET THROTTLE CABLES
14
11453
Уплотнитель резиновый
16
56109-88
HANDLEBAR COVER (BLACK)
17
58128-89
AIR DEFLECTOR RIGHT
17
58129-89
AIR DEFLECTOR LEFT
18
58184-86
SPEAKER GRILLE LEFT
18
58186-86
SPEAKER GRILLE RIGHT
19
58480-88
WIRING HARNESS GAUGES (NOT ILLUSTRATED)
20
58311-86
MOLDING INNER FAIRING
21
58322-88A
CROSS BRACE
22
58415-86A
SEAL INSTRUMENT PANEL
23
58478-86A
BRACKET LEFT
24
58479-86A
BRACKET RIGHT
25
61648-85
MOLDING
26
70349-89
HARNESS SPEAKERS (NOT ILLUSTRATED)
27
70158-89
HARNESS LIGHTER (NOT ILLUSTRATED)
28
71505-89
SWITCH AUXILIARY LAMPS
29
91812-89A
SOCKET CIGARETTE LIGHTER
30
74526-86A
VOLTMETER (REPLACES 74527-86)
30
75032-87
GAUGE OIL PRESSURE
31
75044-84
SOCKET W/ WIRES
32
75045-84
BULB 12V
41
91808-89
ELEMENT CIGARETTE LIGHTER
