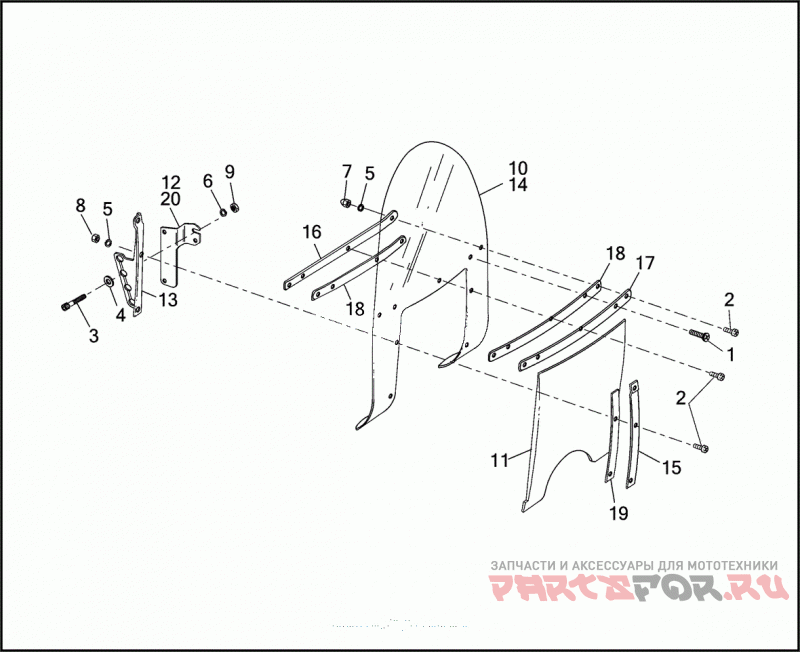

WINDSHIELD - FLHS & FLSTC

Harley Davidson FLHS 1FAL ELECTRA GLIDE SPORT (1991)

WINDSHIELD - FLHS & FLSTC

#

oem код

название

цена

1

SCREW NO. 12-24 X 7/8 TORX HD., W/LOCKPATCH

SCREW NO. 12-24 X 7/8 TORX HD., W/LOCKPATCH

2

SCREW NO. 12 X 5/8 TORX PAN HD.

SCREW NO. 12 X 5/8 TORX PAN HD.

3

BOLT 5/16-24 X 3/4 HEX HD. (GRADE 5)

BOLT 5/16-24 X 3/4 HEX HD. (GRADE 5)

4

WASHER 5/16 X 7/8 X 5/64

WASHER 5/16 X 7/8 X 5/64

5

LOCKWASHER NO. 12

LOCKWASHER NO. 12

6

LOCKWASHER 5/16

LOCKWASHER 5/16

7

ACORN NUT NO. 12-24 (GRADE 2) (CHROME)

ACORN NUT NO. 12-24 (GRADE 2) (CHROME)

8

NUT NO. 12-24 X 5/32 X 7/16

NUT NO. 12-24 X 5/32 X 7/16

9

JAMNUT 5/16-24 X 3/16 X 1/2 (GRADE 2)

JAMNUT 5/16-24 X 3/16 X 1/2 (GRADE 2)

10

WINDSHIELD ASSEMBLY COMPLETE

WINDSHIELD ASSEMBLY COMPLETE

12

Крепление комплект

Крепление комплект

13

ADJUSTING BRACKET RIGHT

ADJUSTING BRACKET RIGHT

13

ADJUSTING BRACKET LEFT

ADJUSTING BRACKET LEFT

14

WINDOW REPLACEMENT KIT

WINDOW REPLACEMENT KIT

15

BRACE RIGHT

BRACE RIGHT

15

BRACE LEFT

BRACE LEFT

16

BRACE INNER

BRACE INNER

17

BRACE OUTER

BRACE OUTER

18

TAPE

TAPE

19

TAPE

TAPE

20

BRACKET KIT WINDSHIELD (REPLACES 58067-83 & 58068-83

BRACKET KIT WINDSHIELD (REPLACES 58067-83 & 58068-83
