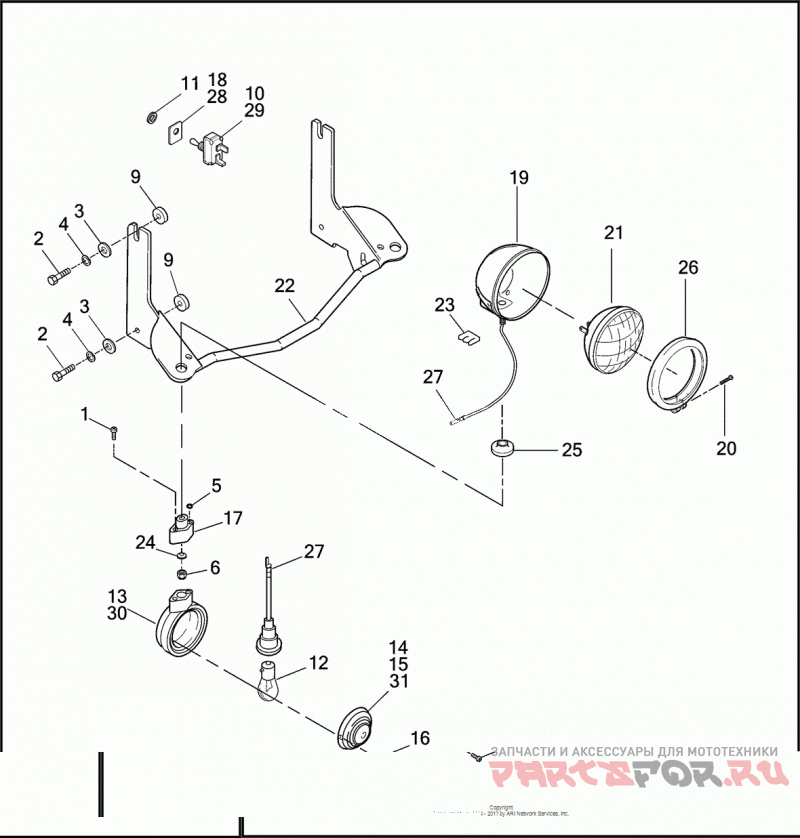

AUXILIARY LAMPS & FRONT TURN SIGNALS - FLHTC, FLHS, FLSTC

Harley Davidson FLHS 1FAL ELECTRA GLIDE SPORT (1991)

Harley Davidson
#oem кодцена
1
2647B
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING
2
4036
BOLT 5/16-24 X 1-1/2 HEX HD. (GRADE 5)
3
6702
WASHER 5/16 X 11/16 X 1/16
4
7041
LOCKWASHER 5/16
5
7069
LOCKWASHER NO. 10
6
7778
LOCKNUT 3/8-16 X 7/16 X 9/16
7
9907
CONNECTOR AUXILIARY LAMP WIRE (NOT ILLUSTRATED)
8
67668-89
CABLE ASSEMBLY AUXILIARY LAMPS (NOT ILLUSTRATED)
9
67749-77
Проставка
10
67858-89
TOGGLE SWITCH AUXILIARY LAMPS
11
67846-70
NUT TOGGLE SWITCH
12
68168-89A
BULB TURN SIGNAL
13
68400-86
TURN SIGNAL
14
68440-86
LENS TURN SIGNAL (AMBER)
15
68451-86
Уплотнительное кольцо
16
68452-86
SCREW W/ O-RING
17
68519-68A
MOUNTING BRACKET
18
68619-83
LABEL AUXILIARY LAMP SWITCH
19
68671-69D
AUXILIARY LAMP
20
68672-38
SCREW AUXILIARY LAMP MOLDING
21
68674-69A
SEALED UNIT AUXILIARY LAMPS
22
68684-86
BRACKET AUXILIARY LAMPS
23
68690-69
CLIP WIRE
24
68720-62
CLAMP BLOCK AUXILIARY LAMPS
25
68721-62
SWIVEL BLOCK AUXILIARY LAMPS
26
68725-62A
MOLDING AUXILIARY LAMPS
27
72039-71A
PIN SINGLE SOCKET
28
14019-83A
LABEL PARK LAMP (HDI)
30
68401-90
TURN SIGNAL (HDI) (USE 68713-94A)
30
68713-94A
TURN SIGNAL (HDI) (REPLACES 68401-90)
31
68505-90
LENS TURN SIGNAL (AMBER)
32
68633-89
LAMP WIRING FOG LAMP (HDI) (NOT ILLUSTRATED)
