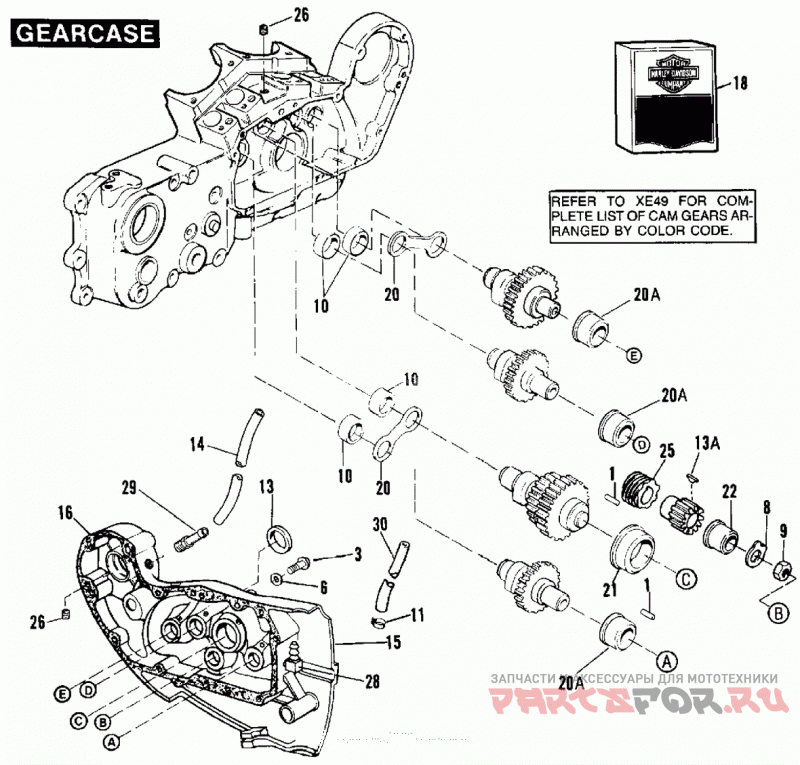

Редуктор

Harley Davidson XL883HUG CEML Sportster 883 Hugger (1990)

Harley Davidson
#oem кодцена
1
275
Палец
4820A
SCREW, 1/4-20 X 2 hex. socket
3
4742A
SCREW, 1/4-20 X 2-1/4 knurled socket hd. (w/lockpatch)
3
3480A
SCREW, 1/4-20 X 1-3/4 knurled socket hd. (Grade 8 steel)
3
3482A
Винт
6
6099
WASHER, 1/4 X 7/16 X 1/16
9
7913
Гайка
10
9057
NEEDLE BEARING, cam gear shaft
11
10014
Зажим
11
10080
Зажим
13
11124
Уплотнение
13A
11219
T-KEY
14
24938-86
Шланг
15
25219-86
COVER, gearcase (polished)
16
25263-86
GASKET, gearcase cover
18
25219-86
COVER, gearcase (polished)
20
25551-58
PLATE, cam gear
20A
25586-37
BUSHING, cam gear shaft
21
25588-57
BUSHING, rear intake cam gear shaft
22
25593-74
BUSHING, flywheel gear shaft
25
26318-88A
DRIVE GEAR OIL PUMP
26
45830-48
PLUG, gearcase cover
28
62375-57A
FITTING upper cover
29
25259-93A
FITTING, straight
30
63500-68
HOSE, 3/8 I.D. x 5/8 O.D. reinforced (25 ft.) | NOTE: Hose is sold in bulk length. Cut to required length.
30
63501-68B
HOSE 1/4 I.D. (25 ft. long) (black) | NOTE: Hose is sold in bulk length. Cut to required length.
