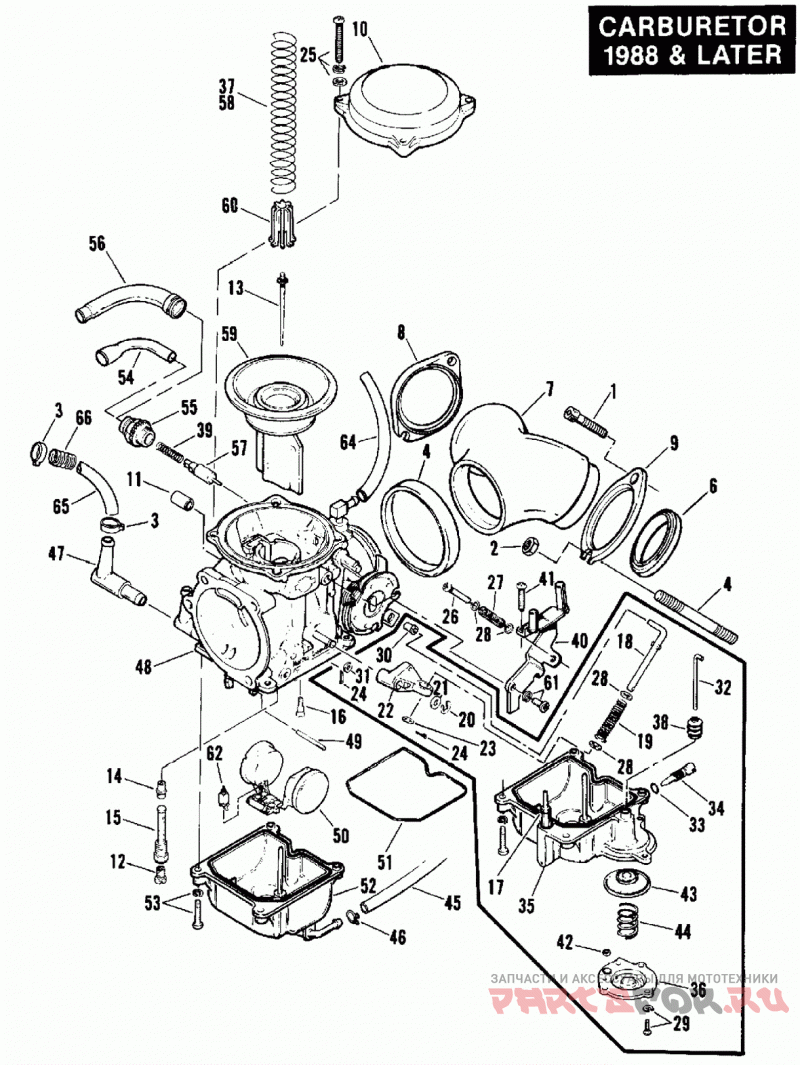

SCREW, 5/16-18 X 1-1/4 knurled soc. hd.

NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)

Зажим

STUD,

SEAL, intake manifold

SEAL RING, carburetor

INTAKE MANIFOLD KIT incl. 5 & 6

MOUNTING FLANGE, front

MOUNTING FLANGE, rear

TOP, carburetor

CAP (rubber)(Swiss only)

Жиклер

JET, needle (Cal. only)

NEEDLE JET

NEEDLE JET HOLDER

SLOW JET

SLOW JET (Cal. only)

Уплотнительное кольцо

Пружина

E-CLIP

Шайба

Рычаг

Шайба

Штифт

SCREW, top

IDLE SCREW

Пружина

WASHER (2; 4 - 1989 & Later)

SCREW WITH WASHER

Манжета

Шайба

Прут

Уплотнительное кольцо

DRAIN SCREW

FLOAT CHAMBER ASSEMBLY

Пружина

CAP, accelerator pump (rubber)

Пружина

Винт

Уплотнительное кольцо

Диафрагмма

Пружина

HOSE, overflow w/ #45

CLIP, overflow hose

Фитинг

CARBURETOR, without accelerator pump (Swiss only)

CARBURETOR

CARBURETOR (CALIFORNIA & SWISS)

Штифт

Поплавок

Уплотнительное кольцо

FLOAT CHAMBER (Swiss only - 1989 & Later)

Винт

CABLE GUIDE

STARTER CAP

CABLE SEALING CAP

STARTER VALVE

SPRING (Swiss only - 1989 & Later)

VACUUM PISTON

Пружины

Винт

VALVE, with clip

HOSE, 3/16 I.D. x 3/8 O.D. reinforced rubber (10 ft. lg.) | NOTE: Hose is sold in bulk length. Cut to required length.

HOSE 1/4 I.D. (25 ft. long) (black) | NOTE: Hose is sold in bulk length. Cut to required length.

INSULATOR, 5/8in. I.D. (nylon) (8 ft. lg.) - Hose or insulator is sold in bulk length. Cut to required length. | NOTE: Hose is sold in bulk length. Cut to required length.
