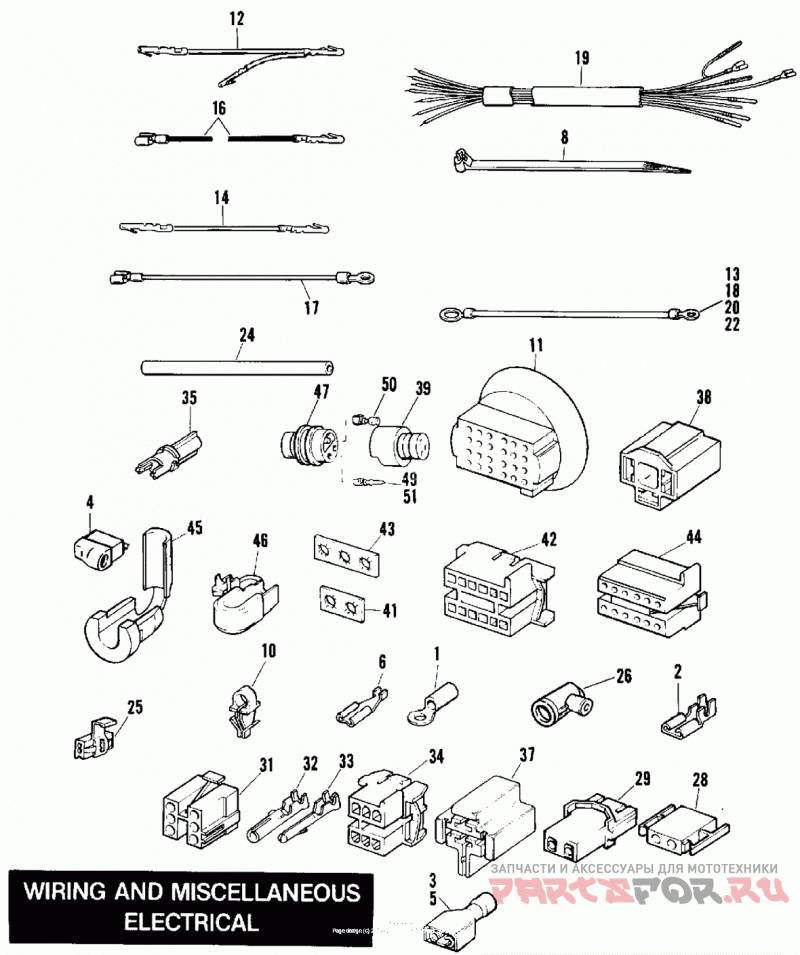

WIRING AND MISCELLANEOUS ELECTRICAL

Harley Davidson XL883 CAML Sportster 883 (1990)

Harley Davidson
#oem кодцена
1
9857
WIRE TERMINAL, ring type, No. 10 XY9900
1
9858
WIRE TERMINAL, ring type, 1/4 dia. hole
1
9862
WIRE TERMINAL, ring type, No. 10 hole
1
9863
WIRE TERMINAL, ring type, 1/4 dia. hole
1
9866
WIRE TERMINAL, ring type, No. 10 hole
2
9875
WIRE TERMINAL, female spade type, 5/16 slot
3
9885
WIRE TERMINAL, female spade type, 13/64 slot
4
9898
WIRE TERMINAL, female spade type, 1/4 slot
5
9900
WIRE TERMINAL, female spade type, 3/16 slot
6
9930
TERMINAL, female spade
6
9937
WIRE TERMINAL, female spade type, 1/4 slot
8
10006
CABLE STRAP
9
10081
CABLE STRAP (double loop)
10
56073-83
CLIP, handlebar wires
11
67839-74
BOOT, headlamp connector
14
70019-86
WIRE, flasher (blue) N/A
14
70022-83
WIRE, to front left handlebar switch (violet)
14
70027-83
WIRE, to front right handlebar switch (brown)
16
70049-83
WIRE, indicator lamp connection (orange)
17
70050-83A
WIRE ASSEMBLY, headlamp ground (black)
18
70076-89A
CABLE BATTERY POSITIVE TO SOLENOID
18
70097-75B
CABLE BATTERY NEGATIVE GROUND
70129-79A
WIRE, battery positive to circuit breaker
19
70135-86
MAIN WIRING HARNESS
20
70191-73A
WIRE, handlebar ground
22
70195-86
GROUND STRAP, horn
24
70551-69
CONDUIT, 1/8 I.D. x 10 ft. lg. (black vinyl)(high temp)
24
70552-69
CONDUIT, 3/8 I.D. x 10 ft. lg. (black vinyl)
24
70553-69
CONDUIT, 7/16 I.D. x 10 ft. lg. (black vinyl)
24
70554-69
CONDUIT, 1/4 I.D. x 10 ft. lg. (black vinyl)
24
70555-69
CONDUIT, 1/4 I.D. x 10 ft. lg. (black vinyl)
24
70556-71
CONDUIT, 5/16 I.D. x 10 ft. lg. (black vinyl)
24
70558-71
CONDUIT, 1/2 I.D. x 10 ft. lg. (black vinyl)
24
70559-71
CONDUIT, 1/8 I.D. x 10 ft. lg. (black vinyl)
25
70576-68
WIRE CONNECTOR
26
70578-89
BOOT, insulating
28
72034-71
CONNECTOR, double socket
29
72035-71
CONNECTOR, double pin
31
72037-71
CONNECTOR, six socket
32
72038-71A
TERMINAL, socket
33
72039-71A
TERMINAL, pin
34
72041-71
CONNECTOR, six pin
35
72043-71A
PIN HOUSING
37
72046-79
HOUSING SOCKET, starter relay
38
72047-71
INSULATOR, spade terminal
39
72051-77A
RECEPTACLE - three-way
41
72275-74
CONNECTOR TAB, two terminal
42
72276-74
HOUSING, pin terminal
43
72277-74
CONNECTOR TAB, three terminal
44
72278-74A
CONNECTOR twelve socket
45
72501-74
BUSHING, straight
46
72502-74
BUSHING, right angle
47
74521-77A
PLUG RECEPTACLE
49
74536-77A
PIN, regulator connector
50
74539-77A
SOCKET, regulator connector
51
74539-83A
PIN single socket (siren) (not illustrated)
