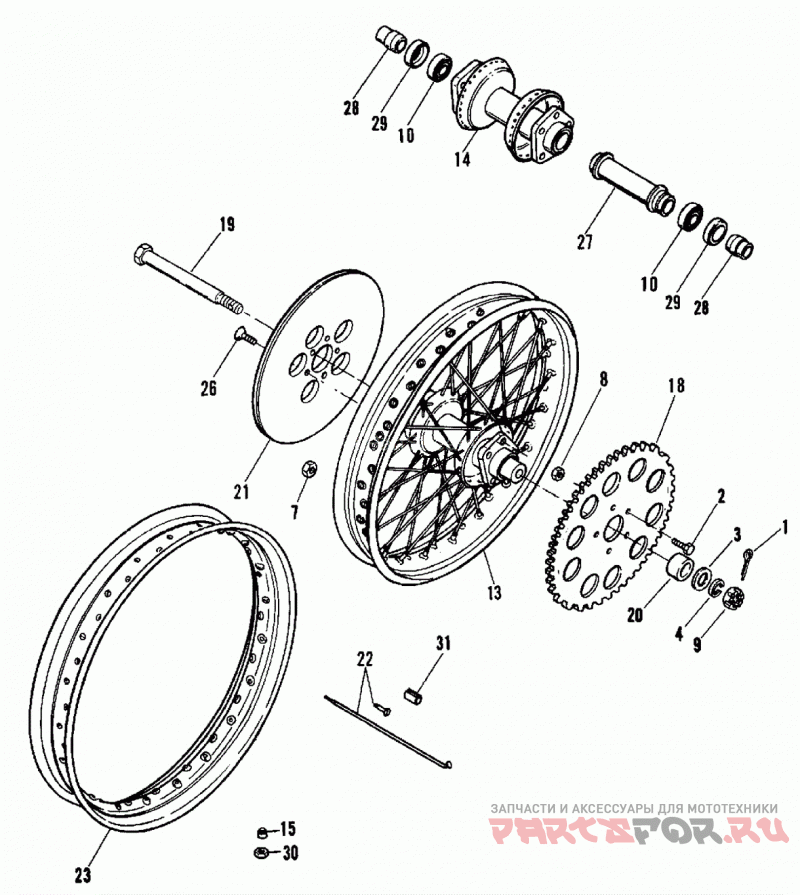

REAR WHEEL - LACED

Harley Davidson XL883 CAML Sportster 883 (1990)

Harley Davidson
#oem кодцена
1
511
Шплинт
2
3782
BOLT, 7/16-14 X 1-1/4 hex. hd. (Grade 5 steel)
3
5756
WASHER, 21/32 X 1-5/16 X 5/8
7
7778
LOCKNUT, 3/8-16 X 7/16 X 9/16 hex.
8
7827W
LOCKNUT, 7/16-14 X 21/64 X 5/8 hex.
7987
CASTLE NUT, 5/8-18 X 15/16 hex
10
9052
Роликовый подшипник
13
40975-86
WHEEL ASSEMBLY, 16in. (chrome)
14
40976-86A
HUB ASSEMBLY, w/ spacer, bearings & seals
15
41123-79
VALVE CAP
18
41470-86T
SPROCKET 48T (CHROME) (NOT ILLUSTRATED)
19
41563-77A
AXLE ASSEMBLY, includes items 1, 3 & 9
20
41594-73
Проставка
21
41789-92
DISC, brake w/# 21
22
43241-05
SPOKE AND NIPPLE SET 16 inch
23
43085-81
RIM, 16in. (chrome)
26
43567-79
SCREW, brake disc
27
43601-78A
SPACER, bearing (with flanges) - 4.420in. (orange)
27
43602-78A
SPACER, bearing (with flanges) - 4.434in. (yellow)
27
43603-78A
SPACER, bearing (with flanges) - 4.448in. (white)
28
43654-86A
Проставка
29
47519-83A
Уплотнение
30
54321-85
NUT, valve stem
31
95578-41
WHEEL WEIGHT, 1/2 oz
31
95581-47
WHEEL WEIGHT, 3/4 oz
31
95582-47
WHEEL WEIGHT, 1 oz
