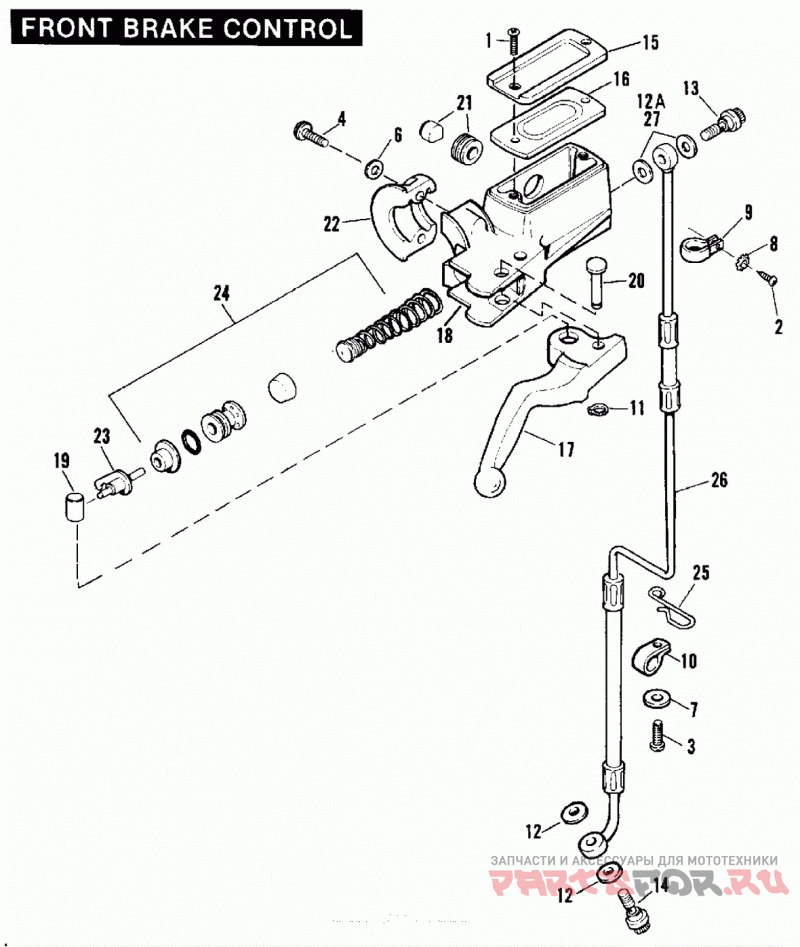

FRONT BRAKE CONTROL

Harley Davidson XL883 CAML Sportster 883 (1990)

Harley Davidson
#oem кодцена
1
2579A
SCREW, #8-32 X 5/16 machine oval head
2
2661W
Винт
3
3594
SCREW, #1/4-20 X 5/8 hex socket head cap
4
4015
SCREW, 1/4-20 X 7/8 socket rd. hd.(black)
6
6099
WASHER, 1/4 X 7/16 X 1/16
7
6703
WASHER, 1/4 X 5/8 X 1 /16
8
7220
LOCKWASHER, No. 10 external tooth
9
10031
Зажим
10
10053
Зажим
11
11143
RETAINING RING, external
12
41731-88A
GASKET, (6 - dual calipers)
12A
41733-88
GASKET, master cylinder (Late 90 to * - All Models)
13
41739-84A
FITTING, master cylinder - single disc
14
41747-82A
BOLT, front brake hose
15
45004-85
COVER, master cylinder
16
45005-85
GASKET, master cylinder cover
17
45016-82A
HAND LEVER
18
45019-85A
MASTER CYLINDER, w/hand lever
19
45031-82A
PIN, stoplamp switch & pushrod
20
45032-82
PIN, handlever pivot
21
45042-82
FLUID LEVEL WINDOW KIT
22
45044-82
CLAMP, master cylinder
23
45051-82
PUSH ROD, stoplight switch & master cylinder
24
45072-87
REPAIR KIT, master cylinder
25
45092-66A
CLAMP, clutch & speedometer cables
26
45121-88C
BRAKE LINE
27
45583-83
GASKET, master cylinder (86 to Early 90 - All Models)
