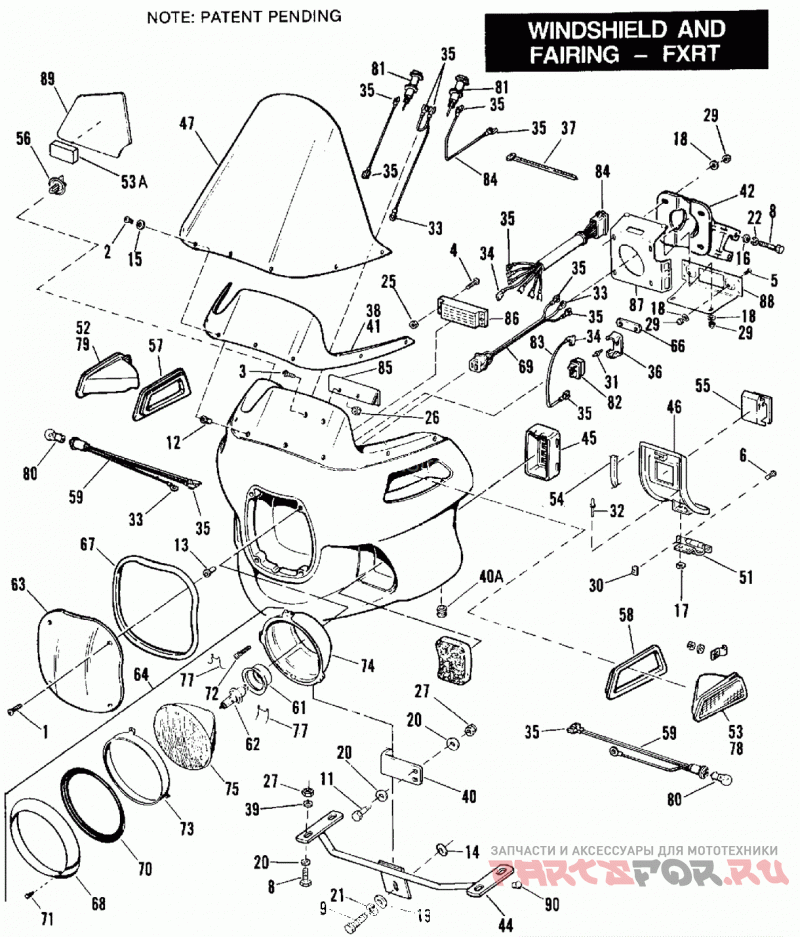

WINDSHIELD & FAIRING - FXRT

Harley Davidson FXRT ECLL FXR Touring (1990)

Harley Davidson
#oem кодцена
1
922
SCREW, No. 6-32 X 3/4 Phillips hd. (black)
2
933
SCREW, No. 10-32 X 15/16 Pozidriv truss hd. (Grade 2 steel)
3
1611
Винт
4
2779
Винт
6
2508
SCREW, No. 10-32 X 1/2 socket rd.hd. (black)
7
2648
Винт
8
3987
BOLT, 5/16-18 X 3/4 hex. hd.(Grade 5 steel)
9
4371WA
Болт
11
3802W
BOLT, 1/4-20 X 7/8 hex. hd. (Grade 5 steel)
12
5207
WELL NUT
13
5210
WELL NUT
14
6019
WASHER, 3/8 X 29/32 X 1/16
15
6053
WASHER, 13/64 X 7/16 X 1/16 nylon (black)
16
6109
WASHER, 5/16 X 11/16 X 1/8
17
6182W
Шайба
18
6333
WASHER, 3/8 X 7/8 X 5/64
19
6701
WASHER, 3/8 X 13/16 X 1/16
20
6703
WASHER, 1/4 X 5/8 X 1 /16
21
7038
LOCKWASHER, 3/8
22
7041
LOCKWASHER, 5/16
26
7626W
LOCKNUT, 3/16-32 (nylon) (Grade 6)
27
7686
LOCKNUT, 1/4-20 X 5/16 X 7/16 hex.
29
7739
LOCKNUT, 5/16-18 X 11/32 X 1/2 hex.
30
8151
SPEED NUT
31
8483A
заклёпка
32
8687
заклёпка
33
9859
TERMINAL, ring type - 5/16in. dia. hole
34
9898
TERMINAL, flag type - #14-16 wire
35
9930
TERMINAL, female spade
36
9952
CLIP, flasher
37
10006
CABLE STRAP
38
14114-86
DECAL, windshield
39
53433-80
WASHER (nylon)
40
57807-86
BRACKET, fairing support - right
40
57808-86
BRACKET, fairing support - left
40A
57980-87
Уплотнитель резиновый
41
58223-86
SEAL, windshield
42
58042-86
BRACKET, fairing mounting
43
58147-86
FILTER, vent
44
57809-86
SUPPORT ASSY.
45
58190-86
VENT LOUVER
46
58212-86
DOOR, fairing
47
58218-86A
WINDSHIELD, 17in. high
47
58219-86A
WINDSHIELD, 22in. high
47
58220-86A
WINDSHIELD, 19.5in. high
51
58454-86
HINGE, fairing door
52
58498-86
TURN SIGNAL, right (amber)
53
58499-86
TURN SIGNAL, left (amber)
53A
58702-86
Подушка
54
58703-86
GASKET, fairing door
55
58706-86
LATCH, door
56
58708-86
CLIP, speaker grille
57
58722-84
GASKET, right turn signal
58
58723-84
GASKET, left turn signal
59
67636-86
SOCKET ASSY.
62
68329-03
BULB, halogen HB2/H-4
63
67700-83
COVER, headlamp
64
67701-83B
HEADLAMP ASSY., complete (halogen)
66
67709-83
BRACKET, flasher mounting
67
67710-83
SEAL, headlamp cover
68
67712-83B
DOOR chrome
69
67715-86
WIRING HARNESS, headlamp
70
67716-60C
GASKET headlamp door (used w/ 67702-81A)
71
67718-60A
SCREW, headlamp door
72
67724-71
Регулировочный Винт
73
67001-08
RETAINING RING KIT, headlamp, w/ 67721-48 & 67732-48 (domestic)
74
67001-08
RETAINING RING KIT, headlamp, w/ 67721-48 & 67732-48 (domestic)
75
67755-81A
HEADLAMP, less bulb - w/boot
76
67778-60A
SPRING, top
77
67780-60A
SPRING, bottom
78
68089-80
LENS, left turn signal (amber)
79
68092-80
LENS, right turn signal (amber)
80
68168-89A
BULB, tail lamp
81
68465-83
INDICATOR LAMP, turn signal
82
68543-64C
FLASHER, DIRECTIONAL, SOLID STATE
83
69512-83
WIRE, term. blk. to flasher (orange)
70147-86
WIRING HARNESS, instr. to term. board
70150-86
WIRING HARNESS, term. board to radio
84
72278-74A
CONNECTOR twelve socket
85
72310-70
BRACKET, terminal block
86
72312-73
TERMINAL BLOCK
87
76170-86
BRACKET, radio support
88
76173-86
BRACKET, radio mounting
89
76234-86
SPEAKER GRILLE, right
89
76236-86
SPEAKER GRILLE, left
90
90493-83
Заглушка
82
68550-83
(HDI Only) FLASHER, turn signal
