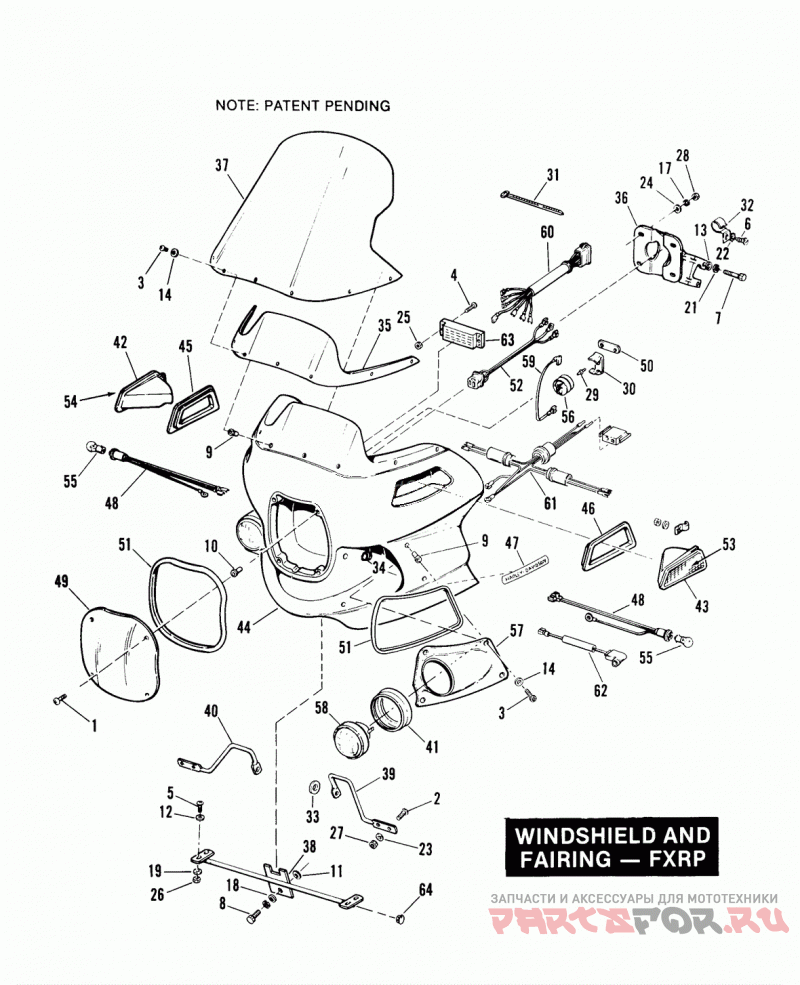

WINDSHIELD AND FAIRING - FXRP

Harley Davidson FXRP EFLL Police Low Rider (1990)

Harley Davidson
#oem кодцена
1
922
SCREW, No. 6-32 X 3/4 Phillips hd. (black) | 85 to * - FXRP
2
923
SCREW, 1/4-20 X 21/32 socket pan hd. | 85 to * - FXRP
3
933
SCREW, No. 10-32 X 15/16 Pozidriv truss hd. (Grade 2 steel) | 85 to * - FXRP
4
1651
SCREW | 85 to * - FXRP
5
2648
SCREW | 85 to * - FXRP
6
2652
SCREW | 85 to * - FXRP
7
2882W
BOLT, 5/16-18 X 5/8 hex. hd. (Grade 5 steel) | 85 - FXRP
3987
BOLT, 5/16-18 X 3/4 hex. hd.(Grade 5 steel) | 86 to * - FXRP
8
4371WA
BOLT | 85 to * - FXRP
9
5207
WELLNUT | 85 to * - FXRP
10
5210
WELLNUT | 85 to * - FXRP
11
6019
WASHER, 3/8 X 29/32 X 1/16 | 85 to * - FXRP
12
6036
WASHER, 17/64 X 1 X 1/16 | Late 84 to * - FXRP
13
6053
WASHER, 13/64 X 7/16 X 1/16 nylon (black) | 85 to * - FXRP
14
6054
WASHER, 3/16 X 9/16 X 1/16 (nylon) (black) | 85 to * - FXRP
?15
6109
WASHER, 5/16 X 11/16 X 1/8 | 85 to * - FXRP
?16
6229W
WASHER, 21/64 X 1 X 1/16 | 85 to * - FXRP
17
6333
WASHER, 3/8 X 7/8 X 5/64 | 85 to * - FXRP
18
6701
WASHER, 3/8 X 13/16 X 1/16 | 85 to * - FXRP
19
6703
WASHER, 1/4 X 5/8 X 1 /16 | 85 to * - FXRP
?20
7038
LOCKWASHER, 3/8 | 85 to * - FXRP
21
7041
LOCKWASHER, 5/16 | 86 to * - FXRP
7042
LOCKWASHER, 5/16 (high collar) | 85 - FXRP
22
7220
LOCKWASHER, No. 10 external tooth | 85 to * - FXRP
23
7230
LOCKWASHER, 1/4 external tooth | 85 to * - FXRP
24
7232
LOCKWASHER, 5/16 external tooth | 85 to * - FXRP
25
7609W
LOCKNUT | 85 to * - FXRP
26
7686
LOCKNUT, 1/4-20 X 5/16 X 7/16 hex. | 85 to * - FXRP
27
7688
NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel) | 85 to * - FXRP
28
7739
LOCKNUT, 5/16-18 X 11/32 X 1/2 hex. | 85 to * - FXRP
29
8483A
RIVET | 85 to * - FXRP
30
9952
CLIP, flasher | 85 to * - FXRP
31
10006
CABLE STRAP | 85 to * - FXRP
10007
CABLE STRAP, wiring harness | 85 to * - FXRP
32
10075
CLAMP, wiring harness N/A | 85 to * - FXRP
33
53433-80
WASHER (nylon) | 85 to * - FXRP
34
57978-63
GROMMET, pursuit lamp wiring | 85 to * - FXRP
35
58014-83
SEAL, between windshield and fairing | 85 to * - FXRP
36
58042-86
BRACKET, fairing mounting - upper | 85 to * - FXRP
37
58091-87A
WINDSHIELD fairing | 87 to * - FXRP
58239-85A
WINDSHIELD, FXRP | 85 to * - FXRP
38
58150-83
SUPPORT ASSEMBLY, lower | 85 to * - FXRP
39
58224-83A
BRACE, left | 85 to * - FXRP
58227-83A
BRACE, right | 85 to * - FXRP
41
58229-85
MOUNTING RING, pursuit lamp | 85 to * - FXRP
42
58498-86
TURN SIGNAL, right | 85 to * - FXRP
43
58499-86
TURN SIGNAL, left | 85 to * - FXRP
44
58654-91
FAIRING (white) | 85 to * - FXRP
45
58722-84
GASKET, right turn signal | 85 to * - FXRP
46
58723-84
GASKET, left turn signal | 85 to * - FXRP
47
61168-81A
DECAL, in.Harley-Davidsonin. - fairing | 85 to * - FXRP
48
67636-86
SOCKET ASSEMBLY | 86 to * - FXRP
49
67700-83
COVER, headlamp | 85 to * - FXRP
50
67709-83
BRACKET, flasher mounting | 85 to * - FXRP
51
67710-83
SEAL | 85 to * - FXRP
52
67714-83
WIRING HARNESS, terminal board to headlamp | 85 to * - FXRP
53
68089-80
LENS, left turn signal | 85 to * - FXRP
54
68092-80
LENS, right turn signal | 85 to * - FXRP
55
68168-89A
BULB, tail lamp | 85 to * - FXRP
56
68543-64C
FLASHER, DIRECTIONAL, SOLID STATE | 85 to * - FXRP
57
68702-84
PURSUIT LAMP POD, right | 85 to * - FXRP
68703-84
PURSUIT LAMP POD, left | 85 to * - FXRP
58
68727-64D
PURSUIT LAMP sealed unit, 12V (red) | 85 to * - FXRP
68728-64C
PURSUIT LAMP sealed unit, 12V (blue) | 85 to * - FXRP
59
69512-83
WIRE, terminal block to flasher (orange) | 85 to * - FXRP
69602-87
WIRING HARNESS, pursuit lamps (not illustrated) N/A | 87 to * - FXRP
60
70176-84
WIRING HARNESS, motorcycle to fairing | 85 to * - FXRP
61
70178-84
WIRING HARNESS, pursuit lamps | 85 to * - FXRP
62
70433-86
DIODE CABLE ASSEMBLY, turn signals | 86 to * - FXRP
63
72312-73
TERMINAL BLOCK | 85 to * - FXRP
64
90493-83
HOLE PLUG | 85 to * - FXRP
