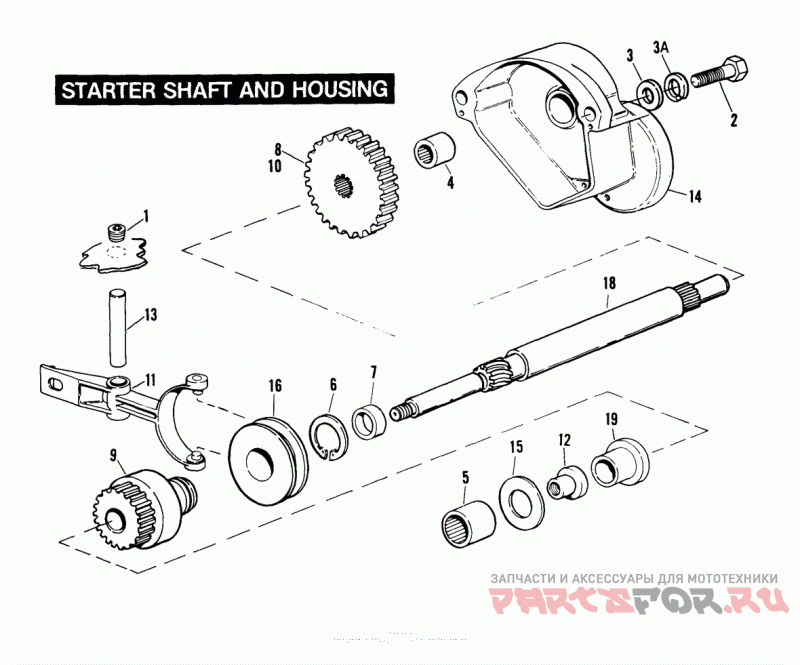

STARTER SHAFT AND HOUSING - LATE 1984 TO 1988

Harley Davidson FXRP EFLL Police Low Rider (1990)

Harley Davidson
#oem кодцена
1
721
PLUG, shift lever pivot pin | Late 84 to 88 - FXRP, FLHTP
2
2818
BOLT, 5/16-18 X 1-1/2 hex. hd. (Grade 5 steel) | Late 84 - FXRP, FLHTP
2887WA
SCREW, 5/16-18 X 1-3/4 hex cap (grade 5) | 85 to 87 - FXRP; 85 to 88 - FLHTP
3485A
SCREW, 5/16-18 X 1-3/4 knurled socket hd. (Grade 8 steel) | 88 - FXRP, FLHTP
3
6016
WASHER, 11/32 X 11/16 X 1/16 | Late 84 to 88 - FXRP, FLHTP
3A
7041
LOCKWASHER, 5/16 | 88 - FXRP, FLHTP
4
9062
NEEDLE BEARING, starter shaft housing | Late 84 to 88 - FXRP, FLHTP
5
9063
NEEDLE BEARING, chain housing cover | Late 84 to 88 - FXRP, FLHTP
6
11039
RETAINING RING, shifter collar | Late 84 to 88 - FXRP, FLHTP
7
11041
SPACER, starter shaft | Late 84 - FXRP, FLHTP
8
31340-80
GEAR, starter shaft | 85 to 88 - FXRP, FLHTP
9
31443-65B
STARTER DRIVE | Late 84 to 88 - FXRP, FLHTP
10
31485-65
GEAR, starter shaft | Late 84 - FXRP, FLHTP
11
31491-79
SHIFT LEVER, starter gear | Late 84 to 88 - FXRP, FLHTP
12
31493-67
NUT, starter shaft | Late 84 to 88 - FXRP, FLHTP
13
31495-79
PIVOT PIN, shift lever | Late 84 to 88 - FXRP, FLHTP
14
31497-83
STARTER SHAFT HOUSING, w/9062 BEARING | Late 84 & 85 - FXRP, FLHTP
31572-86
STARTER SHAFT HOUSING, w/9062 BEARING | 86 to 88 - FXRP, FLHTP
15
31502-65
THRUST WASHER, chain cover | Late 84 to 88 - FXRP, FLHTP
16
31503-65
SHIFTER COLLAR | Late 84 to 88 - FXRP, FLHTP
18
33120-79
STARTER SHAFT | Late 84 - FXRP, FLHTP
33120-85
STARTER SHAFT | 85 to 88 - FXRP, FLHTP
19
33121-79
SPACER, starter shaft | Late 84 to 88 - FXRP, FLHTP
