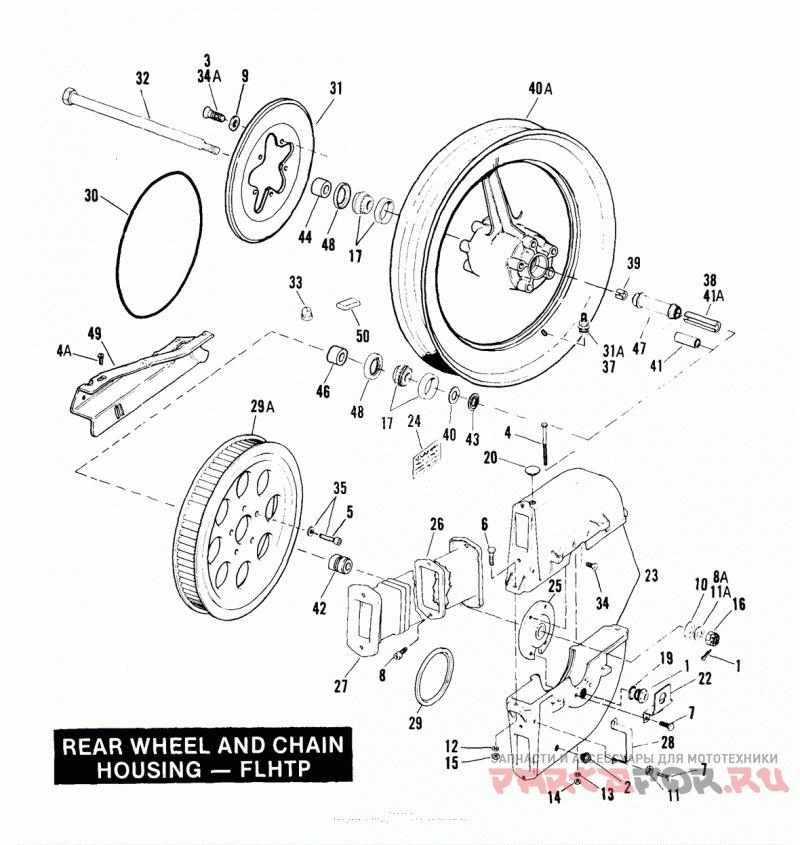

REAR WHEEL AND CHAIN HOUSING - FLHTP

Harley Davidson FXRP EFLL Police Low Rider (1990)

Harley Davidson
#oem кодцена
1
511
COTTER PIN | 89 to * - FLHTP
?1A
708A
PLUG, with O-ring | Late 84 - FLHTP
2
717
PLUG, with O-ring | Late 84 - FLHTP
3
1642
SCREW | Late 84 to * - FLHTP
4
2002
SCREW | Late 84 - FLHTP
4A
2739
SCREW, 1/4-28 X 1/2 Phillips truss hd. (w/lockwasher)(chrome) | 85 to 87 - FLHTP
3537
SCREW, 1/4-28 X 1/2flange lock | 88 to * - FLHTP
5
3542A
SCREW, HEX SOCKET HEAD CAP | Late 84 - FLHTP
6
3825
BOLT | Late 84 - FLHTP
8
4069A
SCREW, 1/4-20 X 3/4 knurled socket hd. | 86 to * - FLHTP
8A
5756
WASHER, 21/32 X 1-5/16 X 5/8 | 89 to * - FLHTP
9
6127
WASHER | 86 to * - FLHTP
10
6655
WASHER, 5/8 X 1-1/2 X 3/32 | Late 84 to 88 - FLHTP
11
6703
WASHER, 1/4 X 5/8 X 1 /16 | Late 84 - FLHTP
11A
7022
LOCKWASHER | Late 84 to 88 - FLHTP
12
7036
LOCKWASHER, 1/4 | Late 84 - FLHTP
13
7069
LOCKWASHER, No. 10 | Late 84 - FLHTP
14
7620W
NUT, No. 10-24 X 1/8 X 3/8 hex.(Grade 2 steel) | Late 84 - FLHTP
15
7676
NUT | Late 84 - FLHTP
16
7986
NUT | Late 84 to 88 - FLHTP
7987
CASTLE NUT, 5/8-18 X 15/16 hex | 89 to * - FLHTP
17
9052
ROLLER BEARING | Late 84 to * - FLHTP
19
11115
O-RING | Late 84 - FLHTP
20
11428
PLUG, chain housing fill | Late 84 - FLHTP
22
25402-79A
BRACKET, rear | Late 84 - FLHTP
23
25403-82A
CHAIN COVER ASSEMBLY | Late 84 - FLHTP
25
25410-79A
SPACER PLATE | Late 84 - FLHTP
26
25411-79
PLATE, boot mounting | Late 84 - FLHTP
27
25412-79
BOOT, chain | Late 84 - FLHTP
28
25413-79
BRACKET, front | Late 84 - FLHTP
29
25414-82
SEAL | Late 84 - FLHTP
29A
40221-85A
SPROCKET, rear wheel | 85 to * - FLHTP
31
40909-92
BRAKE DISC KIT | Late 84 & 85 - FLHTP
40939-86A
DISC, rear brake | 86 to * - FLHTP
31A
40999-87
VALVE STEM ASSEMBLY | Late 87 to * - FLHTP
32
41110-79A
AXLE ASSEMBLY w/ #1, 3 & 5 | Late 84 to 88 - FLHTP
41110-79A
AXLE ASSEMBLY, includes items 1, 8A & 16 | 89 to * - FLHTP
33
41123-79
VALVE CAP | Late 84 to * - FLHTP
34
41191-74A
SCREW 1/2-20 X 5/8 HEX SOCKET FLAT HD., W/LOCKPATCH | Late 84 to * - FLHTP
34A
41198-73
SCREW | 86 to * - FLHTP
41521-83
SPROCKET, only - 48 T (not illustrated) | Late 84 - FLHTP
37
43157-83A
VALVE STEM ASSEMBLY | Late 84 to Early 87 - FLHTP
38
43288-82
SLEEVE, inner - 4-5/16in. long | Late 84 - FLHTP
39
43289-82
SLEEVE, inner - 3/4in. long | Late 84 - FLHTP
40
43290-82
SPACER, 0.032 thick | Late 84 to * - FLHTP
43291-82
SPACER, 0.016 thick | Late 84 to * - FLHTP
43292-82
SPACER, 0.008 thick | Late 84 to * - FLHTP
43293-82
SPACER, 0.004 thick | Late 84 to * - FLHTP
43294-82
SPACER, 0.002 thick | Late 84 to * - FLHTP
40A
43299-83
WHEEL ASSEMBLY, cast - 16-spoke (black) N/A | Late 84 - FLHTP
43299-85
WHEEL ASSEMBLY, cast - 16-spoke (black) | 85 - FLHTP
43402-87A
WHEEL ASSEMBLY 16 inches cast, 10 spoke (black) | 86 to Early 87 - FLHTP
41
43608-82
SLEEVE, bearing spacer | Late 87 to * - FLHTP
41A
43615-82
SLEEVE | 85 to * - FLHTP
42
43648-85
SPACER, left | Late 84 - FLHTP
43648-86
SPACER, left | 86 to * - FLHTP
43
43650-82
SPACER WASHER | Late 84 to * - FLHTP
44
43651-85
SPACER, right | 85 - FLHTP
43653-82
SPACER | 86 to * - FLHTP
43654-86A
SPACER (right - 84; 2 - Late 87) | Late 84 & Late 87 to * - FLHTP
46
43667-82
SPACER, left | Late 84 - FLHTP
47
43668-82
SPACER, between bearings | Late 84 to Early 87 - FLHTP
48
47519-83A
OIL SEAL | Late 84 to * - FLHTP
49
60397-85B
DEBRIS DEFLECTOR | 85 to * - FLHTP
50
95594-84B
WEIGHT 5 grams (black) | Late 84 to * - FLHTP
