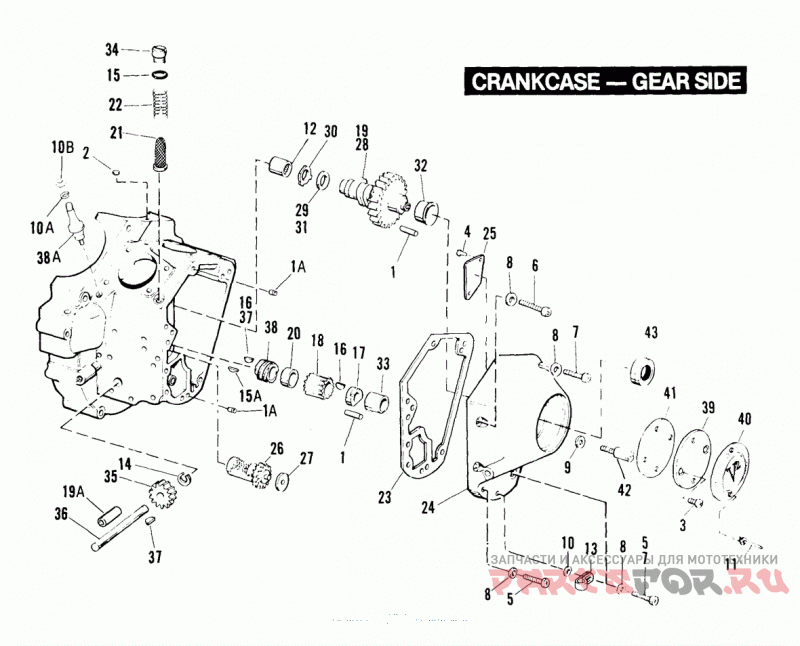

CRANKCASE - GEAR SIDE

Harley Davidson FXRP EFLL Police Low Rider (1990)

Harley Davidson
#oem кодцена
1
275
DOWEL PIN (2 - as required) | Late 84 to * - FXRP, FLHTP
1A
358
PLUG, crankcase - sprocket side | Late 84 to * - FXRP, FLHTP
2
653
PLUG, crankcase | Late 84 to * - FXRP, FLHTP
3
1601
SCREW, No. 8-32 X 1/2 Pozidrivflat ctsk. hd. (Grade 2 steel) | Late 84 to * - FXRP, FLHTP
4
2441
SCREW No. 10-24 X 1/2 TORX pan hd. | Late 84 to * - FXRP, FLHTP
5
4718A
SCREW, 1/4-20 X 1-1/2 knurled socket hd. w/ washer (w/lockpatch) | Late 84 to * - FXRP
4740A
SCREW, 1/4-20 X 1-1/4 knurled socket hd. (w/lockpatch) | 85 to * - FLHTP
6
3480A
SCREW, 1/4-20 X 1-3/4 knurled socket hd. (Grade 8 steel) | Late 84 to * - FXRP, FLHTP
7
4813A
SCREW, 1/4-20 X 1-3/8 knurled socket hd. (w/lockpatch) | Late 84 to * - FXRP, FLHTP
8
6099
WASHER, 1/4 X 7/16 X 1/16 | Late 84 to * - FXRP, FLHTP
9
6192
WASHER, No. 8 X 7/16 X 3/64 | Late 84 & 85 - FXRP, FLHTP
10
6242W
WASHER | Late 84 to * - FXRP, FLHTP
10A
7069
LOCKWASHER, No. 10 | Late 84 to * - FXRP, FLHTP
10B
7634
NUT, No. 10-32 X 5/16 hex. (brass) | Late 84 to * - FXRP, FLHTP
11
8699
RIVET, ignition cover | Late 84 to * - FXRP, FLHTP
12
9058A
NEEDLE BEARING crankcase cam cover | Late 84 to * - FXRP, FLHTP
13
10046
CLAMP | Late 84 to * - FXRP, FLHTP
14
11002
RETAINING RING, oil pump drive shaft | Late 84 to * - FXRP, FLHTP
15
11105
0-RING | Late 84 to * - FXRP, FLHTP
15A
11219
T-KEY | 90 to * - FXRP, FLHTP
16
23985-54
KEY, gear shaft (2 - 87 & Later) | Late 84 to * - FXRP, FLHTP
17
24022-90
NUT, gear shaft | 90 to * - FXRP, FLHTP
24023-54
NUT, gear shaft | Late 84 to 89 - FXRP, FLHTP
18
24040-78
PINION GEAR, 1.4751 - 56 pitch dia. (orange) | Late 84 to * - FXRP, FLHTP
24041-78
PINION GEAR, 1.4745 - 51 pitch dia. (white) | Late 84 to * - FXRP, FLHTP
24042-78
PINION GEAR, 1.4737 - 45 pitch dia. (yellow) | Late 84 to * - FXRP, FLHTP
24043-78
PINION GEAR, 1.4729 - 37 pitch dia. (red) | Late 84 to * - FXRP, FLHTP
24044-78
PINION GEAR, 1.4721 - 29 pitch dia. (blue) | Late 84 to * - FXRP, FLHTP
24045-78
PINION GEAR, 1.4715 - 21 pitch dia. (green) | Late 84 to * - FXRP, FLHTP
24046-78
PINION GEAR, 1.4710 - 15 pitch dia. (black) | Late 84 to * - FXRP, FLHTP
19
24582-83A
CAM AND PINION GEAR SET - matched | Late 84 to 87 - FXRP, FLHTP
24582-88
CAM AND PINION GEAR SET - matched | 88 & 89 - FXRP, FLHTP
24582-90
CAM AND PINION SET - matched | 90 to * - FXRP, FLHTP
19A
24641-36
BUSHING, oil pump shaft | Late 84 to * - FXRP, FLHTP
20
24703-54B
SPACER, gear shaft pinion | Late 84 & 89 - FXRP, FLHTP
24704-90
SPACER, gear shaft pinion | 90 to * - FXRP, FLHTP
21
24981-70
OIL SCREEN, crankcase | Late 84 to * - FXRP, FLHTP
22
24982-70
SPRING, oil screen | Late 84 to * - FXRP, FLHTP
23
25225-70C
GASKET gear cover | Late 84 to * - FXRP, FLHTP
24
25258-80B
GEAR COVER | Late 84 to * - FXRP, FLHTP
25
25275-82
COVER, breather valve | Late 84 to * - FXRP, FLHTP
26
25310-82A
BREATHER VALVE GEAR | Late 84 to * - FXRP, FLHTP
27
25320-82
THRUST WASHER, breather valve - 0.130 thick (plastic) | Late 84 to * - FXRP, FLHTP
25321-82
THRUST WASHER, breather valve - 0.135 thick (plastic) | Late 84 to * - FXRP, FLHTP
25322-82
THRUST WASHER, breather valve - 0.140 thick (plastic) | Late 84 to * - FXRP, FLHTP
25323-82
THRUST WASHER, breather valve - 0.145 thick (plastic) | Late 84 to * - FXRP, FLHTP
25325-82
THRUST WASHER, breather valve - 0.150 thick (plastic) | Late 84 to * - FXRP, FLHTP
25326-82
THRUST WASHER, breather valve - 0.155 thick (plastic) | Late 84 to * - FXRP, FLHTP
25327-82
THRUST WASHER, breather valve - 0.160 thick (plastic) | Late 84 to * - FXRP, FLHTP
25328-82
THRUST WASHER, breather valve - 0.165 thick (plastic) | Late 84 to * - FXRP, FLHTP
28
24582-83A
CAM AND PINION GEAR SET - matched | Late 84 to * - FXRP, FLHTP
24582-83A
CAM AND PINION GEAR SET - matched | Late 84 to * - FXRP, FLHTP
29
25550-36
THRUST WASHER, cam gear - 0.050 thick | Late 84 to * - FXRP, FLHTP
30
25550-57A
THRUST WASHER, cam gear | Late 84 to * - FXRP, FLHTP
31
25555-84
THRUST WASHER, cam gear - 0.045 thick | Late 84 to * - FXRP, FLHTP
25551-36
THRUST WASHER, cam gear - 0.055 thick | Late 84 to * - FXRP, FLHTP
25552-36
THRUST WASHER, cam gear - 0.060 thick | Late 84 to * - FXRP, FLHTP
25553-36
THRUST WASHER, cam gear - 0.065 thick | Late 84 to * - FXRP, FLHTP
25554-36
THRUST WASHER, cam gear - 0.070 thick | Late 84 to * - FXRP, FLHTP
25555-36
THRUST WASHER, cam gear - 0.075 thick | Late 84 to * - FXRP, FLHTP
25556-79
THRUST WASHER, cam gear - 0.080 thick | Late 84 to * - FXRP, FLHTP
25557-79
THRUST WASHER, cam gear - 0.085 thick | Late 84 to * - FXRP, FLHTP
25558-79
THRUST WASHER, cam gear - 0.090 thick | Late 84 to * - FXRP, FLHTP
25559-79
THRUST WASHER, cam gear - 0.095 thick | Late 84 to * - FXRP, FLHTP
32
25581-70
BUSHING, gear cover | Late 84 to * - FXRP, FLHTP
33
25582-73
BUSHING, gear cover pinion shaft | Late 84 to * - FXRP, FLHTP
34
26263-80
PLUG, oil | Late 84 to * - FXRP, FLHTP
35
26345-73
DRIVE GEAR, oil pump - 24 T | Late 84 to * - FXRP, FLHTP
36
26346-70
DRIVE SHAFT, oil pump | Late 84 to * - FXRP, FLHTP
37
26348-15
KEY, oil pump gears (2 - 84 to 86) | Late 84 to * - FXRP, FLHTP
38
26349-73A
DRIVE GEAR, oil pump | Late 84 - FXRP, FLHTP
26349-84
DRIVE GEAR, oil pump | 85 to * - FXRP, FLHTP
26354-90
DRIVE GEAR, oil pump | 90 to * - FXRP, FLHTP
38A
26561-84
OIL PRESSURE SWITCH | Late 84 to * - FXRP, FLHTP
39
32504-80A
COVER inner | Late 84 to * - FXRP, FLHTP
40
32524-83
TIMER COVER, outer | Late 84 to * - FXRP, FLHTP
41
32591-80
GASKET, ignition cover | Late 84 to * - FXRP, FLHTP
42
32606-82
SCREW | Late 84 to * - FXRP, FLHTP
43
83162-51
OIL SEAL, bearing | Late 84 to * - FXRP, FLHTP
