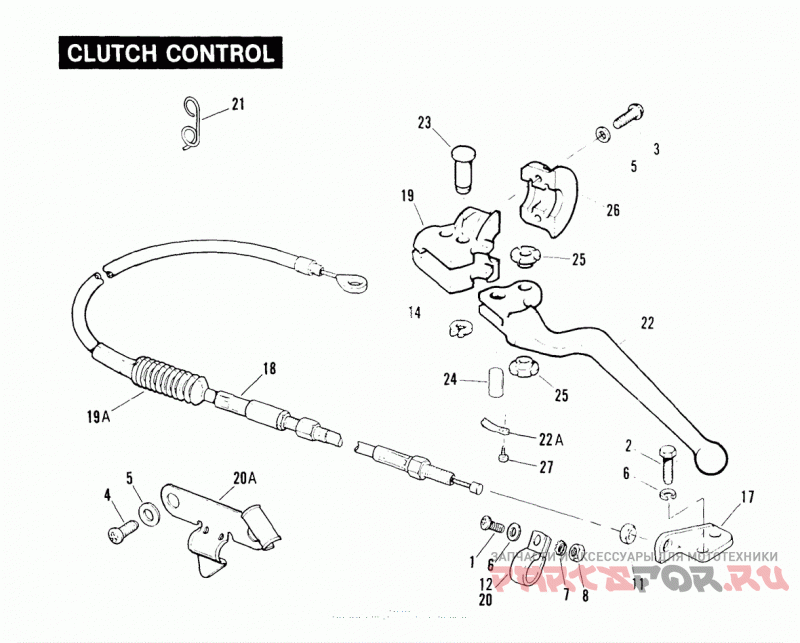

Привод управления сцеплением

Harley Davidson FXRP EFLL Police Low Rider (1990)

Harley Davidson
#oem кодцена
1
2501A
SCREW, #8-32 X 3/8 hex washer head (self tapping) | Late 84 to 86 - FLHTP
2665
SCREW, No. 10-16 X 5/8 pan hd. (Grade 2 steel) | 87 to * - FXRP
3491
BOLT N/A | Late 84 to 86 - FXRP
2
3787
BOLT, 1/4-20 X 3/4 hex. hd. (grade 5 steel) | Late 84 to 86 - FXRP, FLHTP
3
4015
SCREW, 1/4-20 X 7/8 socket rd. hd.(black) | Late 84 to * - FXRP, FLHTP
4
4740A
SCREW, 1/4-20 X 1-1/4 knurled socket hd. (w/lockpatch) | 87 to * - FLHTP
5
6099
WASHER, 1/4 X 7/16 X 1/16 | Late 84 to * - FXRP, FLHTP
6
7036
LOCKWASHER, 1/4 | Late 84 to 86 - FXRP, FLHTP
7
7143
LOCKWASHER | Late 84 to 86 - FXRP
8
7608
NUT, No. 8-32 X 1/8 X 11/32 hex.(Grade 2 steel) | Late 84 to 86 - FXRP
7624
LOCKNUT, No. 10-24 X 1/4 X 3/8 hex. | 87 to * - FXRP
11
7851W
NUT | Late 84 to 86 - FXRP, FLHTP
12
9990W
CLAMP, clutch cable | 87 to * - FLHTP
10059A
CLAMP, clutch cable | Late 84 & 87 to * - FXRP
14
11143
RETAINING RING | Late 84 to * - FXRP, FLHTP
17
37098-83
BRACKET, clutch cable | Late 84 - FXRP, FLHTP
37098-85
BRACKET, clutch cable | 85 & 86 - FXRP, FLHTP
18
38599-83A
CLUTCH CABLE | Late 84 to 86 - FXRP, FLHTP
38601-89
CLUTCH CABLE | 89 to * - FLHTP
38607-87A
CLUTCH CABLE | 87 to * - FXRP; 87 & 88 - FLHTP
19
38608-82B
BRACKET, hand lever | Late 84 to * - FXRP, FLHTP
19A
38630-88
BOOT, clutch cable | 87 to * - FXRP, FLHTP
20
38712-68
CLAMP, clutch cable | Late 84 to 86 - FXRP, FLHTP
20A
38713-87A
CLAMP, clutch cable | 87 to * - FLHTP
21
38714-84
GUIDE, clutch cable | Late 84 to 86 - FLHTP
22
45017-82B
CLUTCH LEVER | Late 84 to 87 - FXRP, FLHTP
45017-88A
HAND LEVER | 88 to * - FXRP, FLHTP
22A
45021-86
SPRING, anti-rattle | 86 to * - FXRP, FLHTP
23
45032-82
PIVOT PIN | Late 84 to * - FXRP, FLHTP
24
45036-82
CABLE ANCHOR PIN | Late 84 to 87 - FXRP, FLHTP
45036-88
CABLE ANCHOR PIN | 88 to - FXRP, FLHTP
25
45039-68
BUSHING, hand lever anchor pin | Late 84 to * - FXRP, FLHTP
26
45044-82
CLAMP, clutch cable clamp | Late 84 to * - FXRP, FLHTP
27
90770-79
SCREW | 86 to * - FXRP, FLHTP
