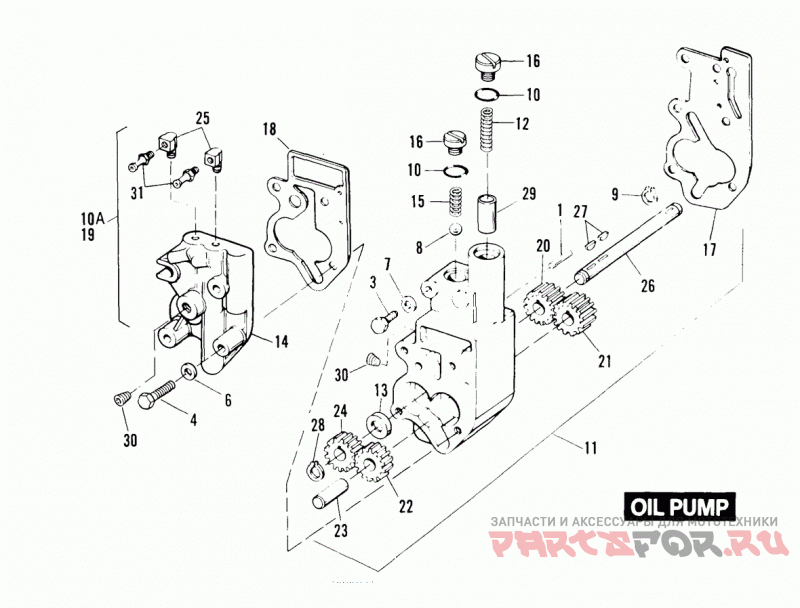

Масляный насос

Harley Davidson FXRP EFLL Police Low Rider (1990)

Harley Davidson
#oem кодцена
1
239
DOWEL PIN | Late 84 to * - FXRP, FLHTP
3
2872W
SCREW, 1/4-20 X 1-1/2 hex cap (grade 5) | Late 84 to * - FXRP, FLHTP
4
3429
BOLT | Late 84 to * - FXRP, FLHTP
6
6736
WASHER, 9/32 X 5/8 X 1/16 | Late 84 to * - FXRP, FLHTP
7
7036
LOCKWASHER, 1/4 | Late 84 to * - FXRP, FLHTP
8
8873
BALL, check valve, 3/8 dia | Late 84 to * - FXRP, FLHTP
9
11002
RETAINING RING, oil pump | Late 84 to * - FXRP, FLHTP
10
11105
O-RING, valve cover screw | Late 84 to * - FXRP, FLHTP
10A
26058-84
COVER ASSEMBLY N/A | Late 84 to * - FXRP
11
26190-73
OIL PUMP KIT | Late 84 to * - FXRP, FLHTP
12
26207-83
SPRING, relief valve | Late 84 to * - FXRP, FLHTP
13
26227-58
OIL SEAL | Late 84 to * - FXRP, FLHTP
14
26242-84
COVER, oil pump | Late 84 to * - FXRP, FLHTP
15
26262-80
SPRING, check valve | Late 84 to * - FXRP, FLHTP
16
26263-80
COVER SCREW, check valve and relief valve | Late 84 to * - FXRP, FLHTP
17
26273-80B
GASKET, oil pump body (paper) | Late 84 to * - FXRP, FLHTP
18
26276-80A
GASKET, oil pump cover (paper) | Late 84 to * - FXRP, FLHTP
20
26315-68A
DRIVE GEAR | Late 84 to * - FXRP, FLHTP
21
26317-68A
IDLER GEAR | Late 84 to * - FXRP, FLHTP
22
26326-62A
DRIVE IDLER GEAR | Late 84 to * - FXRP, FLHTP
23
26327-68
IDLER SHAFT | Late 84 to * - FXRP, FLHTP
24
26328-74
DRIVE GEAR | Late 84 to * - FXRP, FLHTP
25
26338-68A
90° ANGLE; THREAD SIZE - .125 - 27 NPT MALE & FEMALE ; NONE; .239 I.D. | Late 84 to * - FXRP, FLHTP
26
26346-70
DRIVE SHAFT | Late 84 to * - FXRP, FLHTP
27
26348-15
KEY, drive shaft | Late 84 to * - FXRP, FLHTP
28
26348-36
RETAINING RING, drive shaft | Late 84 to * - FXRP, FLHTP
29
26400-82B
RELIEF VALVE, oil pump | Late 84 to * - FXRP, FLHTP
30
45830-48
PLUG | Late 84 to * - FXRP, FLHTP
31
63533-41A
FITTING | Late 84 to * - FXRP, FLHTP
