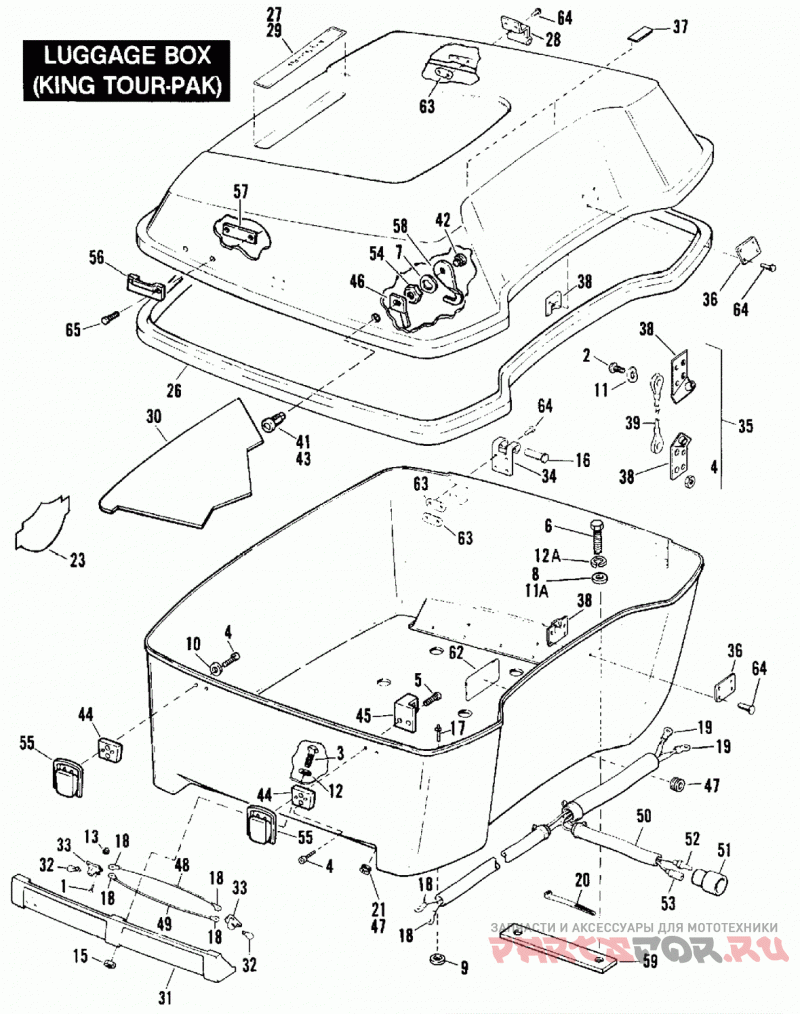

LUGGAGE BOX (KING TOUR-PAK)

Harley Davidson FLTC DBLL Touring Tour Glide Classic (1990)

Harley Davidson
#oem кодцена
1
2804W
SCREW, No. 6-32 X 1/2 Pozidriv pan hd.
2
3595
SCREW, #6-32 X 1/4 torx drive int. w/lockpath
3
2612
Винт
4
3597
SCREW, #6-32 X 9/16 torx pan hd. (thread cutting)
5
3598
SCREW, No. 6-32 X 3/4 Torx pan hd. (thread cutting)
6
3787
BOLT, 1/4-20 X 3/4 hex. hd. (grade 5 steel)
7
6055
Пружинная шайба
9
6716
WASHER, No. 10 X 1/2 X 3/64
10
6717
WASHER, No. 6 X 3/8 X 3/64
11
6970
WASHER, spring, 1/4 X 1/2 X 1/16
11A
7036
LOCKWASHER, 1/4
12
7115
Стопорная шайба
12A
7124
LOCKWASHER, 1/4 internal tooth
13
7520
ACORN NUT, No. 6-32 X 1/4 X 1/4 hex.(nylon)
14
7590
Гайка
15
7608
NUT, No. 8-32 X 1/8 X 11/32 hex.(Grade 2 steel)
16
8500A
HINGE PIN KIT, w/ 3595
17
8688
заклёпка
18
9856
TERMINAL, ring type - No.6 hole
19
9871
TERMINAL, ring type - No.6 hole
20
10065
CABLE STRAP
26
53415-06
Прокладка
27
53424-79
NAMEPLATE, in.KING TOUR-PAKin. (brown)
28
53426-87
HINGE, cover-upper
29
53434-80
NAMEPLATE, in.KING TOUR-PAKin. (black)
30
53435-88
MAT, luggage box
32
53439-79
BULB, side light
33
53440-79
SOCKET, side light
34
53447-87
HINGE, lower
35
53477-80A
BRACE ASSY. luggage box
36
53478-80
BACKING PLATE, brace
37
53486-85
Подушка изолирующая
38
53563-82
BRACKET, cable mtg. (2 - 1987 to 1989)
38
53570-89
BRACKET, cable mtg.
39
53564-89
CABLE BRACE, cover
41
53580-82
CAM LOCK
42
53582-82
Винт с шайбой
43
53587-85
LOCK SET, W/#22, 41, 42 & 54
43
53588-85
LOCK SET, W/#22, 41, 42 & 54
44
53615-85A
Проставка
45
53616-85
CATCH, lower
46
53617-85
GUIDE, lock
47
57978-63
GROMMET (3 - 1989 & Later)
48
70643-79B
WIRE SIDE LIGHT (GREEN)
49
70644-79A
WIRE, side light (black)
50
70646-79
WIRING HARNESS, side light
50
70646-88
WIRING HARNESS, side light
50
70648-89
WIRING HARNESS, luggage box
51
72052-79
RECEPTACLE, side light wire
51
74521-77A
PLUG RECEPTACLE
52
74536-77A
PIN, wiring harness
53
74539-77A
SOCKET, wiring harness (2-DM/P)
54
84850-67
Гайка
55
90681-95A
BODY CATCH
56
90681-95A
BODY CATCH
57
90688-85
BACKING PLATE
58
90689-84
CAM HOOK
59
90743-88
Прокладка
62
90821-74C
LABEL, load limit
63
90964-63
BACKING PLATE
64
90965-63
заклёпка
65
90967-64
заклёпка
