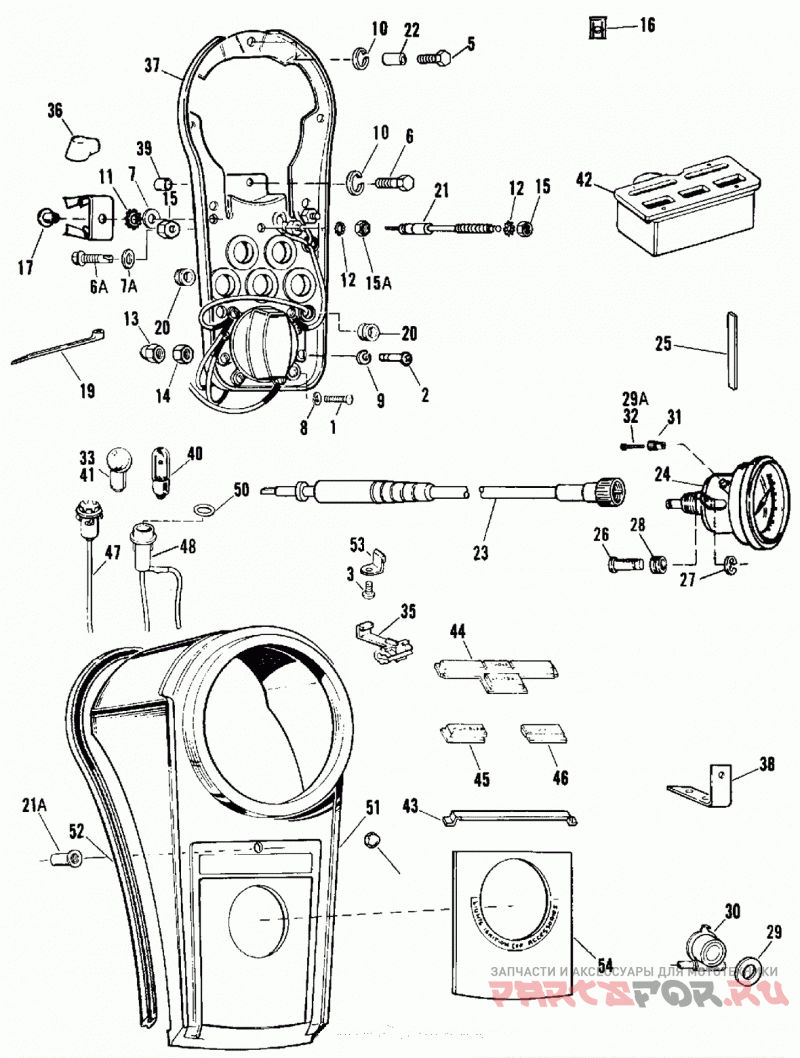

INSTRUMENTS - SOFTAIL MODELS

Harley Davidson FLSTC BJ04 Softail Heritage Classic (1990)

Harley Davidson
#oem кодцена
1
2574WA
Винт
2
2594A
Винт
3
2630W
Винт
5
3419
BOLT, 5/16-18 X 2-1/4 hex. hd. (Grade 5 steel)
6
4068A
BOLT 5/16-18 X 2-1/2 hex hd. (Grade 5)
6A
4739A
BOLT 5/16-18 X 1-3/4 HEX HD.
7
6192
WASHER, No. 8 X 7/16 X 3/64
7A
6701
WASHER, 3/8 X 13/16 X 1/16
10
7041
LOCKWASHER, 5/16
11
7229W
LOCKWASHER, 1/4 internal/external tooth
12
7232
LOCKWASHER, 5/16 external tooth
12A
7549A
ACORN NUT, 5/16-18 X 9/16 X 1/2 hex
13
7602
ACORN NUT, #10-32 X 21/64 X 27/64
14
7638
NUT, No. 10-32 X 1/8 X 3/8 hex.(Grade 2 steel)
15A
7763W
Гайка
16
8155
SPEED NUT
17
8672
Поп-Заклепки
18
9952
CLIP, circuit breaker
19
10065
CABLE STRAP
20
11430
GROMMET, instrument panel
21
29211-86
CONTROL CABLE, choke
22
62043-81A
SPACER, panel mounting
23
67079-86A
CABLE ASSY., speedometer
24
67027-81E
SPEEDOMETER KIT, DOM
25
67067-76
ISOLATOR STRIP (black)
26
67068-76
PIN, speedometer mounting
27
67069-76
RETAINING RING, speedometer mtg.
28
67070-76
GROMMET, speedometer mtg.
29
67118-87
SEAL, drive unit
29A
67117-85
Винт
30
67125-86A
DRIVE UNIT, speedometer
31
67215-89
KNOB, odometer reset
33
68462-64
BULB, indicator lamps
36
70579-65
INSULATING BOOT
37
70936-87
INSTRUMENT PANEL BASE
38
70936-91B
INSTRUMENT PANEL BASE
39
70941-84A
SPACER, instrument panel mounting
40
71090-64
BULB, speedometer
41
71092-68A
BULB, high beam
42
71134-68
SUPPORT, indicator lamp lens
43
71141-68
RETAINER, indicator lamp lens
44
71143-90
LENS, neutral (green)
45
71144-75A
LENS, high beam (blue)
46
71145-75
LENS, oil pressure (red)
47
71158-86B
SOCKET KIT SPEEDOMETER LAMP
48
71162-70
Патрон
50
71182-47A
WASHER, signal lamp socket
51
71241-68B
COVER, instrument panel (chrome)
52
71295-68
GASKET, instrument panel cover
53
71297-68
CLIP, lens support
54
71300-79
PLATE, ignition switch (chrome)
24
67030-81F
SPEEDOMETER KIT, HDI
