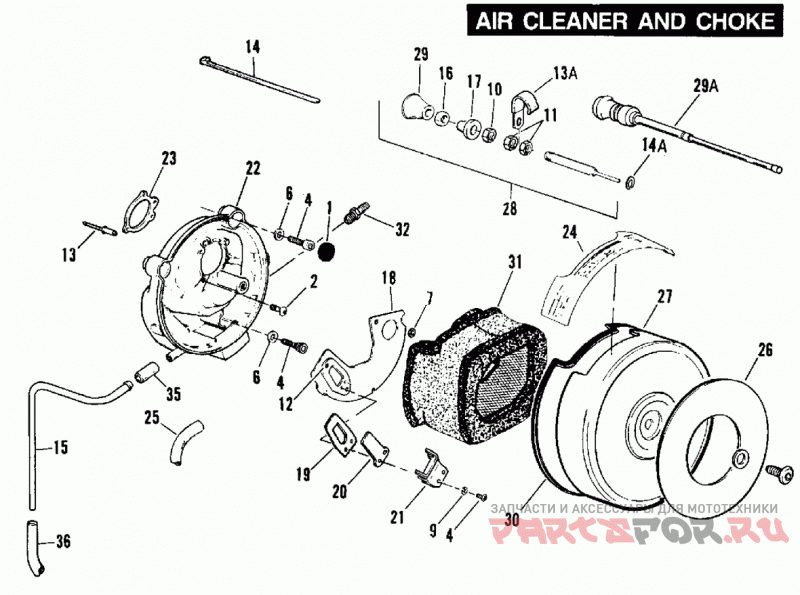

AIR CLEANER & CHOKE

Harley Davidson FLSTC BJ04 Softail Heritage Classic (1990)

Harley Davidson
#oem кодцена
1
738
PLUG, air cleaner
2
864A
Винт
4
2737
SCREW, #4-40 X 1/4 machine pan head
5
3210A
SCREW, 5/16-18 X 1-1/4 knurled soc. hd.
6
6016
WASHER, 11/32 X 11/16 X 1/16
7
6048W
WASHER, 1/8 X 1/4 X 1/32
8
6109
WASHER, 5/16 X 11/16 X 1/8 | NOTE: Pictured to the right of reference number 26.
12
8519
RIVET (Cal. only)
13
8625
POP RIVET (Cal. only)
14
10006
CABLE STRAP
15
24922-86
VENT TUBE (chrome)
18
28816-90
BAFFLE PLATE ASSY. (Cal. only)
18
29068-89
BAFFLE PLATE
19
28820-86
REED BOTTOM (Cal. only)
20
28821-86
REED TOP (Cal. only)
21
28825-86
REED STOP (Cal. only)
22
29017-90
BACKPLATE ASSY. (Cal. only)
22
29134-90
BACKPLATE ASSY.
23
29059-88A
Прокладка
24
29126-90B
SAFETY LABEL
25
29145-86
HOSE, air cleaner to crankcase
26
29161-86
TRIM, - in.HERITAGE(TM) SOFTAILin.
27
29165-89
Крышка воздушного фильтра
29A
29236-90
CABLE, enrichment
30
29252-89
SEAL STRIP
31
29259-89
FILTER ELEMENT
32
29264-86
FITTING (rear - FLT) (Cal. only)
33
29269-83A
SCREW, button head | NOTE: Pictured to the right of reference number 26.
35
63509-86A
чехол
36
63500-68
HOSE, 3/8in. I.D. (rubber)(25 ft. lg.) | NOTE: Hose is sold in bulk length. Cut to required length.
