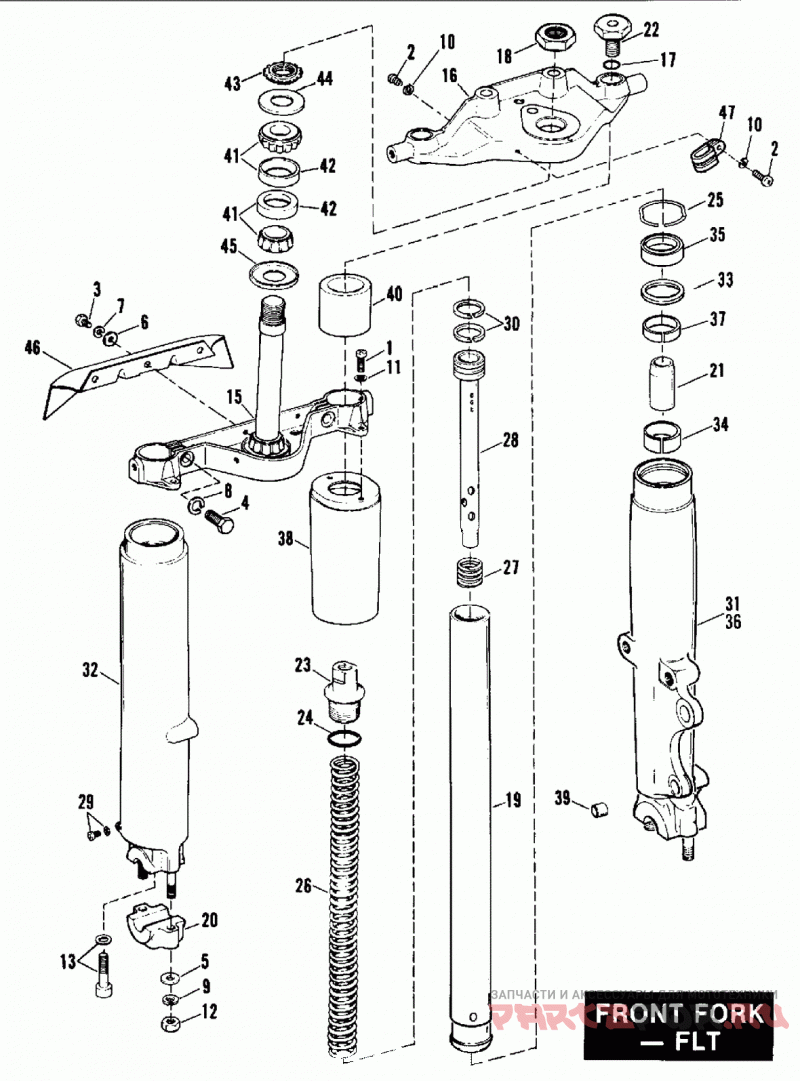

FRONT FORK - FLT MODELS

Harley Davidson FLHTC DJLL Touring Electra Glide Classic (1990)

Harley Davidson
#oem кодцена
1
2417
Винт
2
2592
SCREW, No. 10-24 X 1/2 Pozidriv pan hd. (Grade 2 steel)
2
2661W
Винт
3
3738
Болт
4
4729
BOLT, 7/16-20 X 1-1/4 hex. hd.(Grade 5 steel)
5
6702
WASHER, 5/16 X 11/16 X 1/16
6
6703
WASHER, 1/4 X 5/8 X 1 /16
7
7036
LOCKWASHER, 1/4
8
7039
LOCKWASHER, 7/16
9
7041
LOCKWASHER, 5/16
10
7069
LOCKWASHER, No. 10
11
7124
LOCKWASHER, 1/4 internal tooth
12
7748W
NUT, 5/16-18 X 1/4 X 1/2 hex.(Grade 2 steel)
13
45405-75A
SCREW WITH WASHER, damper tube
15
45446-87A
FORK STEM & BRACKET ASM.
16
45435-83B
Держатель
17
45443-86
Уплотнительное кольцо
18
45718-60
NUT, fork stem
19
45827-84
SLIDER TUBE
20
45832-77A
AXLE CAP, right slider
21
45834-77
LOWER STOP
22
45839-84
CAP, upper bracket
23
45841-84
PLUG, fork tube
24
45845-77
O-RING, slider tube plug
25
45842-77A
RETAINING RING, oil seal
26
45853-83
Пружина
27
45855-77
SPRING, slider tube
28
45857-83
DAMPER TUBE
29
45858-77
DRAIN SCREW, damper tube
30
45859-77A
RING, damper tube
31
45860-84
SLIDER ASSEMBLY, left
32
45863-84
FORK SLIDER, right (polished)
32
45864-84
FORK SLIDER, left (polished)
33
45865-84
SPACER, slider
34
45866-84
BUSHING, slider
35
45875-84A
OIL SEAL, slider
36
45870-84
SLIDER ASSEMBLY, right
37
45940-84
BUSHING, slider
38
45964-86
COVER, slider
39
46020-84
BUSHING, brake caliper
40
47530-79B
FORK STOP (rubber)
41
48300-60
ROLLER BEARING, with cup
42
48315-60
CUP, bearing
43
48333-80
BEARING ADJUSTER
44
48361-80
DUST SHIELD, bearing - upper
45
48365-48A
DUST SHIELD, bearing - lower
46
58520-79B
AIR BAFFLE (gloss black)
47
68659-86
Зажим
45446-87A
FORK STEM & BRACKET ASM.
48140-84A
STEERING HEAD LOCK ASM. (HDI only)
