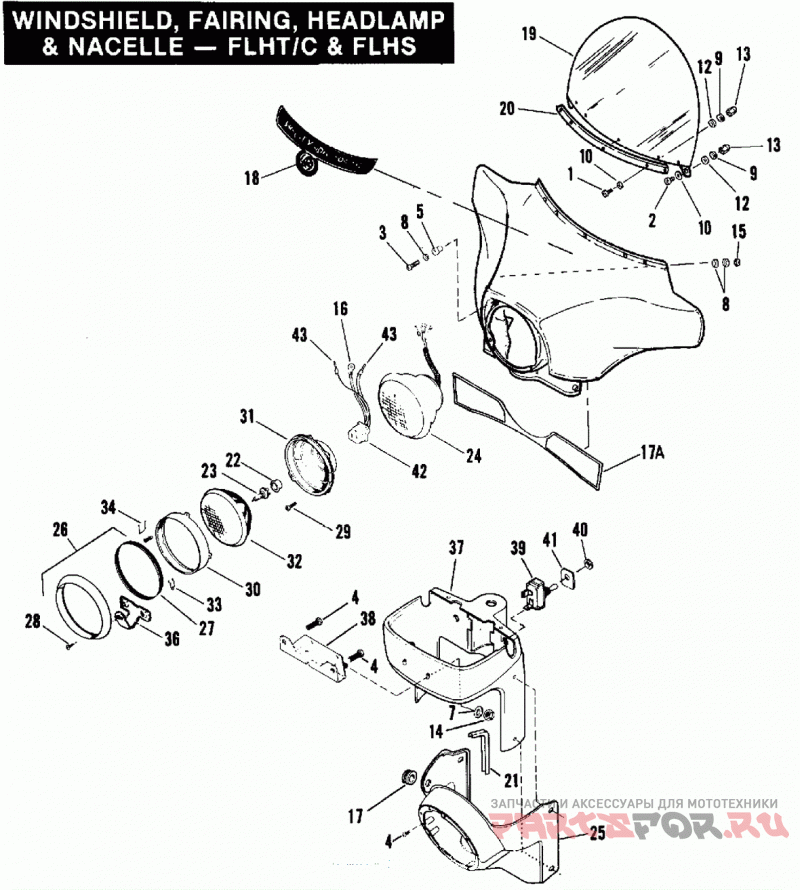

WINDSHIELD, FAIRING, HEADLAMP & NACELLE - FLHT/C, FLHS

Harley Davidson FLHS FALL Touring Electa Glide Sport (1990)

Harley Davidson
#oem кодцена
4
5209
SCREW, hi-lo
7
6703
WASHER, 1/4 X 5/8 X 1 /16
14
7682
LOCKNUT, 1/4-28 X 3/16 X 7/16 hex.
16
9857
TERMINAL, ring type
17
11412
GROMMET, cable routing
21
61117-86
TRIM, rubber
23
68329-03
BULB, halogen HB2/H-4
24
67702-81C
HEADLAMP ASSEMBLY complete, w/ 22, 30, 31, 34, 36, 38, 39, 51, 56, 62, 63, 64 & 65
25
67704-83
NACELLE, headlamp
26
67712-83B
DOOR chrome
27
67716-60C
GASKET headlamp door (used w/ 67702-81A)
28
67718-60A
SCREW, headlamp door
29
67724-71
ADJUSTING SCREW, headlamp
30
67001-08
RETAINING RING KIT, headlamp, w/ 67721-48 & 67732-48 (domestic)
31
67001-08
RETAINING RING KIT, headlamp, w/ 67721-48 & 67732-48 (domestic)
32
67755-81A
HEADLAMP, less bulb - w/boot
33
67778-60A
SPRING, top
34
67780-60A
SPRING, bottom
36
67782-60A
BRACKET, headlamp door
37
67795-85A
DASH PANEL SUPPORT KIT
38
67817-83
BRACKET, headlamp door
39
67858-89
TOGGLE SWITCH, passing lamps
40
67846-70
NUT, toggle switch
41
68619-83
LABEL, passing lamps
42
68634-86
LAMP WIRING & CONNECTOR, headlamp
43
72039-71A
TERMINAL, pin
14019-83A
LABEL ON/OFF SWITCH (Domestic)
