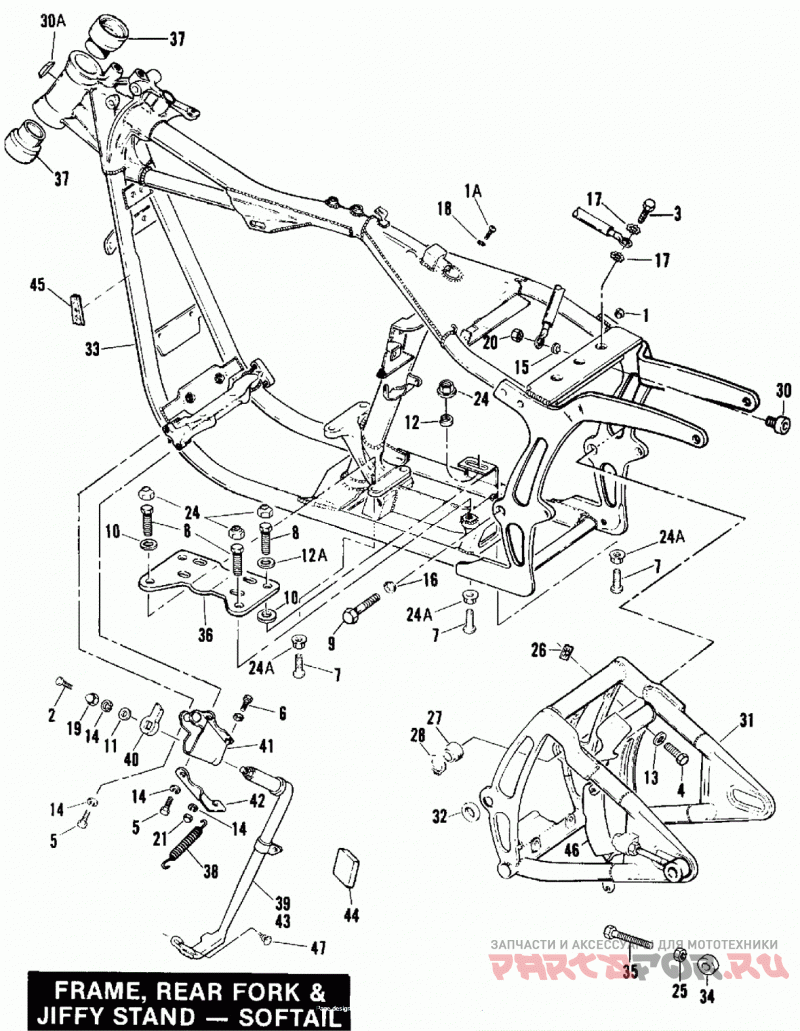

FRAME, REAR FORK & JIFFY STAND - SOFTAIL MODELS

Harley Davidson FXSTS BLLK Softail Springer (1989)

Harley Davidson
#oem кодцена
1
728
PLUG, frame side
1A
2770WA
SCREW, batt grd.
2
2882W
BOLT, 5/16-18 X 5/8 hex. hd. (Grade 5 steel)
5
3960W
BOLT, 5/16-24 X 1 hex. hd.(Grade 5 steel)
6
3974HW
BOLT, 5/16-24 X 3/4 hex. hd.(Grade 5 steel)
7
94605-98
SCREW 3/8-16 X 1 SOCKET BUTTON HD. (GRADE 8)
9
4961
BOLT, 3/4-16 X 1-5/8 hex. hd.(Grade 5 steel)
11
6702
WASHER, 5/16 X 11/16 X 1/16
12A
6701
WASHER, 3/8 X 13/16 X 1/16
13
6703
WASHER, 1/4 X 5/8 X 1 /16
15
7124
LOCKWASHER, 1/4 internal tooth
16
7142
LOCKWASHER, 3/4 internal tooth
18
7230
LOCKWASHER, 1/4 external tooth
20
7689W
JAM NUT
21
7736
ACORN NUT, 5/16-24 X 19/32 X 1/2 hex.
24
7778
LOCKNUT, 3/8-16 X 7/16 X 9/16 hex.
24A
7782
FLANGE NUT (5 - 1987 & 1988)
25
7783
NUT, 3/8-16 X 5/16 X 9/16 hex.(Grade 2 steel)
26
8108
SPEED NUT, 11/32 dia.
27
9076
BEARING, rear fork pivot
28
11158
RETAINING RING, fork bearing
30
11451
Подушка
30A
11456
Амортизатор ударов
31
47573-89B
REAR FORK W/ 25 & 27
32
43283-86
SPACER, rear fork pivot
33
47008-89B
Рама
34
47577-86
SPACER, rear axle adj.
35
47579-93
ADJUSTING SCREW REAR AXLE
36
47698-86B
TRANSMISSION MOUNTING PLATE
37
48315-60
BEARING CUP
38
50005-85A
SPRING, jiffy stand leg
40
50015-74A
LEG STOP
41
50018-85
LEG BRACKET (chrome)
42
50028-91
BRACKET SPRING (CHROME)
43
50087-89B
LEG JIFFY STAND (CHROME)
45
59258-88
REFLECTOR (amber) (ST L88*-BL)
46
60363-86C
REAR FENDER EXTENSION
47
62123-66A
Амортизатор ударов
33
48130-89B
FRAME (HDI)
50025-84
(HDI Only) SPRING, jiffy stand - inner
50027-84
(HDI Only) SPRING, jiffy stand - outer
50034-84
(HDI Only) BRACKET, jiffy stand
