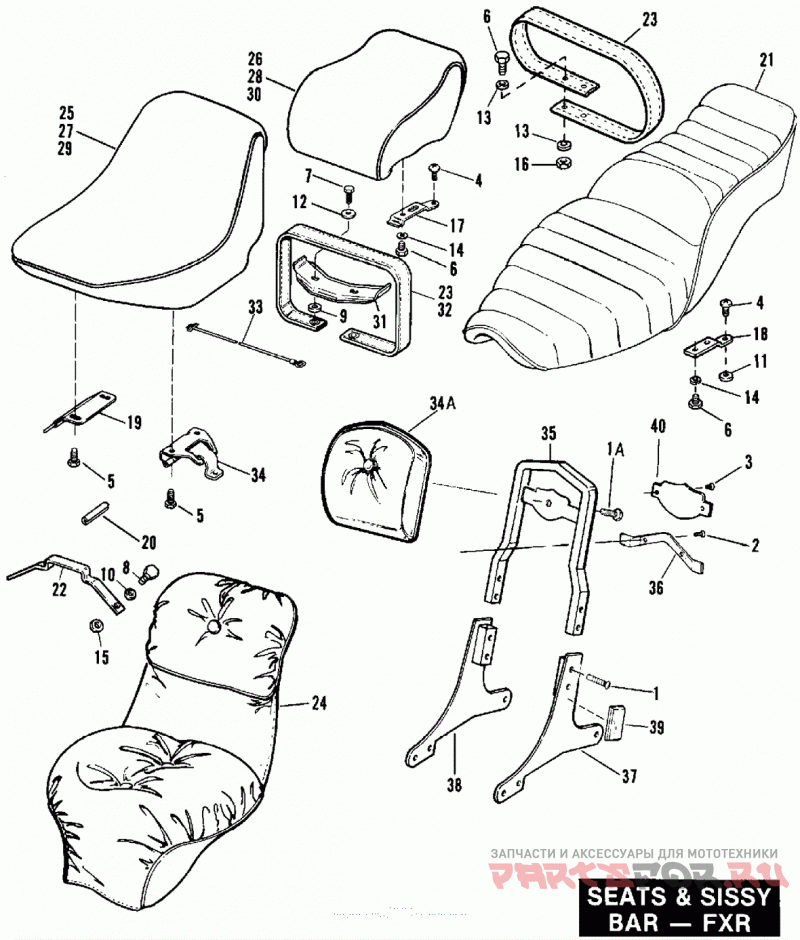

SEATS & SISSY BAR - FXR MODELS

Harley Davidson FXRS CONV EMLK FXR Convertible (1989)

Harley Davidson
#oem кодцена
1
919
SCREW, 1/4-28 X 3/4 hex socket button hd. (gr. 8)
1A
1602
SCREW, 1/4-20 X 3/4flat hd. (Grade 2 steel)
2
2607
SCREW, 1/4-20 X 3/4 mach pan head (grade 2)
3
2711
SCREW, No. 4-40 X 3/8 pan hd. (self-tapping)
4
2739
SCREW, 1/4-28 X 1/2 Phillips truss hd. (w/lockwasher)(chrome)
5
3487
BOLT, 5/16-24 X 5/8 hex. locking hd.
6
3767B
BOLT, 1/4-20 X 5/8 hex. hd.(Grade 5 steel)
7
3960W
BOLT, 5/16-24 X 1 hex. hd.(Grade 5 steel)
9
5724
Проставка
12
6645
WASHER, 11/32 X 1-1/32 X 1/8
14
7036
LOCKWASHER, 1/4
17
51651-79A
BRACKET rear seat
19
52020-82
BRACKET ASSY.
20
52041-82
PIN, seat hinge
29
52138-82B
SEAT pillow look, front (black vinyl)
30
52139-82A
SEAT pillow look, rear (black vinyl)
31
52141-82
BRACKET, passenger strap
34A
52545-84
BACKREST KIT w/#1A & 36 (FXR L89*-EM)
35
52739-83
SISSY BAR KIT w/#1 (FXR L89*-EM)
36
52771-82
BRACKET, backrest (FXR L89*-EM)
37
52797-87
SIDE PLATE, left
38
52798-87
SIDE PLATE, right
39
59267-83A
REFLECTOR (red)
40
99013-82
MEDALLION
39
59270-84A
(HDI Only) REFLECTOR (amber)
