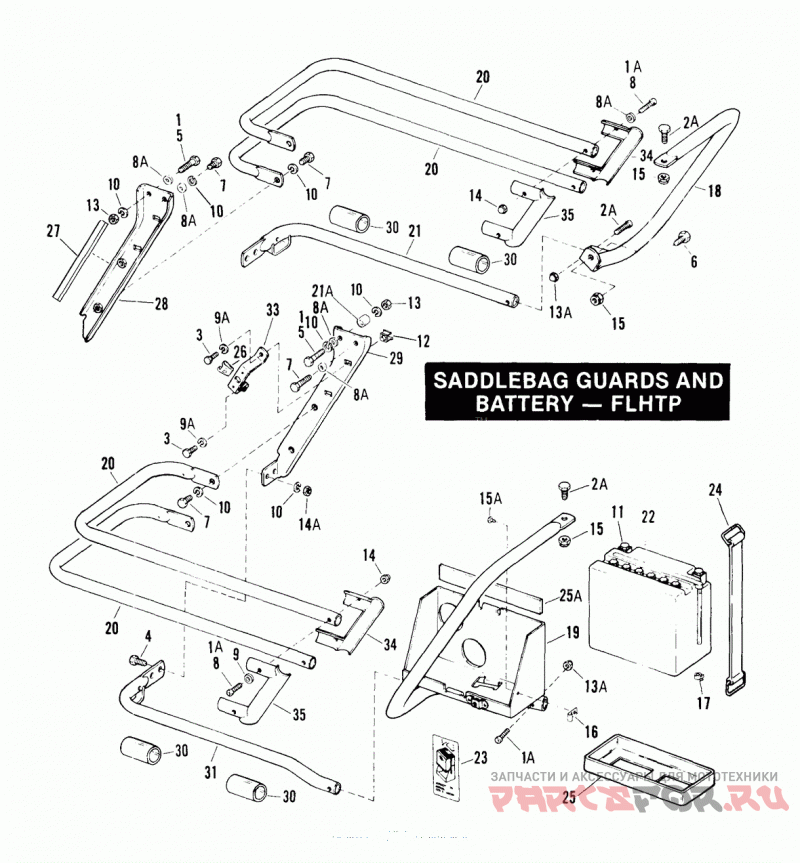

SADDLEBAGS GUARDS AND BATTERY - FLHTP

Harley Davidson FXRP EFLK Police Low Rider (1989)

Harley Davidson
#oem кодцена
1
2818
BOLT, 5/16-18 X 1-1/2 hex. hd. (Grade 5 steel) | Late 85 to * - FLHTP
1A
2841W
SCREW (3 - 85 & Later) | Late 84 to * - FLHTP
?2
2882W
BOLT, 5/16-18 X 5/8 hex. hd. (Grade 5 steel) | 90 to * - FLHTP
2A
2889
BOLT | Late 84 to * - FLHTP
3
3765
BOLT, 1/4-28 X 5/8 hex. hd.(Grade 5 steel) | Late 84 to * - FLHTP
4
3974HW
BOLT, 5/16-24 X 3/4 hex. hd.(Grade 5 steel) | Late 84 to * - FLHTP
5
4036
BOLT, 5/16-24 X 1-1/2 hex. hd.(Grade 5 steel) | Late 84 & Early 85 - FLHTP
6
4319
BOLT, 3/8-24 X 1 hex. hd.(Grade 5 steel) | Late 84 to * - FLHTP
7
4391
BOLT, 5/16-24 X 5/8 hex. hd. (Grade 5 steel) | Late 84 to * - FLHTP
8
4800
SCREW | 85 to * - FLHTP
8A
6702
WASHER, 5/16 X 11/16 X 1/16 | 86 to * - FLHTP
9
6703
WASHER, 1/4 X 5/8 X 1 /16 | 85 to * - FLHTP
9A
7036
LOCKWASHER, 1/4 | Late 84 to * - FLHTP
10
7041
LOCKWASHER, 5/16 | Late 84 to * - FLHTP
11
7229W
LOCKWASHER, 1/4 internal/external tooth | Late 84 to * - FLHTP
?12A
7490
CLIP NUT | Late 84 to * - FLHTP
13
7531
FLANGE LOCKNUT, 5/16-18 X 9/32 X 1/2 hex. | 86 to * - FLHTP
13A
7683
LOCKNUT, 1/4-28 X 5/16 X 7/16 hex. | Late 84 to * - FLHTP
7737W
ACORN NUT | 85 to * - FLHTP
14
7753
NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel) | Late 84 to * - FLHTP
15
7776W
LOCKNUT | Late 84 to * - FLHTP
15A
8672
RIVET | 85 to * - FLHTP
17
10067
CLAMP, vent hose | Late 84 to * - FLHTP
19
49188-79A
GUARD, right, with battery support | Late 84 to * - FLHTP
20
49193-79
GUARD, saddlebags | Late 84 to * - FLHTP
21
49194-79A
SUPPORT, saddlebag - left | Late 84 & Early 85 - FLHTP
49194-85
SUPPORT, saddlebag -left | Late 85 to * - FLHTP
21A
59059-86
SPACER | 86 to * - FLHTP
22
66010-82B
BATTERY w/ 7 & 9 | Late 84 to * - FLHTP
23
66014-79
DECAL, battery installation | Late 84 to 89 - FLHTP
24
66105-77
STRAP, battery | Late 84 to * - FLHTP
25
66106-86
PAD, battery | 86 to * - FLHTP
25A
66308-80
PAD, battery | 86 to * - FLHTP
26
70908-82
RECEPTACLE | Late 84 to * - FLHTP
27
90594-85A
CUSHION | 85 to * - FLHTP
28
90718-79C
SUPPORT BRACKET left | Late 84 to * - FLHTP
29
90720-79C
SUPPORT BRACKET right | Late 84 to * - FLHTP
30
90764-83
PAD, saddlebag mounting | Late 84 to * - FLHTP
31
90781-79A
SUPPORT, saddlebag - right | Late 84 & Early 85 - FLHTP
90781-85
SUPPORT, saddlebag - right | Late 85 to * - FLHTP
33
90801-83
BRACKET, saddlebag mounting | Late 84 to * - FLHTP
90839-83
SADDLEBAG GUARD KIT w/items 20, 34 & 35 | Late 84 to * - FLHTP
34
90940-79
CLAMP, saddlebag guard - left | Late 84 to * - FLHTP
35
90941-79
CLAMP, saddlebag guard - right | Late 84 to * - FLHTP
