SIDECAR - UNIQUE PARTS - ULTRA для мотоциклов Harley Davidson FLTCU DMLK Touring Tour Glide Classic Ultra (1989) (1989)

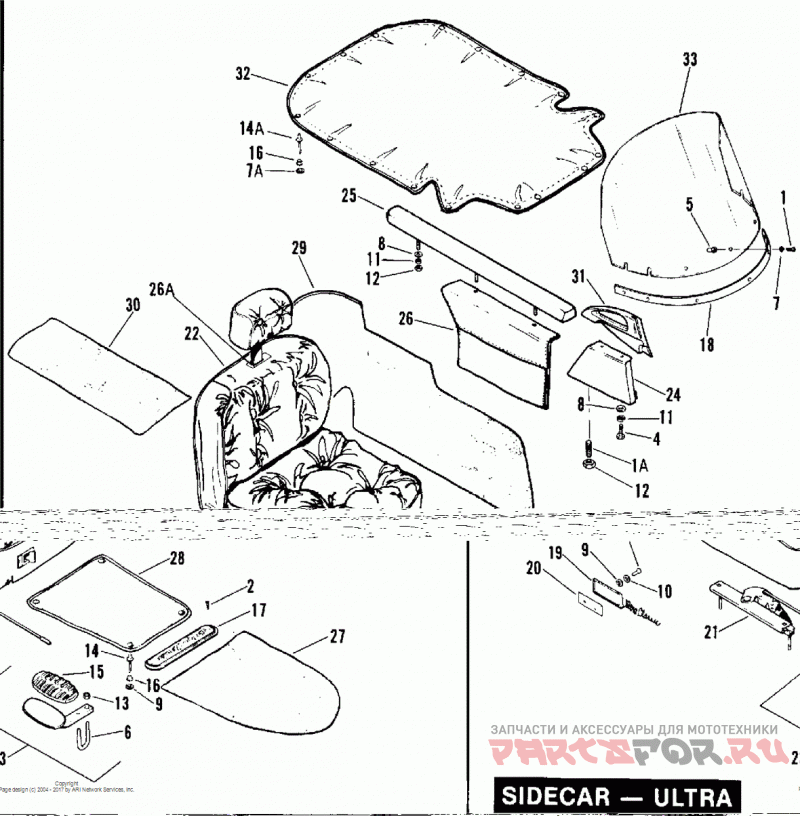

SIDECAR - UNIQUE PARTS - ULTRA

Harley Davidson FLTCU DMLK Touring Tour Glide Classic Ultra (1989)

oem код

название

цена

933

SCREW, No. 10-32 X 15/16 Pozidriv truss hd. (Grade 2 steel)

2568

SCREW, wood

2803W

Винт

3787

BOLT, 1/4-20 X 3/4 hex. hd. (grade 5 steel)

5207

WELL NUT

5252

U-BOLT N/A

6053

WASHER, 13/64 X 7/16 X 1/16 nylon (black)

6703

WASHER, 1/4 X 5/8 X 1 /16

6716

WASHER, No. 10 X 1/2 X 3/64

6717

WASHER, No. 6 X 3/8 X 3/64

7036

LOCKWASHER, 1/4

7688

NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel)

7739

LOCKNUT, 5/16-18 X 11/32 X 1/2 hex.

8316

POP RIVET (21, 5 - 1990 & Later)

36756-89

CABLE, seat recline (not illustrated) (FLT E89-KX)

36760-89

CABLE, seat recline (not illustrated) (FLT L89*-KX)

36964-67

PAD, sidecar step

47076-72

SNAP BASE

58378-89

NAMEPLATE, footrest in.Harley-Davidsonin.

58717-79

FOAM TAPE, windshield

59245-90

NAMEPLATE, fender

59263-79

REFLECTOR, fender (red)

SEAT SLIDE, right

SEAT SLIDE, left

SEAT ASSEMBLY

SIDECAR STEP KIT w/6, 13 & 15

88494-89

KNEE BOLSTER, right

88495-89

KNEE BOLSTER, left

88496-89A

ARM REST CUSHION right

88497-89

ARM REST CUSHION, left

88500-89

MAP POCKET, right

88501-89

MAP POCKET, left

26A

88506-89

INSERT, headrest

88540-89

CARPET, front

88541-89

CARPET, floor w/snaps

CARPET, side - left

CARPET, side - right

CARPET, rear

HANDHOLD left

HANDHOLD right

COVER sidecar body (black)

88865-89

WINDSHIELD, only
