Винт

Винт

SCREW, 1/4-20 X 1/2 Pozidriv pan hd. (Grade 2 steel)

SCREW, 1/4-20 X 5/8 mach. screw pan hd.

SCREW, No. 10-32 X 1/4 slot hex washer hd. (self-tapping)

BOLT, 5/16-18 X 5 hex. hd.(Grade 5 steel)

WASHER, 5/16 X 11/16 X 1/8

WASHER, 5/16 X 11/16 X 1/16

LOCKWASHER, 1/4

LOCKWASHER, No. 10

LOCKWASHER, 5/16 external tooth

NUT, No. 10-32 X 1/8 X 3/8 hex.(Grade 2 steel)

LOCKNUT, 5/16-18 X 11/32 X 1/2 hex.

SPEED NUT

Зажим

Зажим

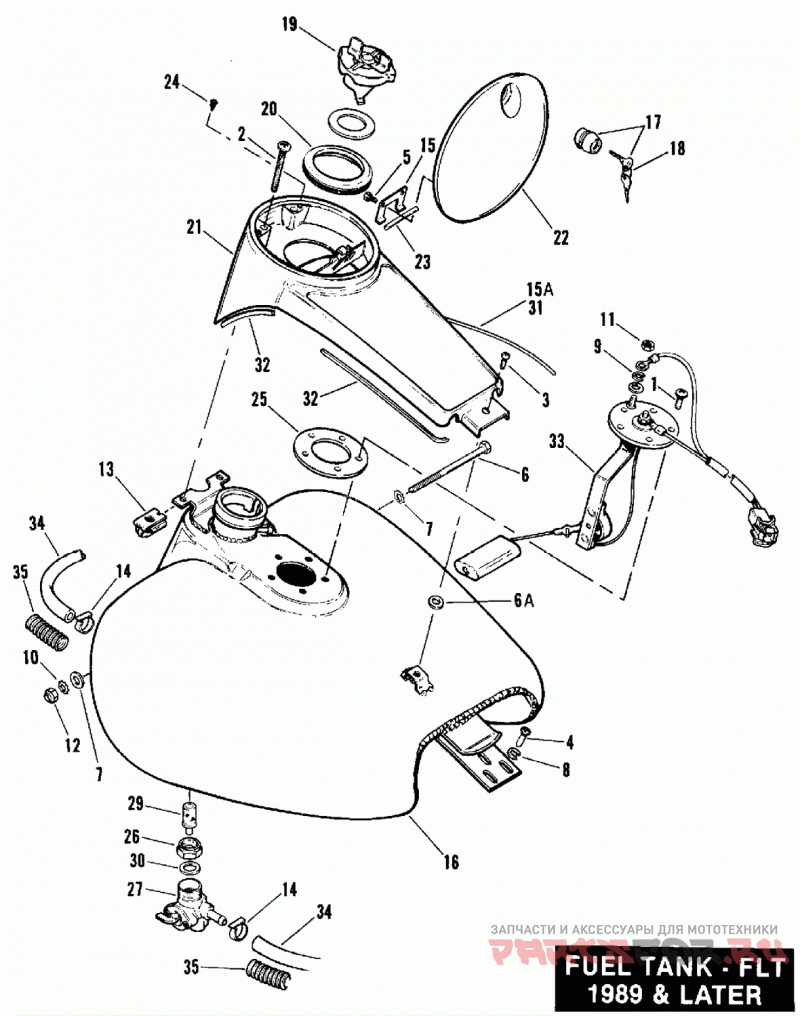

FUEL TANK KIT (prime)

LOCK, door w/keys

Крышка заливной горловины

чехол

Консоль

DOOR console

PIN, door hinge

BUMPER, cover

GASKET sending unit

FUEL VALVE BODY

FILTER fuel valve

HOSE, overflow

MOLDING rubber

SENDING UNIT

HOSE 1/4 I.D. (25 ft. long) (black) | NOTE: Hose or Insulator is sold in bulk length. Cut to required length.

INSULATOR, 5/8in. I.D. (nylon) (8 ft. lg.) - Hose or insulator is sold in bulk length. Cut to required length. | NOTE: Hose or Insulator is sold in bulk length. Cut to required length.
