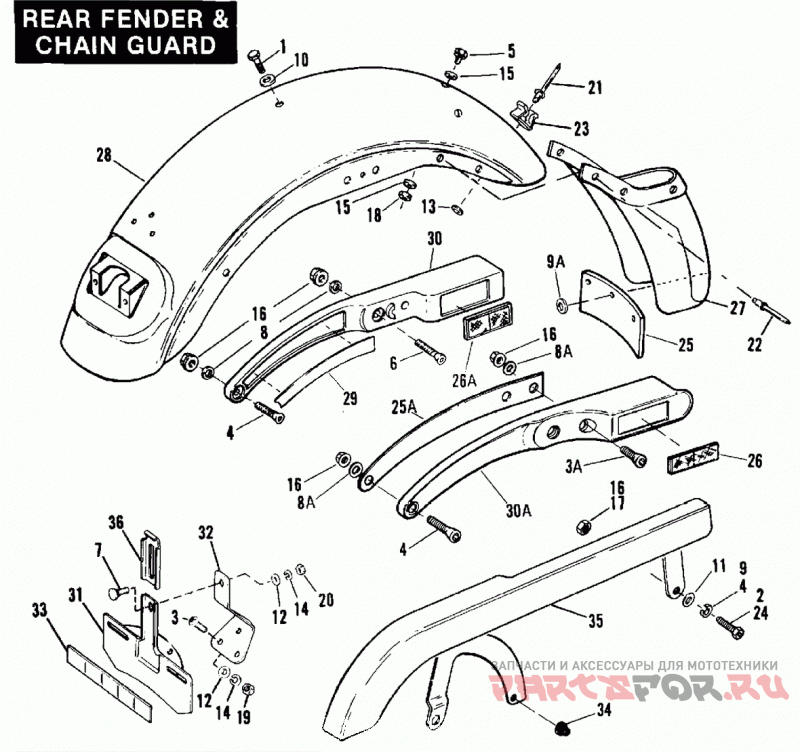

REAR FENDER AND CHAIN GUARD

Harley Davidson XLH883DLX CFMJ Sportster 883 Deluxe (1988)

Harley Davidson
#oem кодцена
1
2739
SCREW, 1/4-28 X 1/2 Phillips truss hd. (w/lockwasher)(chrome)
2
2879W
BOLT, 3/8-16 X 1 hex. hd. (Grade 5 steel)
3
2774
SCREW, 1/4-20 X 5/8 mach. screw pan hd.
3A
4816A
SCREW, 5/16-18 X 1-1/2 socket hd.
4
3670
SCREW | NOTE: Incorrectly pictured with reference number 9. Please see reference numbers 2 and 24.
5
3767B
BOLT, 1/4-20 X 5/8 hex. hd.(Grade 5 steel)
6
3894
SCREW, FLAT HEAD, 5/16-18 X 1 1/4
4020W
BOLT, 5/16-24 X 1-3/8 hex. hd.(Grade 5 steel)
7
5403B
CARRIAGE BOLT, 1/4-20 X 3/8
8
6026
WASHER, 3/8 X 7/8 X 7/64
9A
6192
WASHER, No. 8 X 7/16 X 3/64
9A
6330
WASHER, 5/16 X 11/16 X 3/32
9A
6333
WASHER, 3/8 X 7/8 X 5/64
10
6410
WASHER, 1/4 X 9/16 X 1/16 (nylon)
11
6701
WASHER, 3/8 X 13/16 X 1/16
11
6702
WASHER, 5/16 X 11/16 X 1/16
12
6703
WASHER, 1/4 X 5/8 X 1 /16
13
6717
WASHER, No. 6 X 3/8 X 3/64
14
7036
LOCKWASHER, 1/4
15
7230
LOCKWASHER, 1/4 external tooth
16
7531
FLANGE LOCKNUT, 5/16-18 X 9/32 X 1/2 hex.
17
7667
NUT, 3/8-16 X 9/32 X 9/16 hex. (w/nylon insert)
18
7686
LOCKNUT, 1/4-20 X 5/16 X 7/16 hex.
19
7688
NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel)
20
7689W
Гайка
7736
ACORN NUT, 5/16-24 X 19/32 X 1/2 hex.
21
8483A
заклёпка
23
9952
Зажим
29274-93
MOLDING
25
59594-82C
REAR FENDER EXTENSION
59256-84
REFLECTOR (HDI only)
26A
59263-79
REFLECTOR (red)
27
59594-82C
REAR FENDER EXTENSION
28
59674-81C
REAR FENDER (PRIME)
59710-84
INSERT, fender support (HDI only)
29
59826-86
INSERT, left
29
59936-86
INSERT, right
30
59950-81
SUPPORT, rear fender - left
30
59951-81
SUPPORT, rear fender - right
31
59984-73
Кронштейн номерного знака
32
59986-75
SUPPORT, license plate bracket
33
59988-72A
Отражатель Красный
35
60365-87
CHAIN GUARD (87 - HUGGER; 88 & Early 89 - All Models )
36
60001-55
CLAMP, license plate bracket
68562-84
CLAMP (HDI only)
