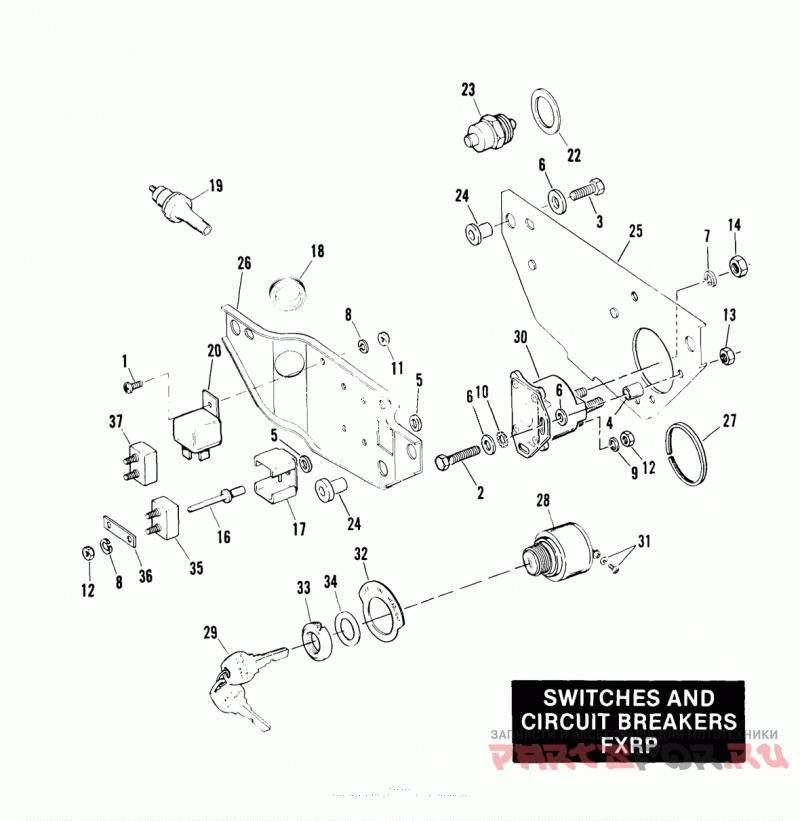

SWITCHES AND CIRCUIT BREAKERS - FXRP

Harley Davidson FXRP EFLJ Police Low Rider (1988)

Harley Davidson
#oem кодцена
1
2592
SCREW, No. 10-24 X 1/2 Pozidriv pan hd. (Grade 2 steel) | Late 84 to 86 - FXRP
2
2872W
SCREW, 1/4-20 X 1-1/2 hex cap (grade 5) | Late 84 & Early 85 - FXRP
3
3787
BOLT, 1/4-20 X 3/4 hex. hd. (grade 5 steel) | Late 84 to * - FXRP
4
5733
SPACER | Late 84 & Early 85 - FXRP
5
6192
WASHER, No. 8 X 7/16 X 3/64 | 85 to * - FXRP
6
6703
WASHER, 1/4 X 5/8 X 1 /16 | Late 84 & Early 85 - FXRP
7
7041
LOCKWASHER, 5/16 | Late 84 & Early 85 - FXRP
8
7069
LOCKWASHER, No. 10 | Late 84 to * - FXRP
9
7220
LOCKWASHER, No. 10 external tooth | Late 84 & Early 85 - FXRP
10
7229W
LOCKWASHER, 1/4 internal/external tooth | Late 84 & Early 85 - FXRP
11
7620W
NUT, No. 10-24 X 1/8 X 3/8 hex.(Grade 2 steel) | Late 84 to 86 - FXRP
12
7638
NUT, No. 10-32 X 1/8 X 3/8 hex.(Grade 2 steel) | Late 84 & Early 85 - FXRP
13
7742
LOCKNUT, 1/4-20 X 7/32 X 7/16 hex. | Late 84 & Early 85 - FXRP
14
7748W
NUT, 5/16-18 X 1/4 X 1/2 hex.(Grade 2 steel) | Late 84 & Early 85 - FXRP
16
8519
RIVET | 85 to * - FXRP
8672
RIVET | Late 84 to * - FXRP
17
9952
CLIP, circuit breaker | Late 84 to * - FXRP
18
11440
GROMMET | Late 84 to * - FXRP
19
26561-84
OIL PRESSURE SWITCH | Late 84 to * - FXRP
20
31506-79C
STARTER RELAY (early model year) | Late 84 to * - FXRP
22
33043-80
WASHER, neutral indicator switch | Late 84 to * - FXRP
23
33900-59C
SWITCH, neutral indicator | Late 84 to * - FXRP
24
6596
WELL NUT | Late 84 to * - FXRP
25
70970-91
IGNITION PANEL | Late 84 to * - FXRP
26
70973-82A
ELECTRICAL PANEL | Late 84 & 85 - FXRP
70979-86
ELECTRICAL PANEL | 86 to * - FXRP
27
70974-84
SEAL, starter relay | Late 84 & 85 - FXRP
28
71441-94
IGNITION SWITCH w/ 21, 23 & 24 | Late 84 to * - FXRP
30
71463-73A
STARTER RELAY | Late 84 & Early 85 - FXRP
31
45790-80
DRAIN SCREW, w/ washer | Late 84 & Early 85 - FXRP
32
71550-75
LABEL, ignition | 85 to * - FXRP
71551-84
LABEL, ignition | Late 84 - FXRP
33
71552-75
FACE NUT, ignition and light switch | Late 84 to * - FXRP
34
71554-75
WASHER, ignition and light switch | Late 84 to * - FXRP
35
74589-73
CIRCUIT BREAKER | Late 84 to * - FXRP
36
74598-73
CONNECTOR BAR, circuit breaker | Late 84 to * - FXRP
37
74599-77B
CIRCUIT BREAKER, 30 amp. | Late 84 to * - FXRP
