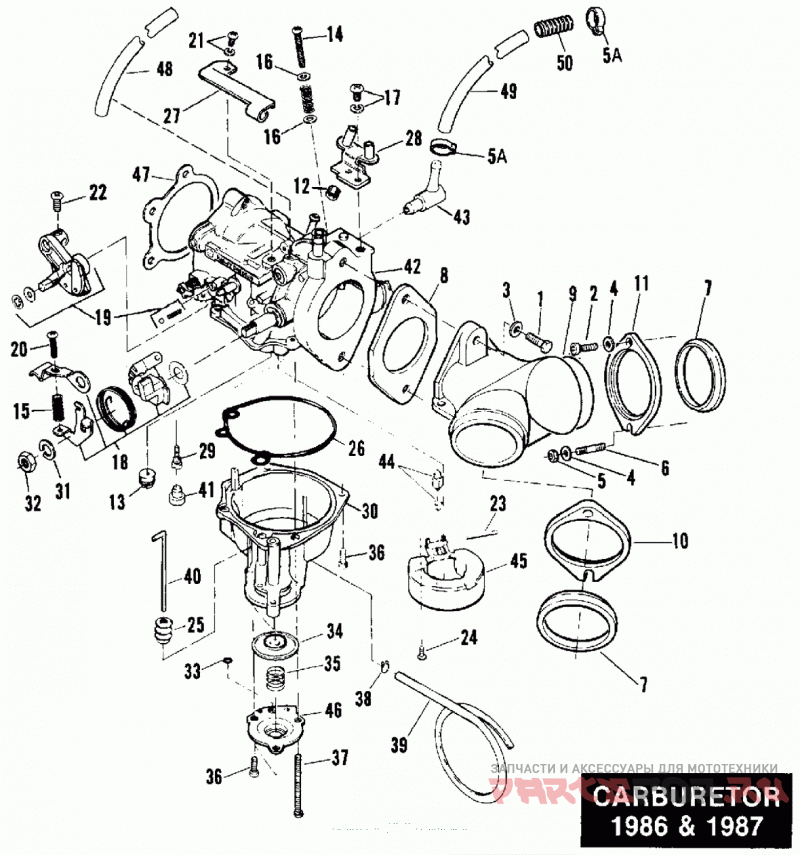

BOLT, 5/16-18 X 1-1/4 hex. hd. (Grade 5 steel)

BOLT, 5/16-18 X 7/8 hex. hd.

WASHER, 11/32 X 11/16 X 1/16

WASHER, 21/64 X 33/64 X 1/16

NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)

Зажим

STUD, upper

SEAL, intake manifold

INSULATING SPACER

INTAKE MANIFOLD

FLANGE, mounting - front

FLANGE, mounting -rear

CAP, evaporative port

MAIN JET, 1.50mm

Винт

SPRING, throttle stop & fast idle screws

WASHER, throttle stop screw

SCREW WITH WASHER, throttle cable bracket

LEVER KIT, accelerator pump

CHOKE LEVER KIT

SCREW, fast idle

SCREW WITH WASHER, choke cable bracket

SCREW, wire block

Палец

SCREW, float pin

RUBBER CAP, accelerator pump

O-RING, bowl

BRACKET, choke cable

BRACKET, throttle cable

LOW SPEED JET, 0.52ram

BOWL (B83H)

LOCKWASHER, throttle lever

NUT, throttle lever

Уплотнительное кольцо

Диафрагмма

Пружина

Винт

Винт

CLIP, overflow hose

HOSE, overflow

ROD, accelerator pump

PLUG, low speed jet

CARBURETOR (B83H)

Фитинг

VALVE, with clip

Поплавок

HOUSING, accelerator pump

GASKET, air cleaner to carburetor

HOSE, 3/16 I.D. x 3/8 O.D. reinforced rubber (10 ft. lg.) | NOTE: Hose is sold in bulk length. Cut to required length.

HOSE 1/4 I.D. (25 ft. long) (black) | NOTE: Hose is sold in bulk length. Cut to required length.

INSULATOR, 5/8in. I.D. (nylon) (8 ft. lg.) - Hose or insulator is sold in bulk length. Cut to required length. | NOTE: Hose is sold in bulk length. Cut to required length.
