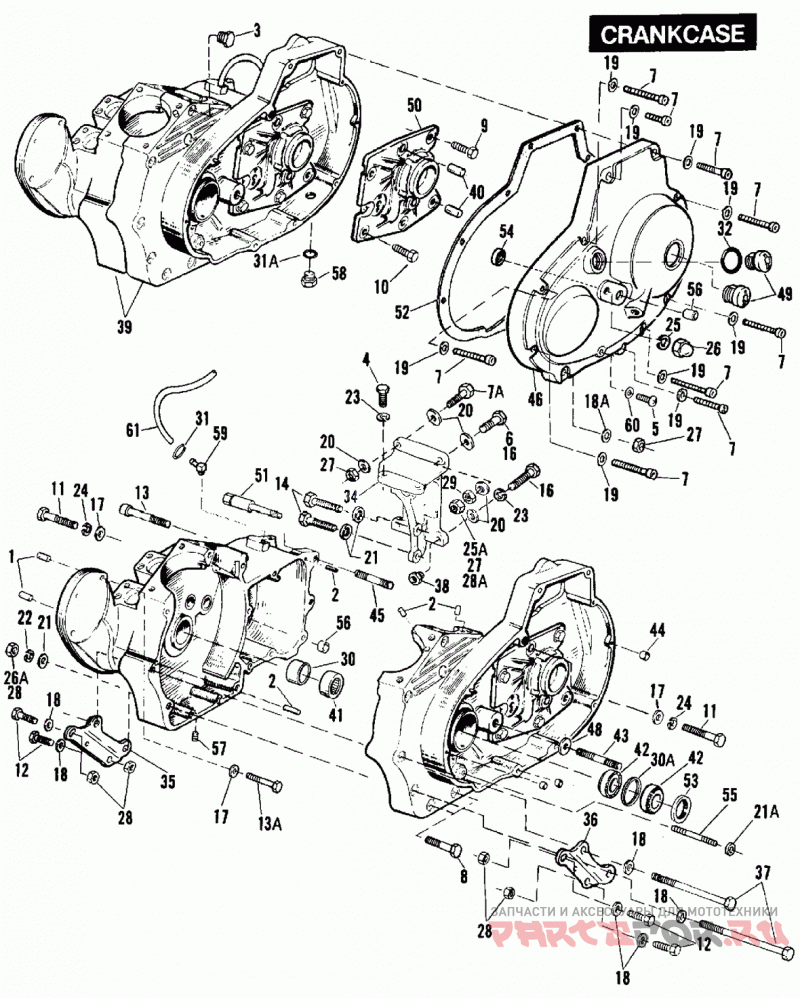

Картер двигателя

Harley Davidson XL883HUG CEMH Sportster 883 Hugger (1987)

Harley Davidson
#oem кодцена
1
215
Палец
2
358
Палец
3
720
Заглушка
4
2879W
BOLT, 3/8-16 X 1 hex. hd. (Grade 5 steel)
5
2423
Винт
6
3455
Болт
7
891
SCREW, 1/4-20 X 1-3/4 socket hd. (Grade 8 steel)
7A
3512
BOLT, 3/8-24 X 3-1/4 hex. hd. (chrome)
8
3768
Болт
9
3987
BOLT, 5/16-18 X 3/4 hex. hd.(Grade 5 steel)
10
3991
BOLT, 5/16-18 X 7/8 hex. hd.(Grade 5 steel)
11
4086A
BOLT, 5/16-18 X 3 hex. hd.(Grade 5 steel)
12
4319
BOLT, 3/8-24 X 1 hex. hd.(Grade 5 steel)
13
4340
Винт
13A
4392
Болт
14
4420
BOLT, 3/8-16 X 2-3/4 hex. hd.(Grade 5 steel
16
4435W
BOLT, 3/8-24 X 3-1/2 hex. hd.(Grade 5 steel)
17
6016
WASHER, 11/32 X 11/16 X 1/16
18
6019
WASHER, 3/8 X 29/32 X 1/16
18A
6033
Шайба
19
6099
WASHER, 1/4 X 7/16 X 1/16
20
6701
WASHER, 3/8 X 13/16 X 1/16
21
6736
WASHER, 9/32 X 5/8 X 1/16
21A
6812
WASHER, 13/32 X 11/16 X 1/16
22
7036
LOCKWASHER, 1/4
23
7038
LOCKWASHER, 3/8
24
7041
LOCKWASHER, 5/16
25
7068
LOCKWASHER,1/2
25A
7506
LOCKNUT, No. 3/8-24 X 1/4 hex.(Grade 2 steel)
26
7626W
LOCKNUT, 3/16-32 (nylon) (Grade 6)
27
7775
LOCKNUT, 3/8-24 X 7/16 X 9/16 hex.
28
7780
LOCKNUT,flange 3/8-24 X 13/32 X 11/16 hex.
29
7800W
NUT, 3/8-24 X 5/16 X 9/16 hex.(Grade 2 steel)
30
8881
BEARING RACE
30A
9142
SHIM, roller bearing 0.100
30A
9143
SHIM, roller bearing 0.102
30A
9144
SHIM, roller bearing 0.104
30A
9145
SHIM, roller bearing 0.106
30A
9146
SHIM, roller bearing 0.108
30A
9147
SHIM, roller bearing 0.110
30A
9148
SHIM, roller bearing 0.112
30A
9149
SHIM, roller bearing 0.114
30A
9155
SHIM, roller bearing 0.098
31
10080
Зажим
31A
11105
Уплотнительное кольцо
32
11139
Уплотнительное кольцо
34
16203-82A
MOUNTING BRACKET, engine - rear
35
16210-84A
PLATE, front engine mounting - lower right
36
16212-84
PLATE, front engine mounting - lower left
37
16235-52A
Болт
38
16240-82
Втулка
39
24470-87A
CRANKCASE SET, XL
40
24578-57
Палец
41
24647-87
BEARING, gear shaft (blue)
41
24650-87
BEARING, gear shaft (red)
41
24659-87
BEARING, gear shaft (white/grey)
41
24660-87
BEARING, gear shaft (green)
42
24729-74
Роликовый подшипник
43
24752-86
Шпилька
45
24825-82
Шпилька
46
25430-86A
CHAIN COVER (polished)
48
34624-77
Прокладка
49
34742-86
CAP, chain cover
49
34745-87
CAP, chain cover (chrome)
50
34853-86
ACCESS COVER, transmission
51
34886-86A
STUD, footrest mounting
52
34955-75
GASKET, chain cover
53
35151-74A
Сальник
54
11000101
Сальник
55
40018-86
STUD, chain tensioner
56
40520-63
BUSHING,
57
45830-48
Заглушка
58
60348-65B
Магнитная Пробка
59
63547-86
Фитинг
60
63858-49
Прокладка
61
63501-68B
HOSE 1/4 I.D. (25 ft. long) (black) | NOTE: Hose is sold in bulk length. Cut to required length.
